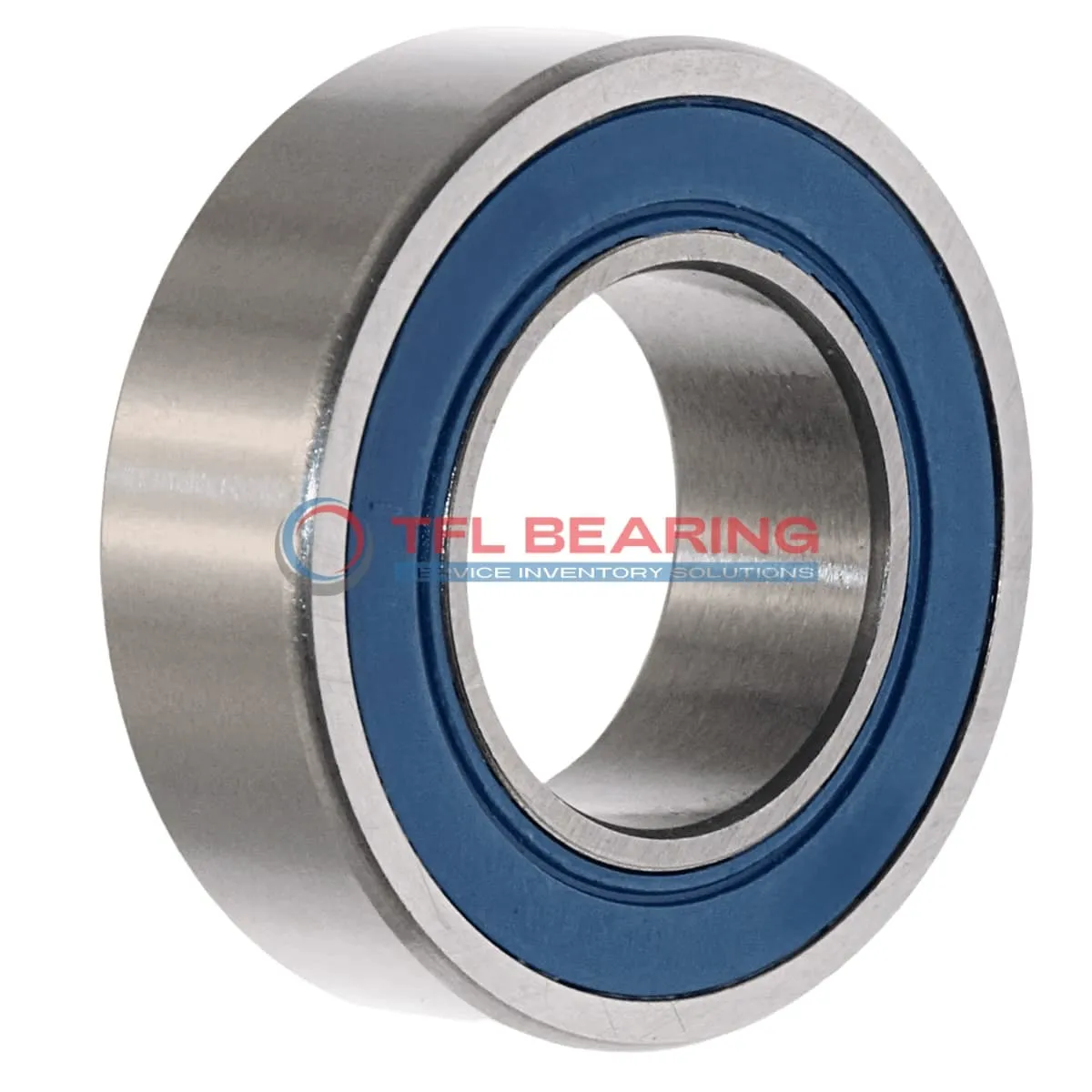

Single Row Deep Groove Ball Bearings 6210-2RS1/MT33F7VE391

Single Row Deep Groove Ball Bearings 6210-2RS1/MT33F7VE391

The 6210-2RS1/MT33F7VE391 is a single-row deep groove ball bearing with a 50mm bore and 90mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 7891 lbf and operates smoothly at speeds up to 7100 RPM.

Sealed on both sides, it keeps dirt out and grease in, making it low-maintenance. The chrome steel cage adds durability, ensuring reliable performance over time. Suitable for temperatures from -30°C to 120°C.

This bearing is interchangeable with SKF models, offering a cost-effective alternative. Ideal for electric motors, pumps, or industrial gearboxes where radial loads are common.

Weighing 463g, it balances strength and lightness. Compliant with RoHS and REACH standards for safe use in various applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6210-2RS1/MT33F7VE391
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 50 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 90 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 20 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 7891 lbf
  • Static Radial Load 5238 lbf
  • Max Speed 7100 rpm
  • Weight 463 g
  • price（$） 13.311
Single Row Deep Groove Ball Bearings 6210-2RS1/MT33F7VE391 dimension drawing
Download DWG Download PDF

Features

How Is 6210-2RS1/MT33F7VE391 Bearing Engineered for Reliability?

6210-2RS1/MT33F7VE391 Bearing features a sealed design, protecting it from dust and moisture for consistent performance.

Its chrome steel construction ensures durability, handling dynamic radial loads up to 7891 lbf.

The bearing operates smoothly within a temperature range of -30°C to 120°C, making it versatile for various environments.

With a maximum speed of 7,100 rpm, it balances efficiency and long-term reliability.

Application

Industrial Uses of 6210-2RS1/MT33F7VE391 Bearing
6210-2RS1/MT33F7VE391 Bearing is commonly used in industrial machinery like pumps and electric motors, where its sealed design helps keep out contaminants. The chrome steel construction ensures durability in demanding environments.

Where Is 6210-2RS1/MT33F7VE391 Bearing Used?
You’ll often find 6210-2RS1/MT33F7VE391 Bearing in automotive applications such as alternators and wheel hubs. Its radial load capacity makes it reliable for handling the stresses of daily driving.

Perfect Fit for Automation: 6210-2RS1/MT33F7VE391 Bearing
6210-2RS1/MT33F7VE391 Bearing works well in robotic arms and conveyor systems, thanks to its smooth operation and sealed protection. The ABEC 1 tolerance ensures consistent performance in automated processes.

Light-Duty vs Heavy-Duty: Best Uses for 6210-2RS1/MT33F7VE391 Bearing
For light-duty tasks like household appliances, 6210-2RS1/MT33F7VE391 Bearing offers quiet and efficient performance. In heavier industrial settings, it handles radial loads reliably while maintaining longevity.

Medical vs Industrial: Where 6210-2RS1/MT33F7VE391 Bearing Excels
In medical devices, 6210-2RS1/MT33F7VE391 Bearing provides precise movement for equipment like lab centrifuges. Its sealed design is also useful in industrial settings where dust and moisture are concerns.
