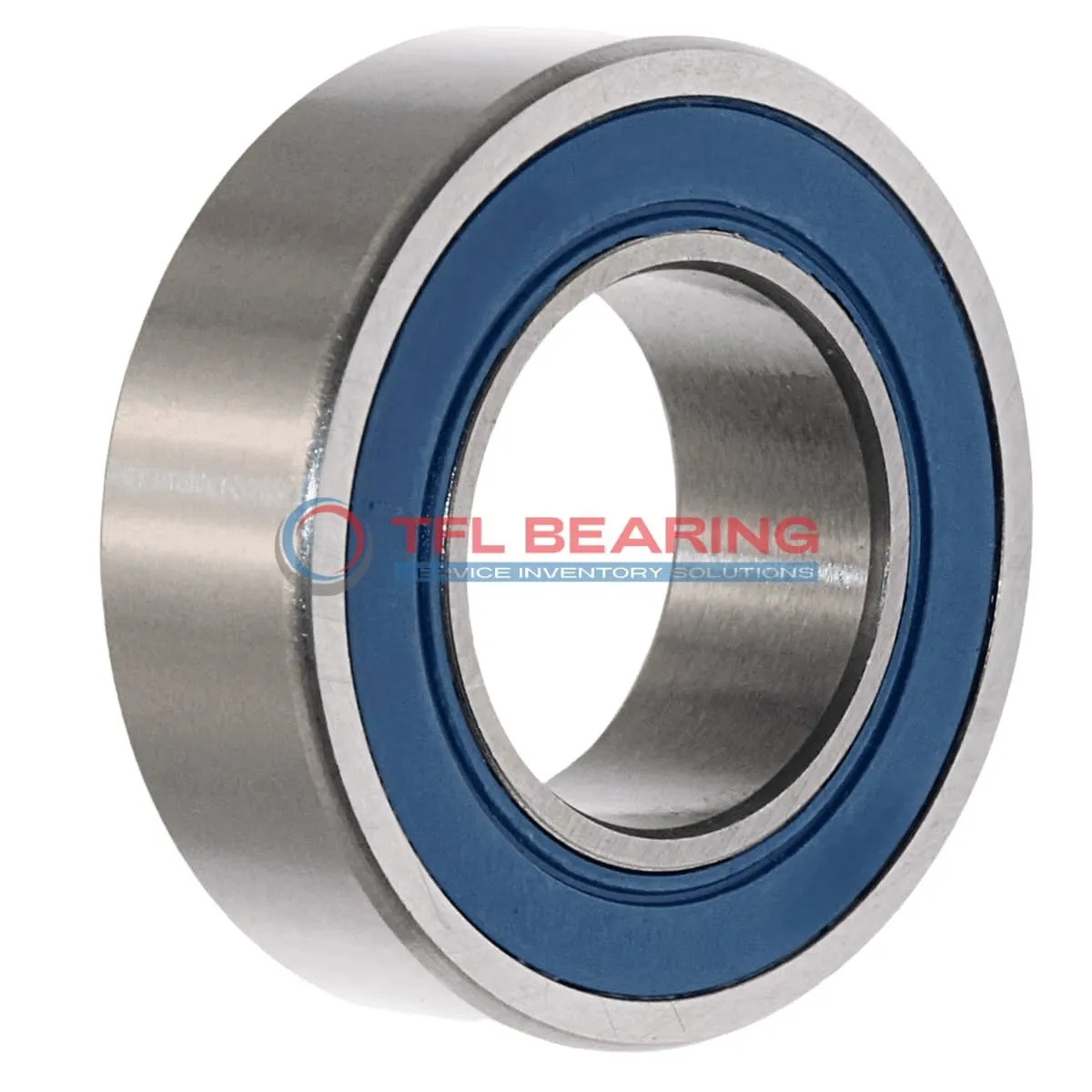

Single Row Deep Groove Ball Bearings 6210-2RS1/C3W64

The 6210-2RS1/C3W64 is a single-row deep groove ball bearing with a 50mm bore and 90mm outer diameter, crafted from sturdy chrome steel. It supports radial loads up to 7891 lbf and operates smoothly at speeds up to 7100 RPM.

Its sealed design keeps dirt out and solid oil lubrication ensures long service life without frequent maintenance. The bearing works reliably in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for electric motors, pumps, or industrial gearboxes where radial loads are common.

Weighing 463g, it’s a robust yet compact option for various machinery. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 6210-2RS1/C3W64
Brand TFL
Interchangeable SKF
System of Measurement Metric
For Load Direction Radial
Construction Single Row
Bearing Type Ball
Seal Type Sealed
Tolerance Class ABEC 1 | ISO P0
Radial Clearance Trade No C3
Bore Dia 50 mm
Bore Dia Tolerance -0.012mm to 0
Outer Dia 90 mm
Outer Dia Tolerance -0.015mm to 0
Width 20 mm
Width Tolerance -0.120mm to 0
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material Chrome Steel
Lubrication Soild Oil
ROHS Compliant
REACH Compliant
Temperature Range -30°to 120 °C
Dynamic Radial Load 7891 lbf
Static Radial Load 5238 lbf
Max Speed 7100 rpm
Weight 463 g
price（$） 21.393

Single Row Deep Groove Ball Bearings 6210-2RS1/C3W64 dimension drawing

Download DWG Download PDF

Features

Performance Features of 6210-2RS1/C3W64 Bearing

6210-2RS1/C3W64 Bearing is built with chrome steel rings and balls, offering strong radial load capacity.
Its dynamic radial load reaches 7891 lbf, making it suitable for demanding applications.

The sealed design and solid oil lubrication ensure long-lasting performance with minimal maintenance.
It operates smoothly in temperatures ranging from -30°C to 120°C.

With a maximum speed of 7,100 rpm, 6210-2RS1/C3W64 Bearing balances efficiency and durability.
The C3 radial clearance provides optimal performance under varying load conditions.

Application

Common Applications of 6210-2RS1/C3W64 Bearing
6210-2RS1/C3W64 Bearing is widely used in industrial machinery like pumps and electric motors, where its sealed design keeps contaminants out. The solid oil lubrication ensures long service life even in dusty environments.

In automotive applications, 6210-2RS1/C3W64 Bearing fits well in wheel hubs and alternators, thanks to its radial load capacity. The C3 clearance allows for thermal expansion, making it suitable for varying temperatures.

For home appliances, 6210-2RS1/C3W64 Bearing works smoothly in washing machines and fans. Its chrome steel construction provides quiet operation, which is ideal for household use.

In automation systems, 6210-2RS1/C3W64 Bearing supports conveyor belts and robotic arms. The sealed design reduces maintenance needs, making it a cost-effective choice for continuous operation.
