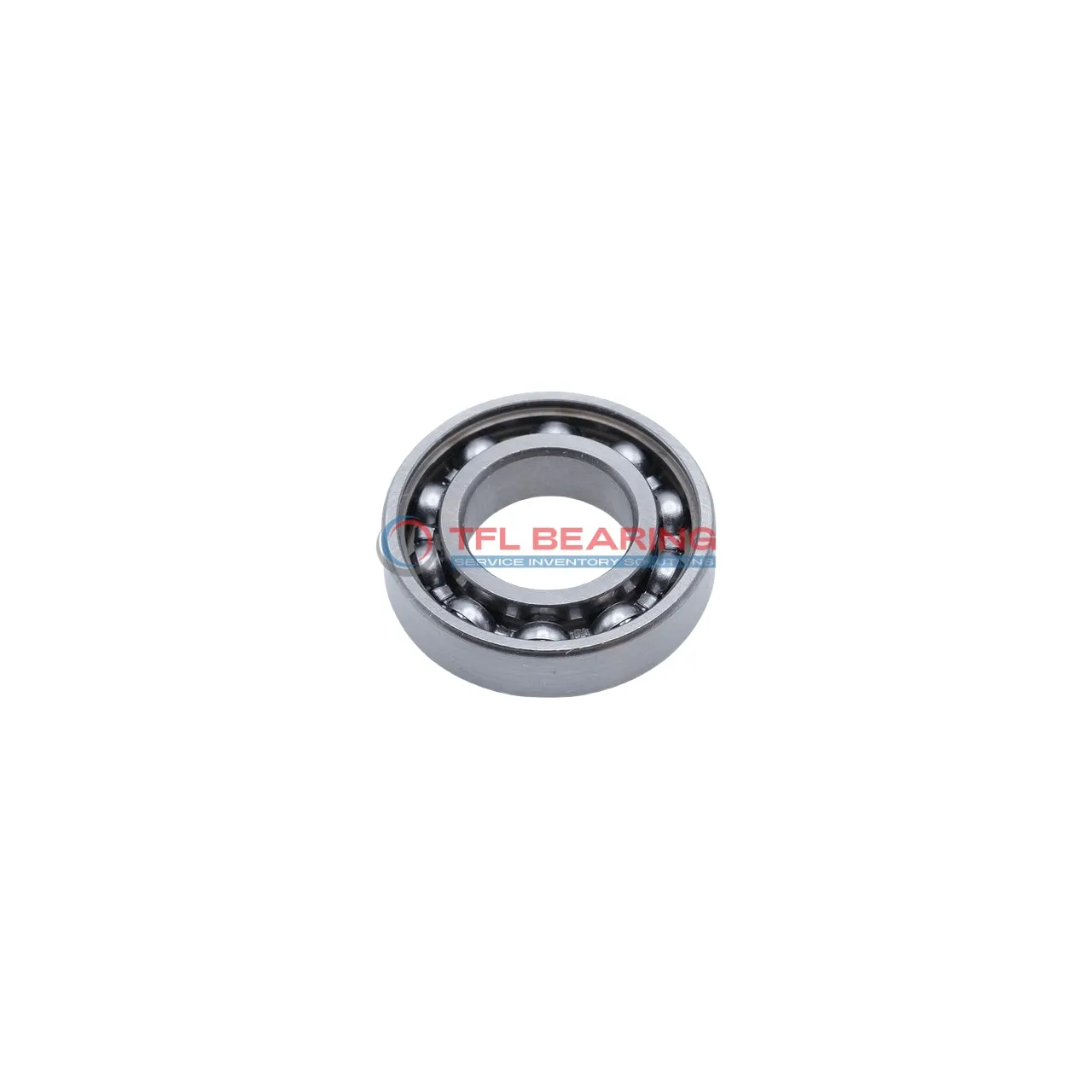

Single Row Deep Groove Ball Bearings 6209 Y/C782

Single Row Deep Groove Ball Bearings 6209 Y/C782

The 6209 Y/C782 is a single-row deep groove ball bearing with a 45mm bore and 85mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 7351 lbf and operates smoothly at speeds up to 7700 RPM.

Its open design allows for easy lubrication, while the chrome steel cage ensures durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a cost-effective alternative for replacements. Perfect for applications like electric motors or pumps where radial loads are predominant.

Weighing 407g, it strikes a balance between strength and lightness. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6209 Y/C782
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 45 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 85 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 19 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 7351 lbf
  • Static Radial Load 4564 lbf
  • Max Speed 7700 rpm
  • Weight 407 g
  • price（$） 66.051
Single Row Deep Groove Ball Bearings 6209 Y/C782 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6209 Y/C782 Bearing

6209 Y/C782 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 7351 lbf, ensuring reliable performance in various applications.

The single-row deep groove design enhances stability and reduces friction during operation.
With a maximum speed of 7,700 rpm, it balances efficiency and durability for long-term use.

6209 Y/C782 Bearing operates smoothly in temperatures ranging from -30°C to 120°C.
Its open design allows for easy lubrication and maintenance, reducing downtime.

Application

Common Applications of 6209 Y/C782 Bearing
In industrial settings, 6209 Y/C782 Bearing is commonly used in electric motors and pumps, where its radial load capacity ensures reliable performance. The open design allows for easy lubrication, extending service life in demanding conditions.

Where Is 6209 Y/C782 Bearing Used?
You’ll often find 6209 Y/C782 Bearing in automotive applications like alternators and wheel hubs, thanks to its balanced radial load handling. Its metric sizing makes it a versatile fit for various vehicle models.

Ideal for Precision: 6209 Y/C782 Bearing
For medical devices such as centrifuges, 6209 Y/C782 Bearing offers consistent operation due to its chrome steel construction. The ABEC 1 tolerance ensures smooth performance in precision instruments.

Automotive vs Industrial: Applications of 6209 Y/C782 Bearing
In automotive systems, 6209 Y/C782 Bearing supports components like fans and clutches, while in industrial gearboxes, it handles moderate radial loads with ease. Its temperature range suits both environments well.

Practical Uses for 6209 Y/C782 Bearing
Around the home, 6209 Y/C782 Bearing can be found in appliances like washing machines, where its durability keeps things running smoothly. The simple design makes it easy to maintain over time.
