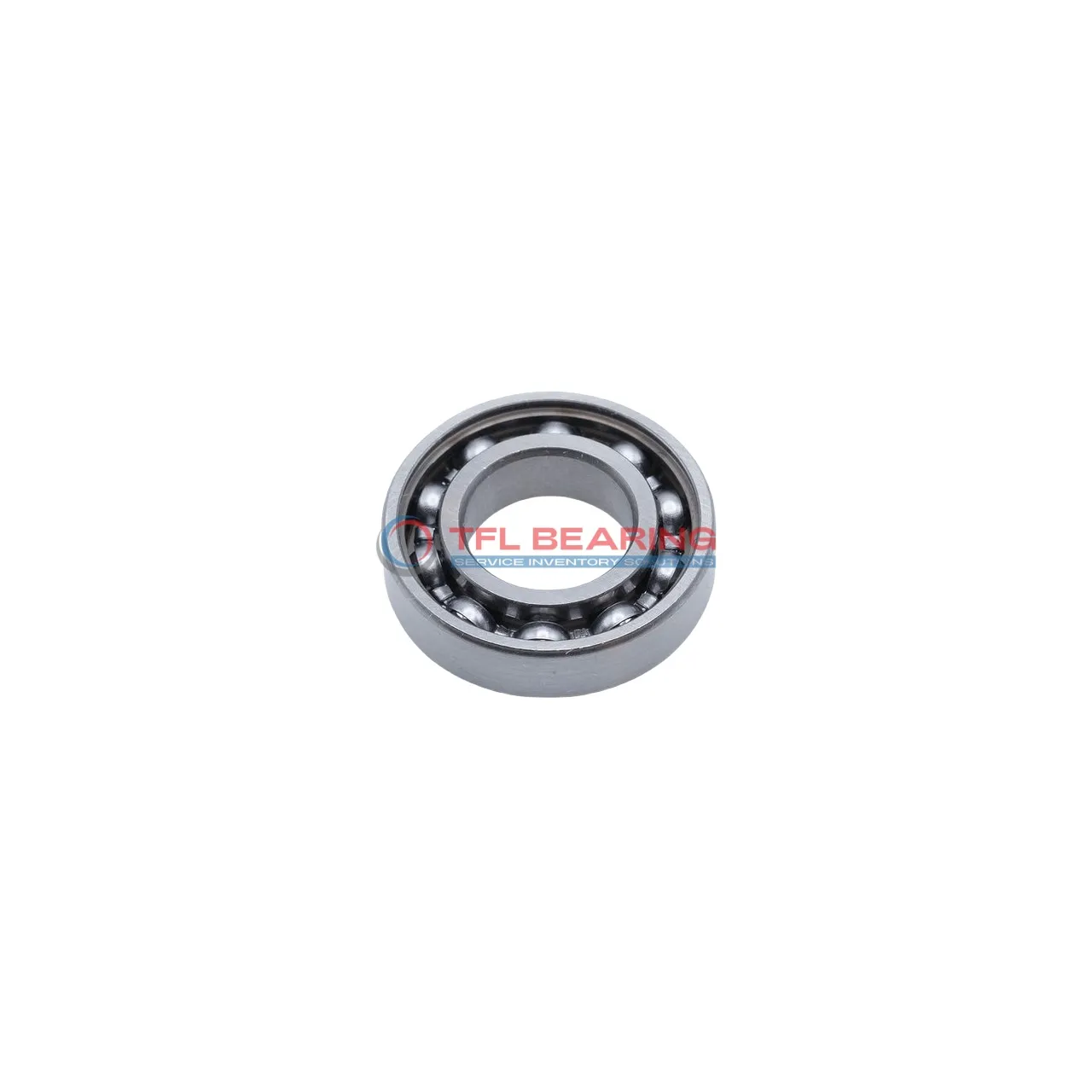

Single Row Deep Groove Ball Bearings 6209/C3W64

Single Row Deep Groove Ball Bearings 6209/C3W64

The 6209/C3W64 is a single-row deep groove ball bearing with a 45mm bore and 85mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 7351 lbf and spins smoothly at speeds up to 7700 RPM.

Its open design and solid oil lubrication ensure easy maintenance and consistent performance. The C3 radial clearance provides flexibility for thermal expansion in various conditions.

This bearing works well in temperatures from -30°C to 120°C, making it suitable for industrial machinery or electric motors. It’s interchangeable with SKF bearings, offering a reliable replacement option.

Weighing 407g, it’s a robust yet manageable choice for radial load applications. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6209/C3W64
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 45 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 85 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 19 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 7351 lbf
  • Static Radial Load 4564 lbf
  • Max Speed 7700 rpm
  • Weight 407 g
Single Row Deep Groove Ball Bearings 6209/C3W64 dimension drawing
Download DWG Download PDF

Features

How Does 6209/C3W64 Bearing Reduce Friction?

6209/C3W64 Bearing features a single-row deep groove design, optimised for smooth radial load distribution.
The chrome steel construction ensures durability while reducing friction during operation.

Solid oil lubrication maintains consistent performance, even at high speeds up to 7,700 rpm.
Its C3 radial clearance allows for thermal expansion, making it suitable for varied temperature conditions.

With a dynamic radial load capacity of 7351 lbf, it handles demanding applications reliably.
The open design simplifies maintenance, ensuring long-term efficiency.

Application

Industrial Uses of 6209/C3W64 Bearing
This bearing is commonly used in industrial machinery like pumps and electric motors, where its deep groove design handles radial loads efficiently. The C3 clearance ensures reliable performance even with thermal expansion in demanding environments.

In automotive applications, 6209/C3W64 Bearing fits well in wheel hubs and alternators, providing smooth rotation under varying speeds. Its solid oil lubrication reduces maintenance needs, making it a practical choice for long-term use.

For automation systems, 6209/C3W64 Bearing supports robotic arms and conveyor belts with consistent precision. The chrome steel construction offers durability, while the open design allows for easy inspection and re-lubrication when needed.

Where Is 6209/C3W64 Bearing Used?
You’ll often find this bearing in household appliances like washing machines, where its radial load capacity handles the spin cycle effortlessly. The wide temperature range also makes it suitable for both hot and cold environments.

In medical devices, 6209/C3W64 Bearing ensures quiet operation in equipment like centrifuges. The solid oil lubrication prevents contamination, which is crucial for maintaining sterile conditions in labs and clinics.
