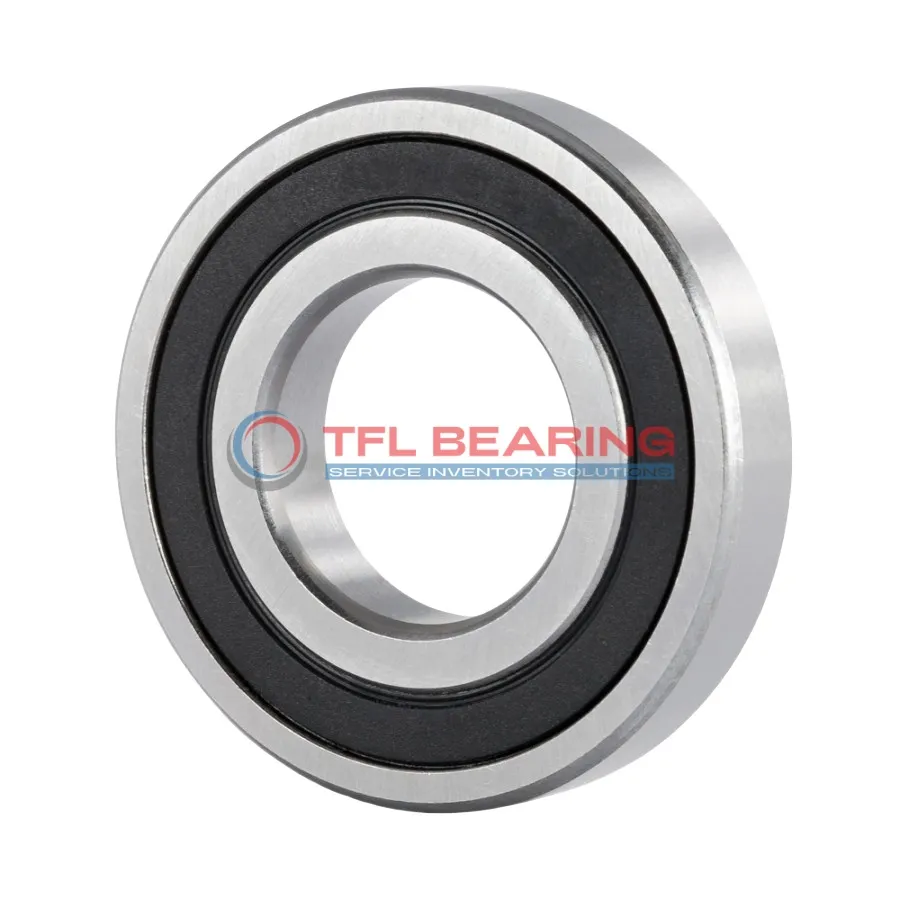

Single Row Deep Groove Ball Bearings 6209-2RS1/WT

Single Row Deep Groove Ball Bearings 6209-2RS1/WT

The 6209-2RS1/WT is a single-row deep groove ball bearing with a 45mm bore and 85mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 7351 lbf and operates smoothly at speeds up to 7700 RPM.

Its sealed design keeps dirt out and lubrication in, making it low-maintenance for long-term use. The chrome steel cage adds strength and durability, even in demanding conditions.

This bearing works well in temperatures from -30°C to 120°C, suitable for various industrial environments. It’s interchangeable with SKF models, offering a reliable replacement option.

Weighing 407g, it’s a sturdy yet manageable choice for applications like electric motors or conveyor systems. Compliant with RoHS and REACH standards for safety and environmental friendliness.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6209-2RS1/WT
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 45 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 85 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 19 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 7351 lbf
  • Static Radial Load 4564 lbf
  • Max Speed 7700 rpm
  • Weight 407 g
Single Row Deep Groove Ball Bearings 6209-2RS1/WT dimension drawing
Download DWG Download PDF

Features

Why Choose 6209-2RS1/WT Bearing for Precision Tasks?

6209-2RS1/WT Bearing features a sealed design, protecting it from dust and moisture for consistent performance.
Its chrome steel construction ensures durability and resistance to wear in radial load applications.

With a dynamic radial load capacity of 7351 lbf, it handles demanding tasks with ease.
The bearing operates smoothly at speeds up to 7,700 rpm, making it suitable for high-speed applications.

Its ABEC 1 tolerance class provides reliable precision for various industrial uses.
The temperature range of -30°C to 120°C ensures performance in diverse environments.

Application

Common Applications of 6209-2RS1/WT Bearing
In industrial settings, 6209-2RS1/WT Bearing is commonly used in electric motors and pumps, where its sealed design helps keep contaminants out. The chrome steel construction ensures durability even in demanding environments.

Where Is 6209-2RS1/WT Bearing Used?
You’ll often find 6209-2RS1/WT Bearing in automotive applications like alternators and water pumps, thanks to its reliable radial load handling. Its sealed nature makes it low-maintenance, ideal for long-term use.

Built for Heavy-Duty Use: 6209-2RS1/WT Bearing
For conveyor systems and agricultural machinery, 6209-2RS1/WT Bearing offers robust performance under continuous operation. The ABEC 1 tolerance ensures smooth running without excessive precision requirements.

Light-Duty vs Heavy-Duty: Best Uses for 6209-2RS1/WT Bearing
In light-duty applications like household appliances, 6209-2RS1/WT Bearing provides quiet and efficient operation. For heavier tasks, it maintains stability in industrial gearboxes and compressors.

Perfect Fit for Automation: 6209-2RS1/WT Bearing
6209-2RS1/WT Bearing works well in robotic arms and automated assembly lines, where its sealed design reduces friction and wear. The metric sizing ensures compatibility with standard European machinery.
