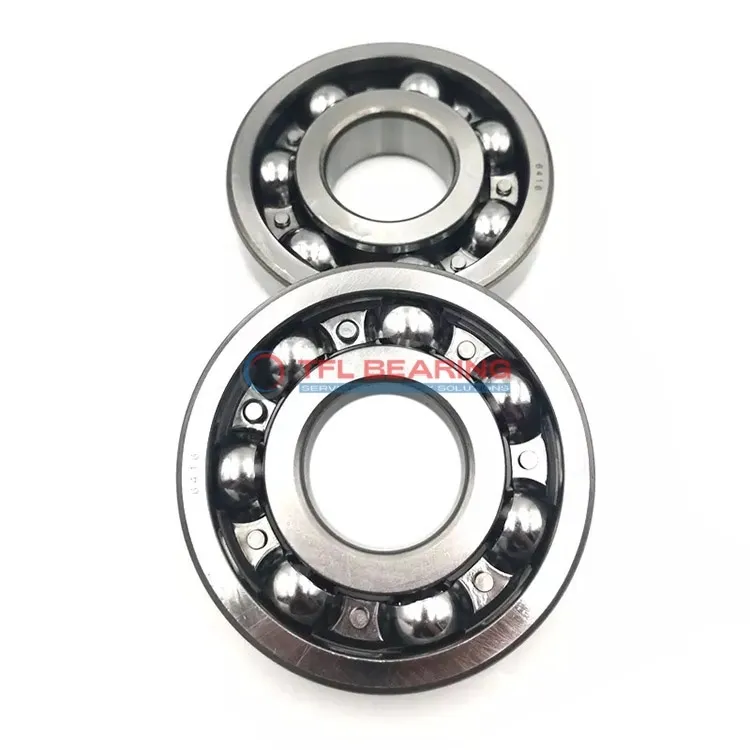

Single Row Deep Groove Ball Bearings 6208 Y/C782

Single Row Deep Groove Ball Bearings 6208 Y/C782

The 6208 Y/C782 is a single-row deep groove ball bearing with a 40mm bore and 80mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 6542 lbf and operates smoothly at speeds up to 8300 RPM.

Its open design allows for easy lubrication, while the chrome steel cage ensures durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like electric motors or pumps where radial loads are common.

Weighing 366g, it’s a robust yet lightweight option. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6208 Y/C782
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 40 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 80 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 18 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 6542 lbf
  • Static Radial Load 4002 lbf
  • Max Speed 8300 rpm
  • Weight 366 g
  • price（$） 43.965
Single Row Deep Groove Ball Bearings 6208 Y/C782 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6208 Y/C782 Bearing

6208 Y/C782 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 6542 lbf, ensuring reliable performance in various applications.

The single-row deep groove design enhances stability and reduces friction during operation.
With a maximum speed of 8,300 rpm, it delivers a balance of durability and efficiency.

6208 Y/C782 Bearing operates smoothly in temperatures ranging from -30°C to 120°C.
Its open design allows for easy lubrication, maintaining optimal performance over time.

The ABEC 1 tolerance class ensures consistent precision in radial applications.
This makes 6208 Y/C782 Bearing a practical choice for industrial and mechanical uses.

Application

Industrial Uses of 6208 Y/C782 Bearing
This bearing is commonly used in industrial machinery like pumps and electric motors, where its radial load capacity ensures reliable performance.
The open design allows for easy lubrication, making it suitable for environments with moderate contamination.

Where Is 6208 Y/C782 Bearing Used?
You’ll often find 6208 Y/C782 Bearing in automotive applications such as alternators and wheel hubs, thanks to its balanced load handling.
Its chrome steel construction provides durability, even under continuous use in demanding conditions.

Perfect Fit for Automation: 6208 Y/C782 Bearing
In robotic arms and conveyor systems, 6208 Y/C782 Bearing offers smooth rotation and low friction.
The ABEC 1 tolerance ensures consistent performance without over-engineering for standard applications.

Medical vs Industrial: Where 6208 Y/C782 Bearing Excels
While not typically used in medical devices, 6208 Y/C782 Bearing shines in industrial gearboxes and compressors.
Its temperature range up to 120°C makes it versatile for various operational environments.

Essential Roles of 6208 Y/C782 Bearing
For household appliances like washing machines, 6208 Y/C782 Bearing provides quiet and efficient operation.
The metric sizing ensures compatibility with a wide range of European-designed equipment.
