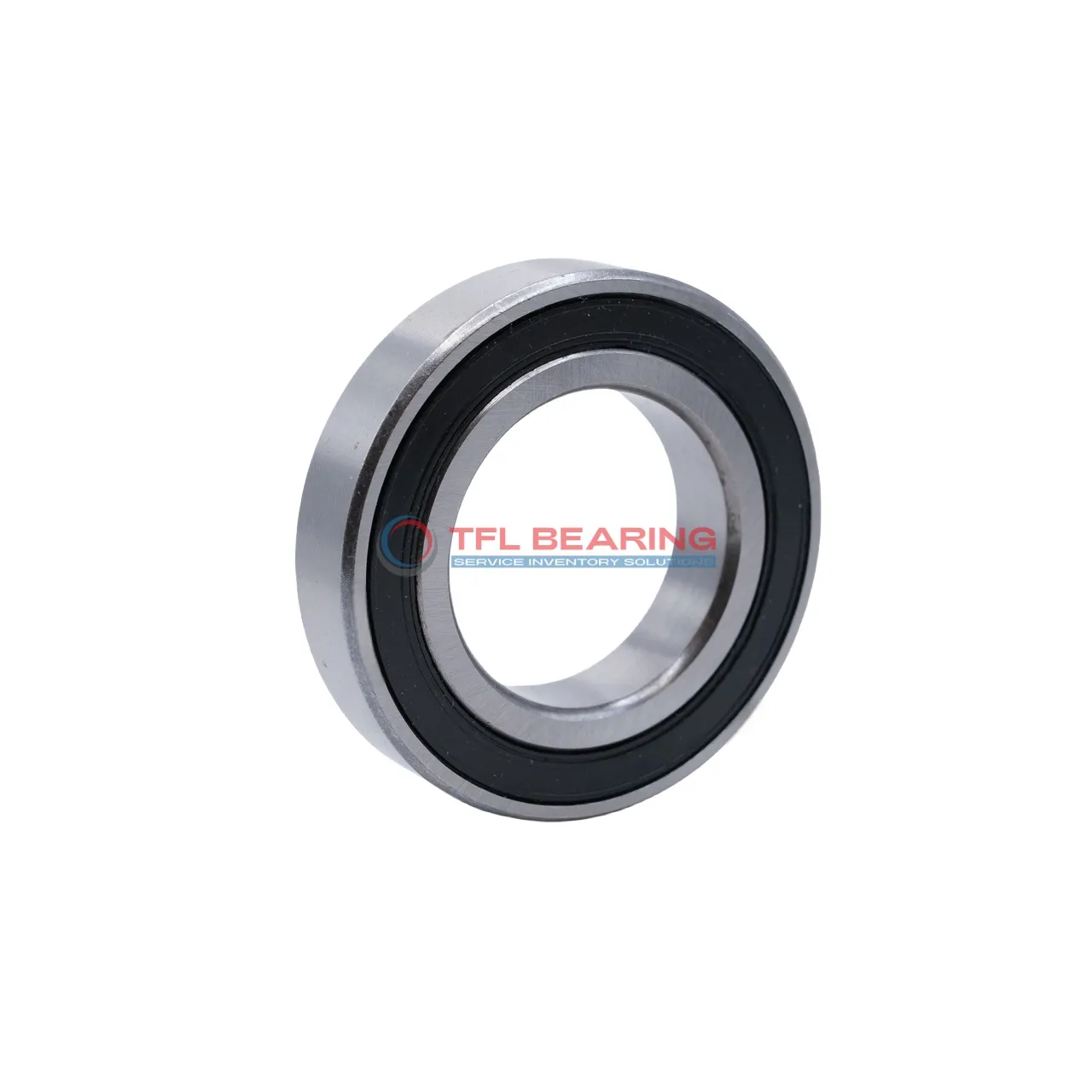

Single Row Deep Groove Ball Bearings 6208-2RS1TN9/C3VE167

Single Row Deep Groove Ball Bearings 6208-2RS1TN9/C3VE167

The 6208-2RS1TN9/C3VE167 is a single-row deep groove ball bearing with a 40mm bore and 80mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 6542 lbf and operates smoothly at speeds reaching 8300 RPM.

Its sealed design keeps out dirt and moisture, while the nylon cage reduces noise and wear. The bearing performs reliably in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a cost-effective alternative for replacements. Suitable for applications like electric motors or pumps where radial loads are common.

Weighing 366g, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6208-2RS1TN9/C3VE167
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 40 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 80 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 18 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 6542 lbf
  • Static Radial Load 4002 lbf
  • Max Speed 8300 rpm
  • Weight 366 g
  • price（$） 8.586
Single Row Deep Groove Ball Bearings 6208-2RS1TN9/C3VE167 dimension drawing
Download DWG Download PDF

Features

How Does 6208-2RS1TN9/C3VE167 Bearing Reduce Friction?

6208-2RS1TN9/C3VE167 Bearing features a single-row deep groove design, optimised for smooth radial load distribution.
The chrome steel construction ensures durability while reducing friction during operation.

Its sealed design keeps contaminants out, maintaining consistent performance over time.
With a dynamic radial load capacity of 6542 lbf, it handles demanding applications with ease.

The nylon cage minimises noise and vibration, enhancing operational efficiency.
A maximum speed of 8,300 rpm makes it suitable for high-speed machinery.

Operating temperatures range from -30°C to 120°C, ensuring reliability in varied conditions.
This bearing balances performance and longevity, making it a practical choice for many uses.

Application

Common Applications of 6208-2RS1TN9/C3VE167 Bearing
In industrial settings, 6208-2RS1TN9/C3VE167 Bearing is widely used in electric motors and pumps, thanks to its sealed design that keeps contaminants out. The C3 clearance ensures smooth operation even under varying thermal conditions.

Where Is 6208-2RS1TN9/C3VE167 Bearing Used?
You’ll often find 6208-2RS1TN9/C3VE167 Bearing in automotive applications like alternators and water pumps, where its radial load capacity and sealed construction are key. The nylon cage reduces noise, making it ideal for quieter vehicle systems.

Built for Heavy-Duty Use: 6208-2RS1TN9/C3VE167 Bearing
For conveyor systems and gearboxes, 6208-2RS1TN9/C3VE167 Bearing offers reliable performance with its chrome steel rings and robust design. Its ABEC 1 tolerance ensures consistent operation in demanding environments.

Light-Duty vs Heavy-Duty: Best Uses for 6208-2RS1TN9/C3VE167 Bearing
In light-duty applications like household appliances, 6208-2RS1TN9/C3VE167 Bearing provides quiet and efficient operation. For heavier tasks, its dynamic load rating makes it suitable for industrial machinery.
