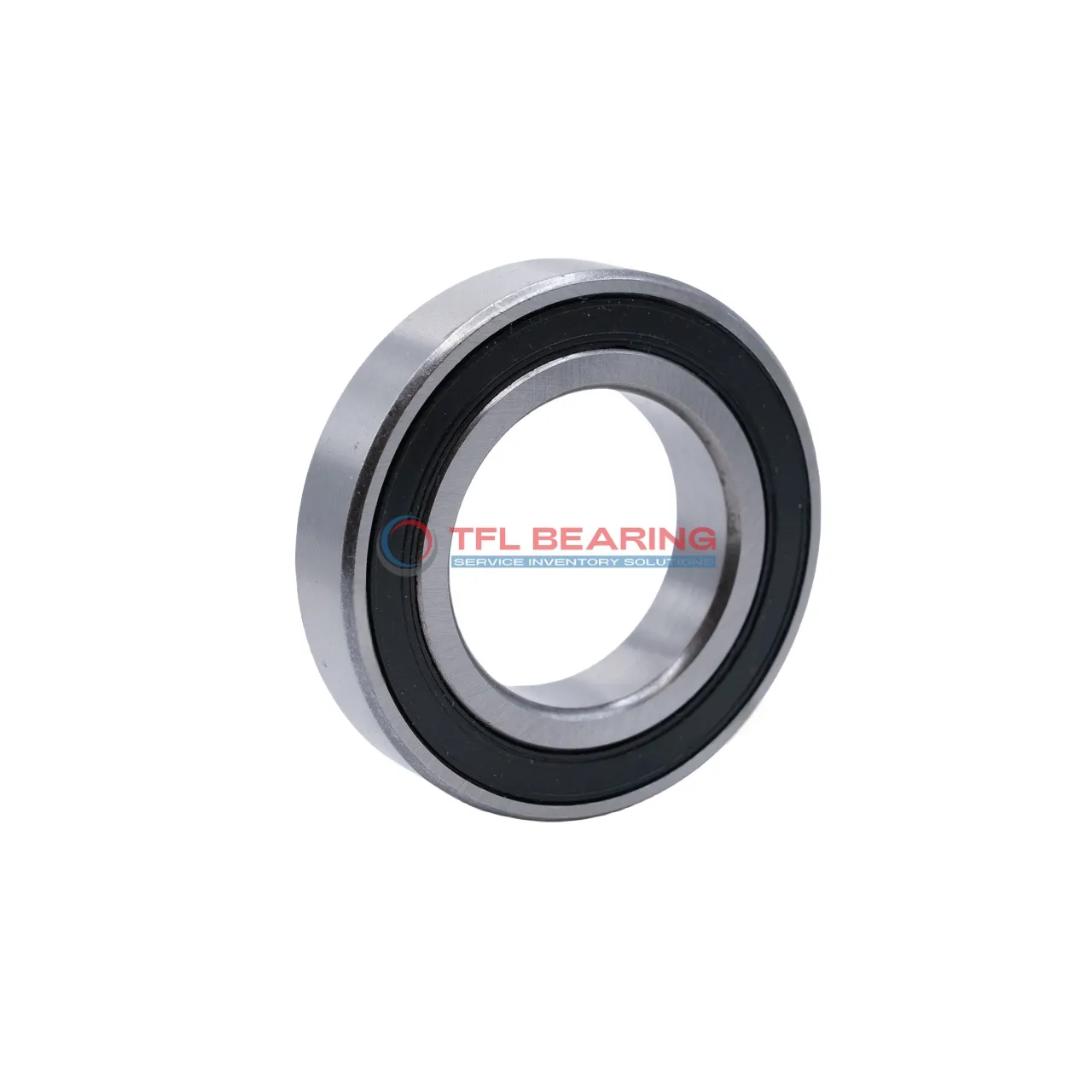

Single Row Deep Groove Ball Bearings 6208-2RS1/C3WT

Single Row Deep Groove Ball Bearings 6208-2RS1/C3WT

The 6208-2RS1/C3WT is a single-row deep groove ball bearing with a 40mm bore and 80mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 6542 lbf and operates smoothly at speeds up to 8300 RPM.

Its sealed design keeps dirt out and grease in, reducing maintenance needs. The C3 radial clearance ensures reliable performance under varying temperatures, from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a cost-effective alternative. Perfect for electric motors, pumps, or industrial gearboxes where radial loads dominate.

Weighing 366g, it’s a robust yet lightweight choice. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6208-2RS1/C3WT
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 40 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 80 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 18 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 6542 lbf
  • Static Radial Load 4002 lbf
  • Max Speed 8300 rpm
  • Weight 366 g
  • price（$） 7.794
Single Row Deep Groove Ball Bearings 6208-2RS1/C3WT dimension drawing
Download DWG Download PDF

Features

How Does 6208-2RS1/C3WT Bearing Reduce Friction?

6208-2RS1/C3WT Bearing features a sealed design, preventing contaminants from entering and reducing friction.
Its chrome steel construction ensures smooth operation, even under high radial loads.

The C3 radial clearance allows for thermal expansion, maintaining performance in varying temperatures.
With a maximum speed of 8,300 rpm, it offers reliable efficiency for various applications.

The sealed design also minimises maintenance needs, making it a practical choice for long-term use.
Its static radial load capacity of 4002 lbf ensures durability in demanding conditions.

Application

Common Applications of 6208-2RS1/C3WT Bearing
6208-2RS1/C3WT Bearing works well in industrial settings, especially for conveyor belts and electric motors where radial load support is needed. Its sealed design helps keep out dust and moisture, extending its lifespan in tough conditions.

In automotive uses, 6208-2RS1/C3WT Bearing fits nicely in wheel hubs and alternators, providing smooth rotation and reliability. The C3 clearance ensures it handles temperature changes without losing performance.

For home appliances like washing machines, 6208-2RS1/C3WT Bearing offers quiet operation and durability. The chrome steel construction makes it resistant to wear, even with frequent use.

Automation systems benefit from 6208-2RS1/C3WT Bearing in robotic arms and assembly lines, where precision and low maintenance are key. The metric sizing ensures compatibility with standard European machinery.

Medical devices such as centrifuges use 6208-2RS1/C3WT Bearing for its consistent performance and hygiene-friendly sealed design. It handles high speeds while staying reliable in critical applications.
