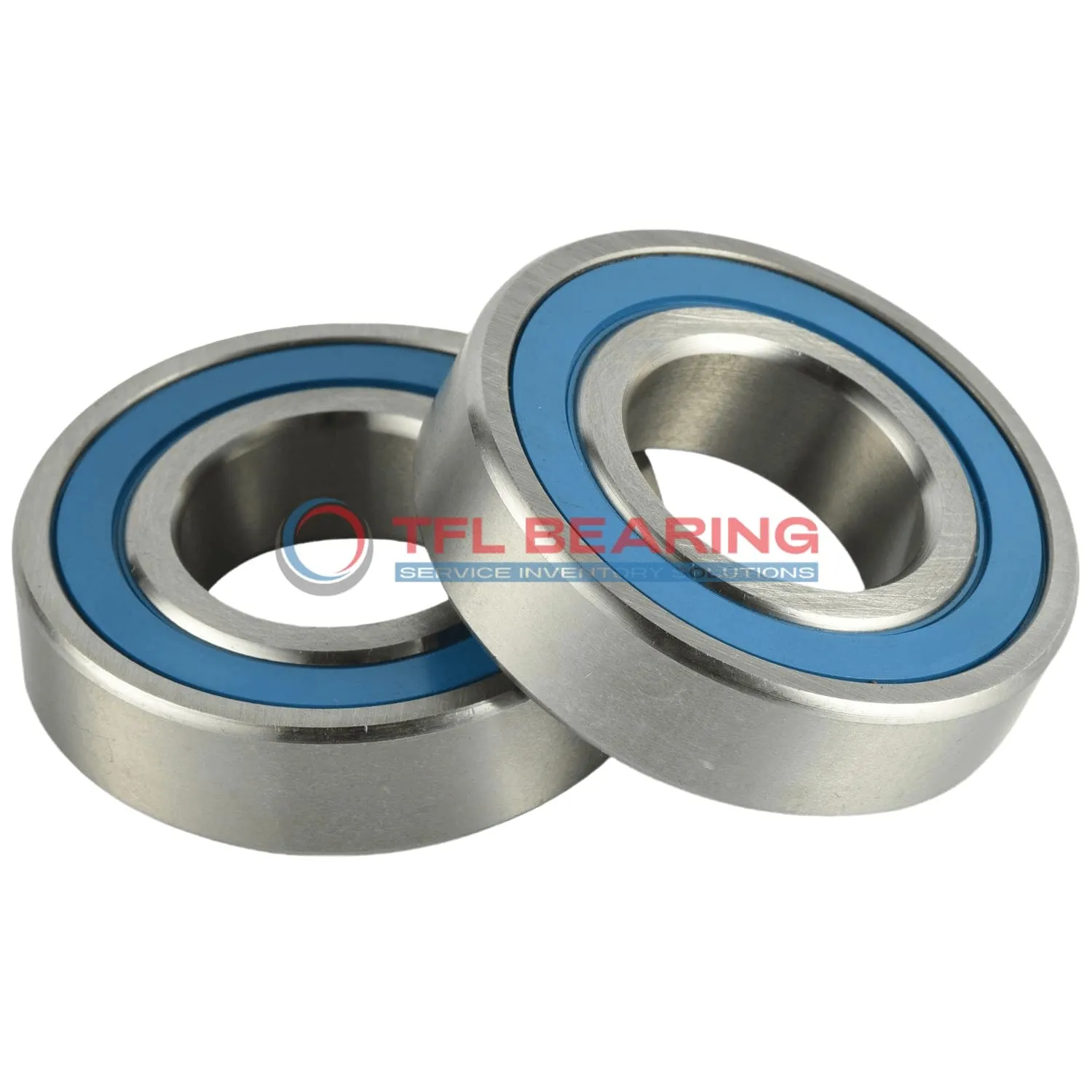

Single Row Deep Groove Ball Bearings 6206-RS1/MT

Single Row Deep Groove Ball Bearings 6206-RS1/MT

The 6206-RS1/MT is a single-row deep groove ball bearing with a 30mm bore and 62mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 4384 lbf and operates smoothly at speeds up to 11000 RPM.

Its sealed design keeps dirt out and lubrication in, making it low-maintenance. The chrome steel cage adds durability, ensuring reliable performance over time.

This bearing suits temperatures from -30°C to 120°C, fitting well in various environments. It’s interchangeable with SKF models, offering a practical replacement option.

Weighing 199g, it’s lightweight yet robust. Ideal for electric motors or pumps where radial loads and sealed protection are needed. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6206-RS1/MT
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 62 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 16 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 4384 lbf
  • Static Radial Load 254 lbf
  • Max Speed 11000 rpm
  • Weight 199 g
Single Row Deep Groove Ball Bearings 6206-RS1/MT dimension drawing
Download DWG Download PDF

Features

Performance Features of 6206-RS1/MT Bearing

6206-RS1/MT Bearing is designed for radial loads, with a dynamic radial load capacity of 4384 lbf.
Its sealed construction protects against dust and moisture, ensuring reliable operation.
The chrome steel rings and balls provide durability, while the ABEC 1 tolerance ensures consistent performance.
With a maximum speed of 11,000 rpm, it is suitable for various industrial applications.

Application

Industrial Uses of 6206-RS1/MT Bearing
6206-RS1/MT Bearing is commonly used in conveyor systems and electric motors, where its sealed design helps keep out dust and debris. The chrome steel construction ensures durability in demanding industrial environments.

Where Is 6206-RS1/MT Bearing Used?
You’ll often find 6206-RS1/MT Bearing in automotive applications like alternators and water pumps, thanks to its reliable radial load handling. Its metric sizing makes it a versatile choice for various vehicle models.

Perfect Fit for Automation: 6206-RS1/MT Bearing
In robotic arms and automated machinery, 6206-RS1/MT Bearing provides smooth rotation and long service life. The sealed design reduces maintenance needs, making it ideal for high-use scenarios.

Light-Duty vs Heavy-Duty: Best Uses for 6206-RS1/MT Bearing
For light-duty applications like household fans, 6206-RS1/MT Bearing offers quiet operation and efficiency. In heavier industrial settings, it handles radial loads with ease, proving its versatility.

Medical vs Industrial: Where 6206-RS1/MT Bearing Excels
In medical devices like centrifuges, 6206-RS1/MT Bearing’s precision ensures consistent performance. Industrial pumps also benefit from its robust design and resistance to wear.
