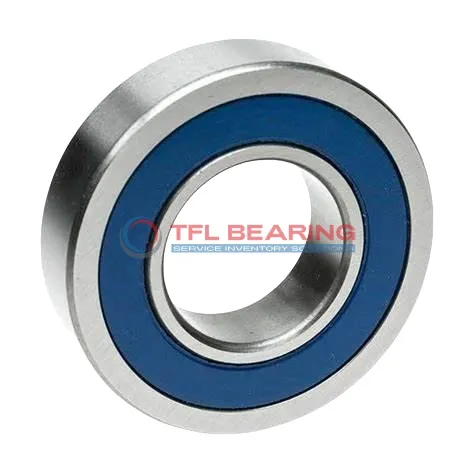

Single Row Deep Groove Ball Bearings 6206-2RS1/C3WT

Single Row Deep Groove Ball Bearings 6206-2RS1/C3WT

The 6206-2RS1/C3WT is a single-row deep groove ball bearing with a 30mm bore and 62mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 4384 lbf and operates smoothly at speeds up to 11000 RPM.

Its sealed design keeps dirt out and grease in, making it low-maintenance for long-term use. The C3 radial clearance ensures reliable performance under varying temperatures, from -30°C to 120°C.

This bearing is interchangeable with SKF models, offering a cost-effective alternative. Ideal for electric motors, pumps, or industrial gearboxes where consistent radial load support is needed.

Weighing just 199g, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it’s a safe choice for various applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6206-2RS1/C3WT
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 62 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 16 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 4384 lbf
  • Static Radial Load 254 lbf
  • Max Speed 11000 rpm
  • Weight 199 g
  • price（$） 3.879
Single Row Deep Groove Ball Bearings 6206-2RS1/C3WT dimension drawing
Download DWG Download PDF

Features

Performance Features of 6206-2RS1/C3WT Bearing

6206-2RS1/C3WT Bearing is designed for radial loads, with a dynamic radial load capacity of 4384 lbf.

Its sealed construction protects against dust and moisture, ensuring reliable operation in various environments.

The chrome steel rings and balls enhance durability, while the C3 radial clearance allows for thermal expansion.

With a maximum speed of 11,000 rpm, it offers efficient performance in a wide temperature range from -30° to 120°C.

Application

Key Fields for 6206-2RS1/C3WT Bearing
6206-2RS1/C3WT Bearing is commonly used in industrial equipment like pumps and electric motors, where its sealed design helps keep out dust and moisture. The chrome steel construction ensures durability in demanding environments.

In automotive applications, 6206-2RS1/C3WT Bearing fits well in components such as alternators and wheel hubs, providing reliable radial load support. Its C3 clearance allows for slight thermal expansion, making it suitable for varying temperatures.

For home appliances, 6206-2RS1/C3WT Bearing works efficiently in washing machines and fans, offering quiet operation and long service life. The sealed feature reduces maintenance needs, which is ideal for everyday use.

Automation systems benefit from 6206-2RS1/C3WT Bearing in robotic arms and conveyor belts, where smooth rotation is essential. The metric sizing ensures compatibility with a wide range of machinery.
