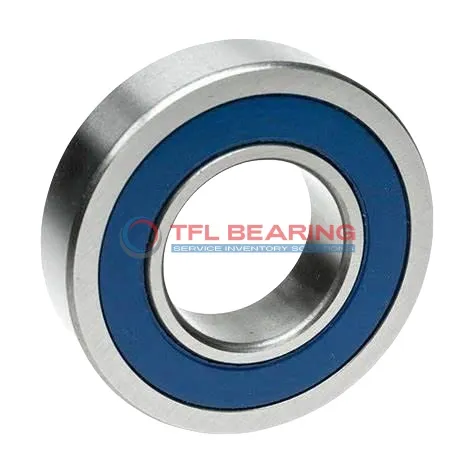

Single Row Deep Groove Ball Bearings 6206-2RS1/C3VT143

Single Row Deep Groove Ball Bearings 6206-2RS1/C3VT143

The 6206-2RS1/C3VT143 is a sealed single-row deep groove ball bearing with a 30mm bore and 62mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 4384 lbf and operates smoothly at speeds up to 11000 RPM.

Its sealed design keeps dirt out and grease in, reducing maintenance needs, while the C3 radial clearance allows for thermal expansion. The bearing performs reliably in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a cost-effective alternative for replacements. Suitable for electric motors, pumps, or gearboxes where radial loads are common.

Weighing just 199g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards for safe use in various industries.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6206-2RS1/C3VT143
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 62 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 16 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 4384 lbf
  • Static Radial Load 254 lbf
  • Max Speed 11000 rpm
  • Weight 199 g
Single Row Deep Groove Ball Bearings 6206-2RS1/C3VT143 dimension drawing
Download DWG Download PDF

Features

How Does 6206-2RS1/C3VT143 Bearing Reduce Friction?

6206-2RS1/C3VT143 Bearing features a deep groove design, ensuring smooth radial load distribution and reduced friction.
The sealed construction keeps contaminants out, maintaining consistent performance over time.

Made from chrome steel, 6206-2RS1/C3VT143 Bearing resists wear, extending its operational life.
Its C3 radial clearance allows for thermal expansion, making it suitable for varying temperatures.

With a dynamic radial load capacity of 4384 lbf, it handles demanding applications effortlessly.
The bearing operates quietly, even at high speeds up to 11,000 rpm.

Its compact size (30 mm × 62 mm × 16 mm) makes it easy to integrate into various machinery.
The sealed design also minimises maintenance, saving time and costs.

Application

Common Applications of 6206-2RS1/C3VT143 Bearing
In industrial settings, 6206-2RS1/C3VT143 Bearing is commonly used in conveyor systems and electric motors, where its sealed design helps keep out dust and debris. The C3 radial clearance ensures smooth operation even under varying temperatures.

Where Is 6206-2RS1/C3VT143 Bearing Used?
You’ll often find 6206-2RS1/C3VT143 Bearing in automotive applications like alternators and water pumps, thanks to its reliable radial load capacity. The chrome steel construction also makes it durable for long-term use.

Built for Heavy-Duty Use: 6206-2RS1/C3VT143 Bearing
This bearing works well in agricultural machinery, handling radial loads in equipment like tractors and harvesters. Its sealed design protects against dirt and moisture, extending its lifespan.

Automotive vs Industrial: Applications of 6206-2RS1/C3VT143 Bearing
In cars, 6206-2RS1/C3VT143 Bearing supports components like fans and pulleys, while in factories, it’s ideal for pumps and gearboxes. The metric sizing ensures compatibility across various machines.

Perfect Fit for Automation: 6206-2RS1/C3VT143 Bearing
Robotic arms and assembly lines benefit from 6206-2RS1/C3VT143 Bearing’s smooth rotation and sealed protection. The ABEC 1 tolerance class provides consistent performance for precision tasks.
