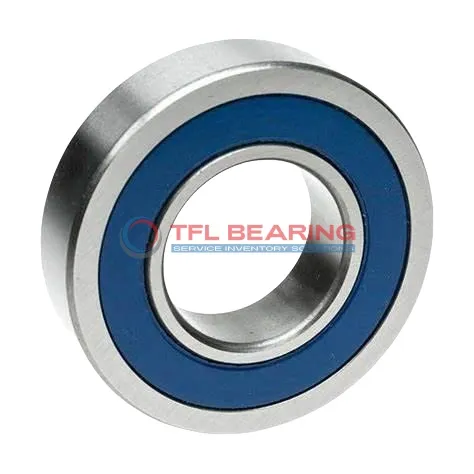

Single Row Deep Groove Ball Bearings 6206-2RS1/C2

Single Row Deep Groove Ball Bearings 6206-2RS1/C2

The 6206-2RS1/C2 is a single-row deep groove ball bearing with a 30mm bore and 62mm outer diameter, crafted from robust chrome steel for durability. It handles radial loads up to 4384 lbf and operates smoothly at speeds up to 11000 RPM.

Its sealed design keeps out dust and moisture, extending service life, while the C2 radial clearance ensures reliable performance under varying temperatures (-30°C to 120°C). The chrome steel cage adds strength and longevity.

This bearing is interchangeable with SKF models, making it a practical choice for replacements. Ideal for electric motors, pumps, or small machinery where consistent radial load support is needed.

Weighing 199g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards for safe, eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6206-2RS1/C2
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C2
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 62 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 16 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 4384 lbf
  • Static Radial Load 254 lbf
  • Max Speed 11000 rpm
  • Weight 199 g
  • price（$） 3.825
Single Row Deep Groove Ball Bearings 6206-2RS1/C2 dimension drawing
Download DWG Download PDF

Features

Why Choose 6206-2RS1/C2 Bearing for Precision Tasks?

6206-2RS1/C2 Bearing features a sealed design, protecting against dust and moisture for consistent performance.
Its chrome steel construction ensures durability and resistance to wear in radial load applications.

With a dynamic radial load capacity of 4384 lbf, it handles demanding conditions reliably.
The bearing operates smoothly up to 11,000 rpm, making it suitable for high-speed applications.

Its C2 radial clearance provides optimal performance, reducing friction and heat buildup.
The temperature range of -30°C to 120°C ensures versatility in various environments.

Easy to install and maintain, 6206-2RS1/C2 Bearing offers long service life with minimal upkeep.
Its compatibility with SKF models makes it a practical choice for replacements.

Application

Industrial Uses of 6206-2RS1/C2 Bearing
The 6206-2RS1/C2 Bearing is commonly used in conveyor systems and electric motors, where its sealed design keeps contaminants out. Its C2 radial clearance ensures smooth operation even under moderate loads.

In automotive applications, 6206-2RS1/C2 Bearing fits well in alternators and water pumps, thanks to its reliable performance and compatibility with SKF standards. The chrome steel construction offers good resistance to wear over time.

For home appliances like washing machines, 6206-2RS1/C2 Bearing provides quiet and efficient operation. The sealed design helps protect against dust and moisture, extending its lifespan in everyday use.

Automation equipment benefits from 6206-2RS1/C2 Bearing’s consistent performance in robotic arms and assembly lines. Its metric sizing makes it easy to integrate into various machinery designs.
