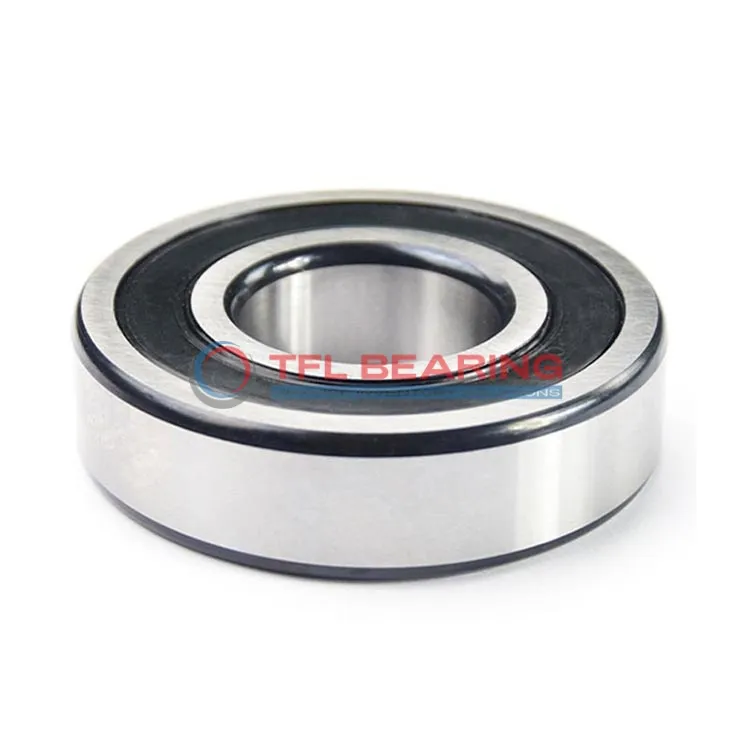

Single Row Deep Groove Ball Bearings 6205-RS1Z/C3

Single Row Deep Groove Ball Bearings 6205-RS1Z/C3

The 6205-RS1Z/C3 is a single-row deep groove ball bearing with a 25mm bore and 52mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 3147 lbf and operates smoothly at speeds up to 13,000 RPM.

Its one-side shielded and one-side sealed design keeps dirt out while retaining lubrication, ideal for dusty environments. The C3 radial clearance ensures reliable performance under varying temperatures.

This bearing is interchangeable with SKF models, making replacements hassle-free. Perfect for electric motors, pumps, or small machinery where consistent radial load support is needed.

Weighing only 128g, it’s lightweight yet durable. Compliant with RoHS and REACH standards, it works in temperatures from -30°C to 120°C.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6205-RS1Z/C3
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type One Side Shielded,One Side Seal
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 25 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 52 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 15 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 3147 lbf
  • Static Radial Load 1765 lbf
  • Max Speed 13000 rpm
  • Weight 128 g
Single Row Deep Groove Ball Bearings 6205-RS1Z/C3 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6205-RS1Z/C3 Bearing

6205-RS1Z/C3 Bearing is built with chrome steel rings and balls, offering excellent radial load capacity up to 3147 lbf.
Its single-row deep groove design ensures smooth operation and efficient load distribution.
The one-side shielded and one-side sealed construction protects against contaminants while maintaining lubrication.
With a maximum speed of 13,000 rpm, it delivers reliable performance in various applications.

Application

Common Applications of 6205-RS1Z/C3 Bearing
In industrial settings, 6205-RS1Z/C3 Bearing is commonly used in electric motors and pumps due to its reliable radial load capacity. The one-side sealed design helps keep contaminants out while maintaining smooth operation.

Where Is 6205-RS1Z/C3 Bearing Used?
You’ll often find 6205-RS1Z/C3 Bearing in automotive applications like alternators and fans, where its C3 clearance ensures consistent performance under varying temperatures. Its chrome steel construction adds durability for long-term use.

Built for Heavy-Duty Use: 6205-RS1Z/C3 Bearing
6205-RS1Z/C3 Bearing works well in conveyor systems and agricultural machinery, handling moderate radial loads with ease. The shielded side protects against dust, making it suitable for harsh environments.

Automotive vs Industrial: Applications of 6205-RS1Z/C3 Bearing
In cars, 6205-RS1Z/C3 Bearing supports components like water pumps, while in factories, it’s ideal for gearboxes. Its versatility comes from the balanced design and reliable chrome steel materials.

Perfect Fit for Automation: 6205-RS1Z/C3 Bearing
6205-RS1Z/C3 Bearing is a go-to choice for robotic arms and small machinery, thanks to its compact size and smooth operation. The sealed side helps extend its lifespan in dusty or humid conditions.
