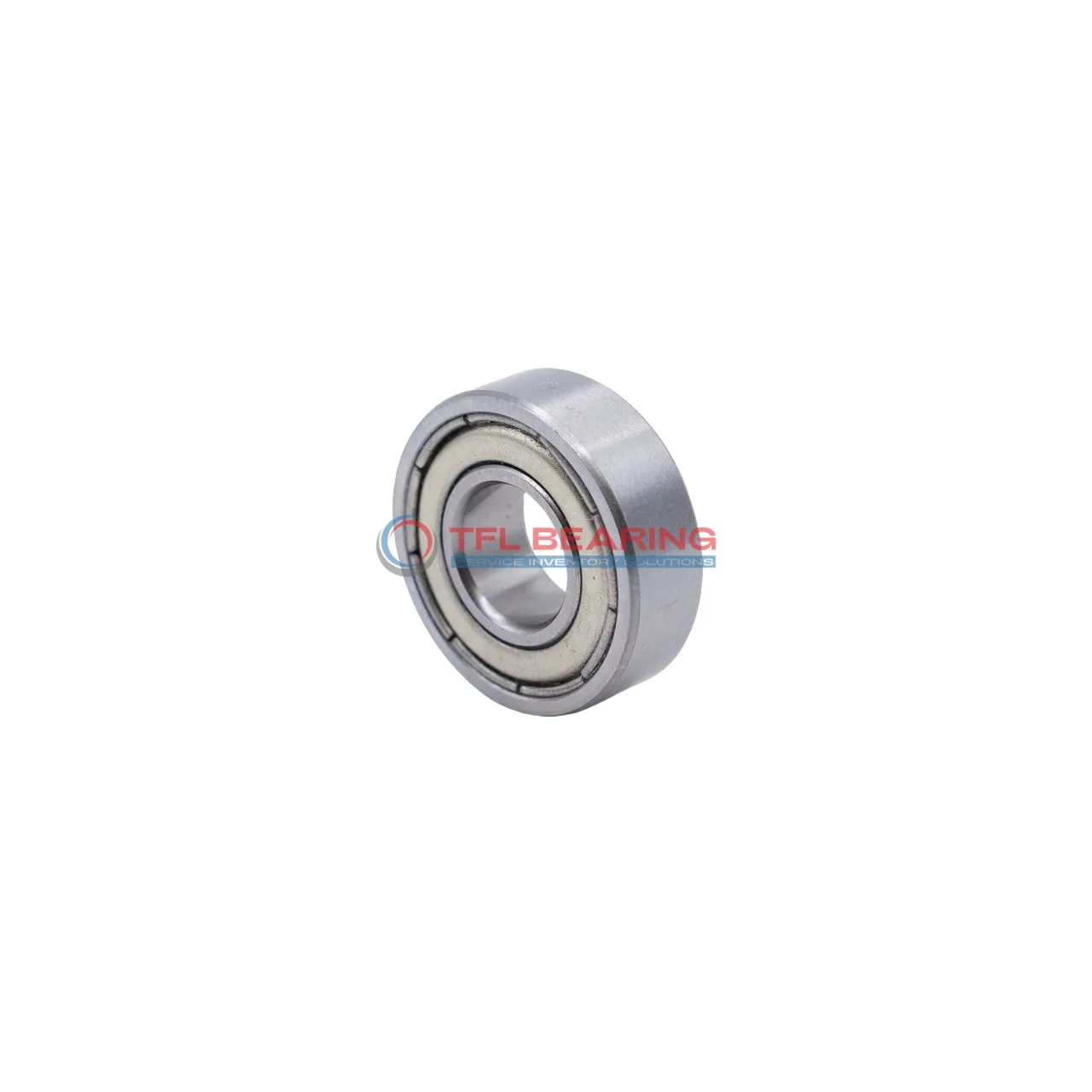

Single Row Deep Groove Ball Bearings 6205-2Z/C2

Single Row Deep Groove Ball Bearings 6205-2Z/C2

The 6205-2Z/C2 is a single-row deep groove ball bearing with a 25mm bore and 52mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 3147 lbf and spins efficiently at speeds up to 13,000 RPM.

Its shielded design keeps dirt out while maintaining smooth operation, and the chrome steel cage adds durability. The bearing performs reliably in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a cost-effective alternative for replacements. Suitable for electric motors, pumps, or small machinery where radial loads are common.

Weighing just 128g, it’s lightweight yet robust for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6205-2Z/C2
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C2
  • Bore Dia 25 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 52 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 15 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 3147 lbf
  • Static Radial Load 1765 lbf
  • Max Speed 13000 rpm
  • Weight 128 g
  • price（$） 2.88
Single Row Deep Groove Ball Bearings 6205-2Z/C2 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6205-2Z/C2 Bearing

6205-2Z/C2 Bearing is designed with chrome steel rings and balls, offering strong radial load capacity.
Its dynamic radial load reaches 3147 lbf, making it suitable for various industrial applications.

The shielded design protects 6205-2Z/C2 Bearing from dust and debris, ensuring smooth operation.
With a maximum speed of 13,000 rpm, it balances performance and durability.

6205-2Z/C2 Bearing operates efficiently in temperatures from -30°C to 120°C.
Its C2 radial clearance provides optimal performance under different load conditions.

The chrome steel cage in 6205-2Z/C2 Bearing ensures long service life with minimal maintenance.
Its compact size (25 mm×52 mm×15 mm) makes it ideal for space-constrained applications.

Application

Common Applications of 6205-2Z/C2 Bearing
In industrial settings, 6205-2Z/C2 Bearing is widely used in electric motors and pumps, thanks to its shielded design that keeps contaminants out while maintaining smooth rotation.
The metric dimensions make it a versatile fit for various machinery across different regions.

Where Is 6205-2Z/C2 Bearing Used?
You’ll often find 6205-2Z/C2 Bearing in automotive applications like alternators and wheel hubs, where its radial load capacity ensures reliable performance.
Its chrome steel construction also makes it durable enough for high-speed operations.

Built for Heavy-Duty Use: 6205-2Z/C2 Bearing
In conveyor systems, 6205-2Z/C2 Bearing handles continuous radial loads with ease, making it a go-to choice for manufacturing lines.
The C2 clearance provides just the right amount of play for thermal expansion in demanding environments.

Automotive vs Industrial: Applications of 6205-2Z/C2 Bearing
While 6205-2Z/C2 Bearing excels in car components like fans and transmissions, it’s equally at home in industrial gearboxes and compressors.
The shielded seals protect against dust and debris, extending its lifespan in both settings.

Perfect Fit for Automation: 6205-2Z/C2 Bearing
In robotic arms and automated machinery, 6205-2Z/C2 Bearing offers precise movement with minimal maintenance.
Its compatibility with SKF standards ensures easy replacement across global supply chains.
