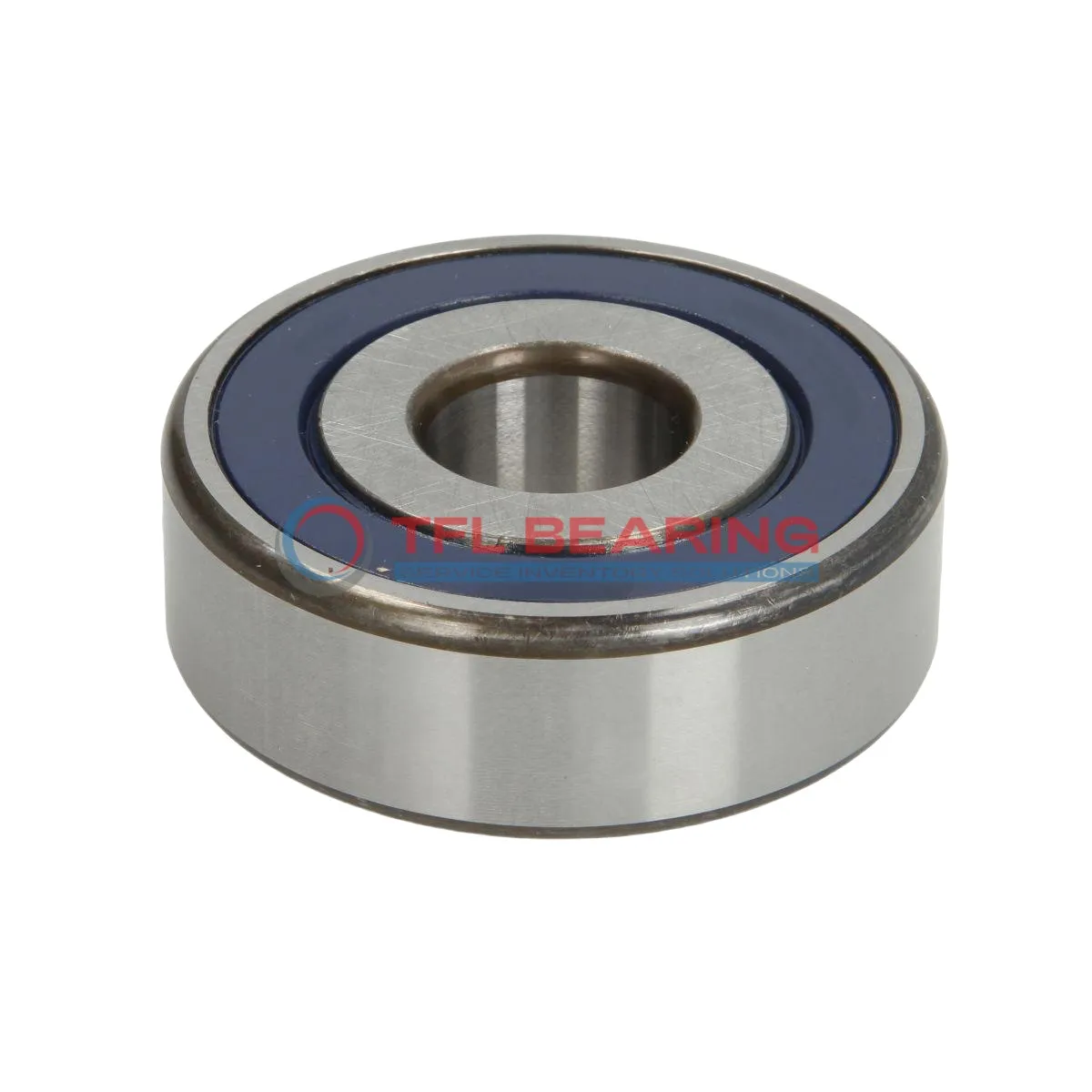

Single Row Deep Groove Ball Bearings 6205-2RSL/C3LHT23

The 6205-2RSL/C3LHT23 is a sealed single-row deep groove ball bearing with a 25mm bore and 52mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 3147 lbf and spins smoothly at speeds up to 13000 RPM.

Its sealed design keeps dirt out and grease in, making it low-maintenance for long-term use. The C3 radial clearance allows for slight misalignment or thermal expansion without compromising performance.

This bearing works well in temperatures from -30°C to 120°C, suitable for various environments. It’s interchangeable with SKF models, offering a reliable replacement option.

Ideal for electric motors, pumps, or small machinery where radial loads and moderate speeds are common. Weighing just 128g, it’s lightweight yet sturdy for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 6205-2RSL/C3LHT23
Brand TFL
Interchangeable SKF
System of Measurement Metric
For Load Direction Radial
Construction Single Row
Bearing Type Ball
Seal Type Sealed
Tolerance Class ABEC 1 | ISO P0
Radial Clearance Trade No C3
Bore Dia 25 mm
Bore Dia Tolerance -0.01mm to 0
Outer Dia 52 mm
Outer Dia Tolerance -0.013mm to 0
Width 15 mm
Width Tolerance -0.120mm to 0
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material Chrome Steel
ROHS Compliant
REACH Compliant
Temperature Range -30°to 120 °C
Dynamic Radial Load 3147 lbf
Static Radial Load 1765 lbf
Max Speed 13000 rpm
Weight 128 g

Single Row Deep Groove Ball Bearings 6205-2RSL/C3LHT23 dimension drawing

Download DWG Download PDF

Features

Why Choose 6205-2RSL/C3LHT23 Bearing for Precision Tasks?

6205-2RSL/C3LHT23 Bearing features a sealed design, protecting against dust and moisture for consistent performance.
Its chrome steel construction ensures durability and resistance to wear in radial load applications.
With a dynamic radial load capacity of 3147 lbf, it handles demanding conditions with ease.
The bearing operates smoothly at speeds up to 13,000 rpm, making it suitable for high-speed machinery.

How Is 6205-2RSL/C3LHT23 Bearing Engineered for Reliability?

6205-2RSL/C3LHT23 Bearing’s single row deep groove design provides reliable radial load support.
The C3 radial clearance allows for thermal expansion, ensuring stable operation in varying temperatures.
Its chrome steel cage maintains ball alignment, reducing friction and extending service life.
The bearing performs reliably within a temperature range of -30°C to 120°C.

Built for Durability: 6205-2RSL/C3LHT23 Bearing

6205-2RSL/C3LHT23 Bearing’s all-chrome steel construction offers excellent resistance to wear and corrosion.
The sealed design prevents contaminants from entering, enhancing longevity in harsh environments.
With a static radial load capacity of 1765 lbf, it ensures stable performance under heavy loads.
Its compact size (25 mm×52 mm×15 mm) makes it ideal for space-constrained applications.

Open vs Sealed Bearings: Benefits of 6205-2RSL/C3LHT23 Bearing

6205-2RSL/C3LHT23 Bearing’s sealed design provides superior protection compared to open bearings.
It maintains lubrication and keeps out debris, reducing maintenance needs and downtime.
The bearing’s chrome steel components ensure long-lasting performance in demanding conditions.
Its ABEC 1 tolerance class guarantees consistent quality and reliable operation.

Application

Common Applications of 6205-2RSL/C3LHT23 Bearing
In industrial settings, 6205-2RSL/C3LHT23 Bearing is widely used in electric motors and pumps due to its sealed design, which protects against dust and moisture. The C3 clearance ensures reliable performance under varying thermal conditions.

Where Is 6205-2RSL/C3LHT23 Bearing Used?
You’ll often find 6205-2RSL/C3LHT23 Bearing in automotive applications like alternators and wheel hubs, where its radial load capacity and sealed construction are ideal. The chrome steel rings and balls provide long-lasting durability.

Ideal for Precision: 6205-2RSL/C3LHT23 Bearing
In medical devices such as dental drills, 6205-2RSL/C3LHT23 Bearing offers smooth operation and low noise. Its temperature range makes it suitable for sterilisation processes.

Automotive vs Industrial: Applications of 6205-2RSL/C3LHT23 Bearing
While 6205-2RSL/C3LHT23 Bearing excels in car components, it’s equally effective in conveyor systems. The metric sizing ensures compatibility across various machinery types.

Perfect Fit for Automation: 6205-2RSL/C3LHT23 Bearing
Robotic arms benefit from 6205-2RSL/C3LHT23 Bearing’s high-speed capability and sealed design. The ABEC 1 tolerance ensures consistent performance in repetitive tasks.
