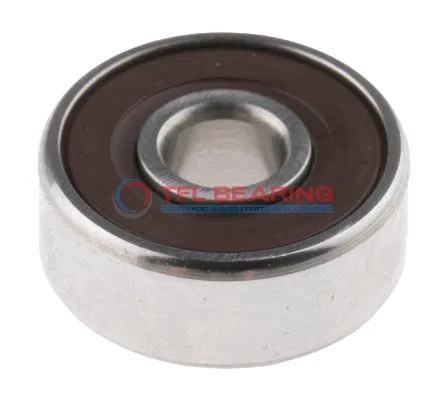

Single Row Deep Groove Ball Bearings 6205-2RS1/C3W64

Single Row Deep Groove Ball Bearings 6205-2RS1/C3W64

The 6205-2RS1/C3W64 is a sealed single-row deep groove ball bearing with a 25mm bore and 52mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 3147 lbf and spins smoothly at speeds up to 13000 RPM.

Its sealed design keeps dirt out and solid oil lubrication ensures long-lasting performance without frequent maintenance. The bearing operates reliably in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for applications like electric motors or pumps where radial loads and contamination resistance are key.

Weighing just 128g, it’s lightweight yet robust for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6205-2RS1/C3W64
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 25 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 52 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 15 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 3147 lbf
  • Static Radial Load 1765 lbf
  • Max Speed 13000 rpm
  • Weight 128 g
Single Row Deep Groove Ball Bearings 6205-2RS1/C3W64 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6205-2RS1/C3W64 Bearing

6205-2RS1/C3W64 Bearing is designed with sealed construction, protecting it from dust and moisture.
Its solid oil lubrication ensures smooth operation, reducing the need for frequent maintenance.

The chrome steel rings and balls provide excellent durability, handling dynamic radial loads up to 3147 lbf.
With a maximum speed of 13,000 rpm, it offers reliable performance in various applications.

6205-2RS1/C3W64 Bearing operates efficiently in temperatures ranging from -30°C to 120°C.
Its C3 radial clearance allows for thermal expansion, ensuring consistent performance under varying conditions.

Application

Common Applications of 6205-2RS1/C3W64 Bearing
6205-2RS1/C3W64 Bearing is widely used in industrial machinery, such as pumps and electric motors, where its sealed design helps keep contaminants out. The solid oil lubrication ensures smooth operation even in dusty environments.

In automotive applications, 6205-2RS1/C3W64 Bearing is often found in alternators and wheel hubs, providing reliable radial load support. Its chrome steel construction offers durability for long-term use.

For household appliances like washing machines, 6205-2RS1/C3W64 Bearing’s quiet performance and low maintenance make it a practical choice. The C3 clearance allows for slight misalignment without compromising efficiency.

In automation systems, 6205-2RS1/C3W64 Bearing supports robotic arms and conveyor belts, where consistent performance is key. The metric sizing ensures compatibility with a range of European and Asian equipment.
