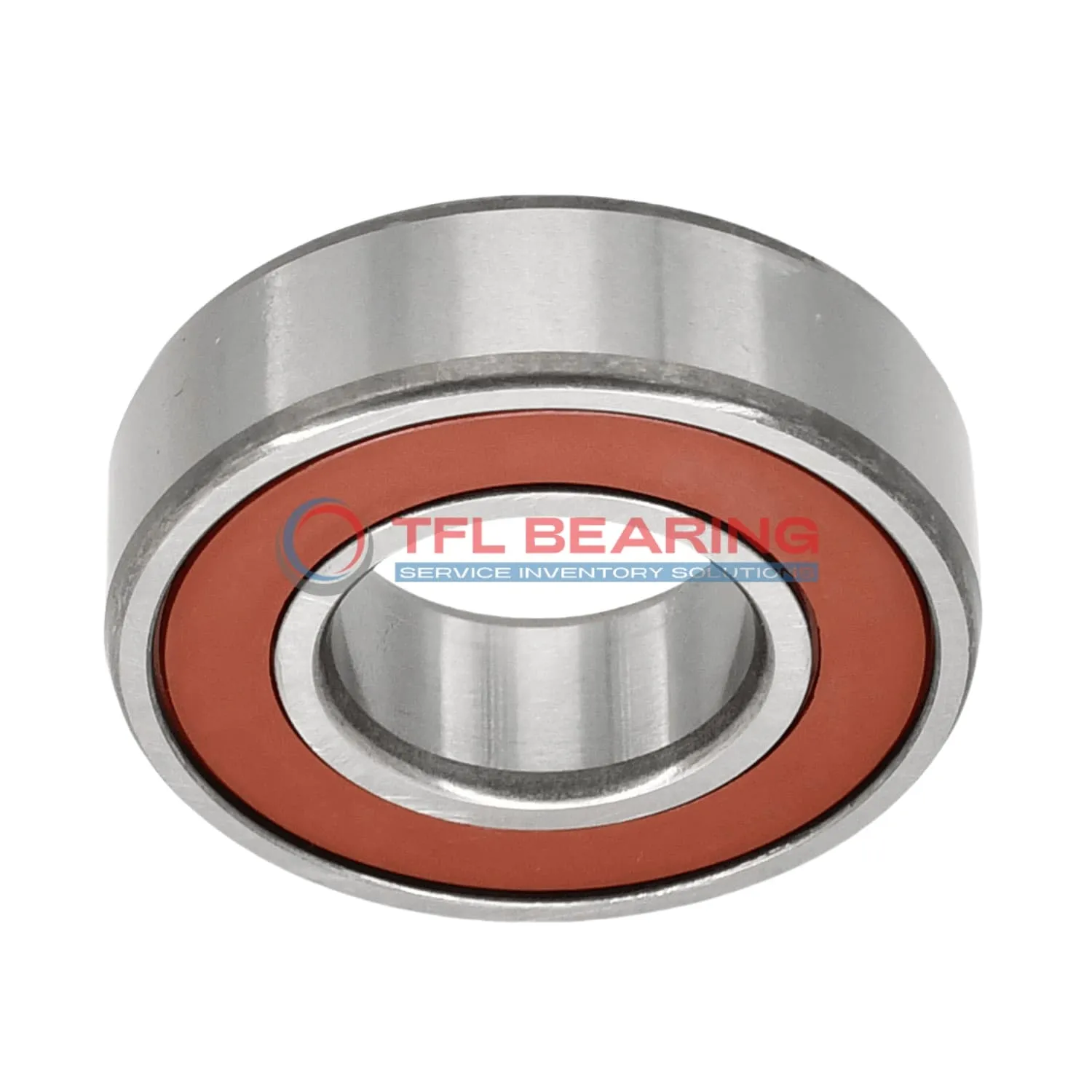

Single Row Deep Groove Ball Bearings 6204-2RSH/VL256W64F

Single Row Deep Groove Ball Bearings 6204-2RSH/VL256W64F

The 6204-2RSH/VL256W64F is a single-row deep groove ball bearing with a 20mm bore and 47mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 2878 lbf and spins smoothly at speeds up to 15,000 RPM.

Its sealed design keeps out dust and dirt, while the solid oil lubrication ensures long-lasting performance with minimal maintenance. The bearing operates reliably in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for applications like electric motors or small machinery where radial loads are common.

Weighing just 106g, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6204-2RSH/VL256W64F
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 20 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 47 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 14 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 2878 lbf
  • Static Radial Load 1495 lbf
  • Max Speed 15000 rpm
  • Weight 106 g
Single Row Deep Groove Ball Bearings 6204-2RSH/VL256W64F dimension drawing
Download DWG Download PDF

Features

How Does 6204-2RSH/VL256W64F Bearing Reduce Friction?

6204-2RSH/VL256W64F Bearing features a sealed design with solid oil lubrication, ensuring smooth operation and reduced friction.

Its chrome steel construction enhances durability while maintaining low noise levels during high-speed rotations.

The bearing can handle dynamic radial loads up to 2878 lbf, making it suitable for various industrial applications.

With a maximum speed of 15,000 rpm, it offers reliable performance in demanding conditions.

Application

Industrial Uses of 6204-2RSH/VL256W64F Bearing
This bearing is commonly used in electric motors and pumps, where its sealed design helps keep contaminants out while maintaining smooth rotation. The solid oil lubrication ensures long service life even in dusty environments.

Where Is 6204-2RSH/VL256W64F Bearing Used?
You’ll find it in household appliances like washing machines, where its radial load capacity handles the spinning drum effectively. The chrome steel construction provides durability for daily use.

Built for Heavy-Duty Use: 6204-2RSH/VL256W64F Bearing
It works well in conveyor systems, supporting radial loads in material handling applications. The ABEC 1 tolerance offers reliable performance for most industrial needs.

Automotive vs Industrial: Applications of 6204-2RSH/VL256W64F Bearing
In cars, it’s suitable for alternators and small gearboxes, while factories use it for light machinery. The temperature range allows operation in various climates.

Perfect Fit for Automation: 6204-2RSH/VL256W64F Bearing
This bearing appears in robotic arms and packaging equipment, where its sealed design prevents lubricant leakage. The metric sizing makes replacement straightforward.
