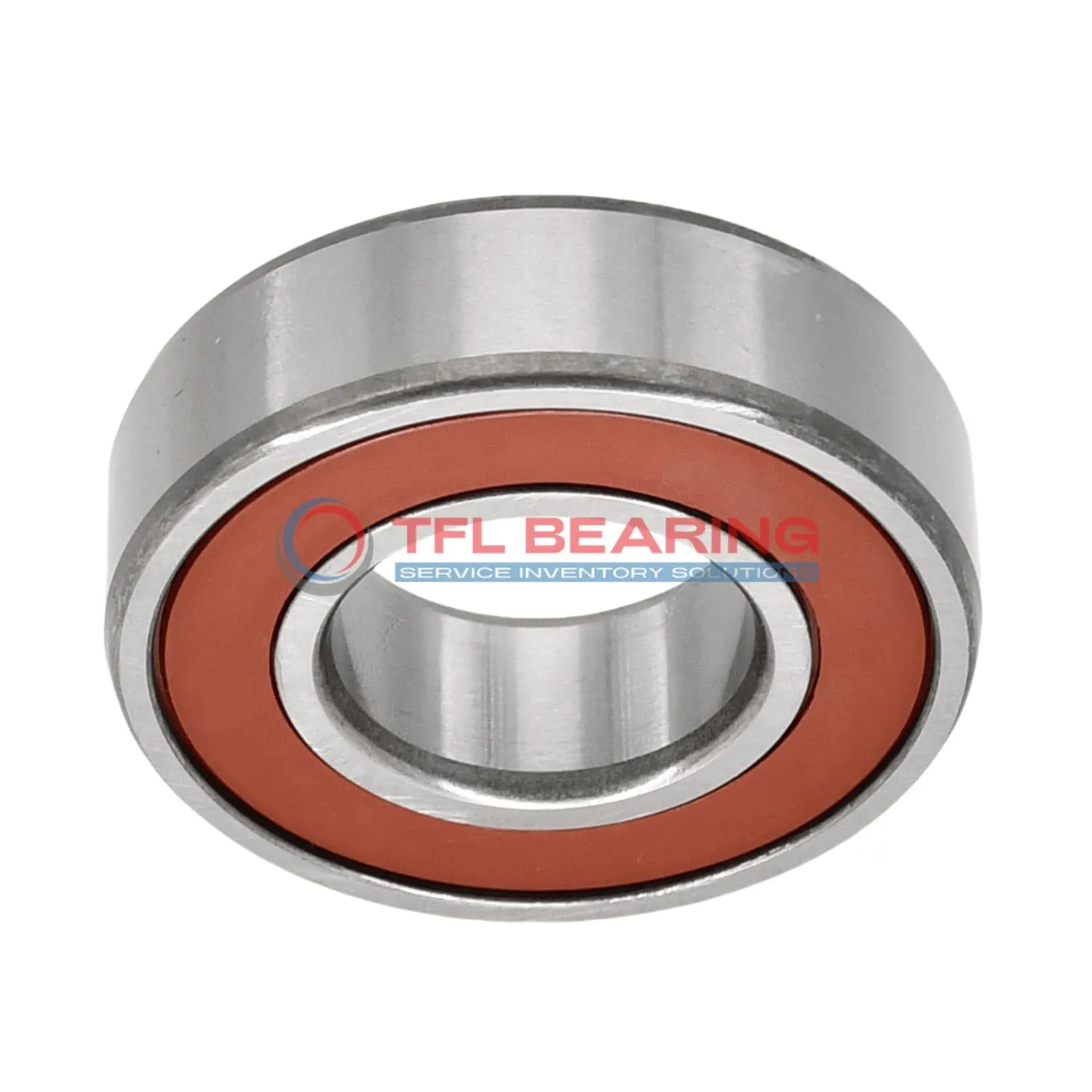

Single Row Deep Groove Ball Bearings 6204-2RSH/C3W64

Single Row Deep Groove Ball Bearings 6204-2RSH/C3W64

The 6204-2RSH/C3W64 is a single row deep groove ball bearing with a 20mm bore and 47mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 2878 lbf and spins smoothly at speeds up to 15,000 RPM.

Its sealed design keeps dirt out and solid oil lubrication ensures long-lasting performance without frequent maintenance. The bearing operates well in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for applications like electric motors or small machinery where reliable radial load support is needed.

Weighing just 106g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6204-2RSH/C3W64
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 20 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 47 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 14 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 2878 lbf
  • Static Radial Load 1495 lbf
  • Max Speed 15000 rpm
  • Weight 106 g
  • price（$） 5.859

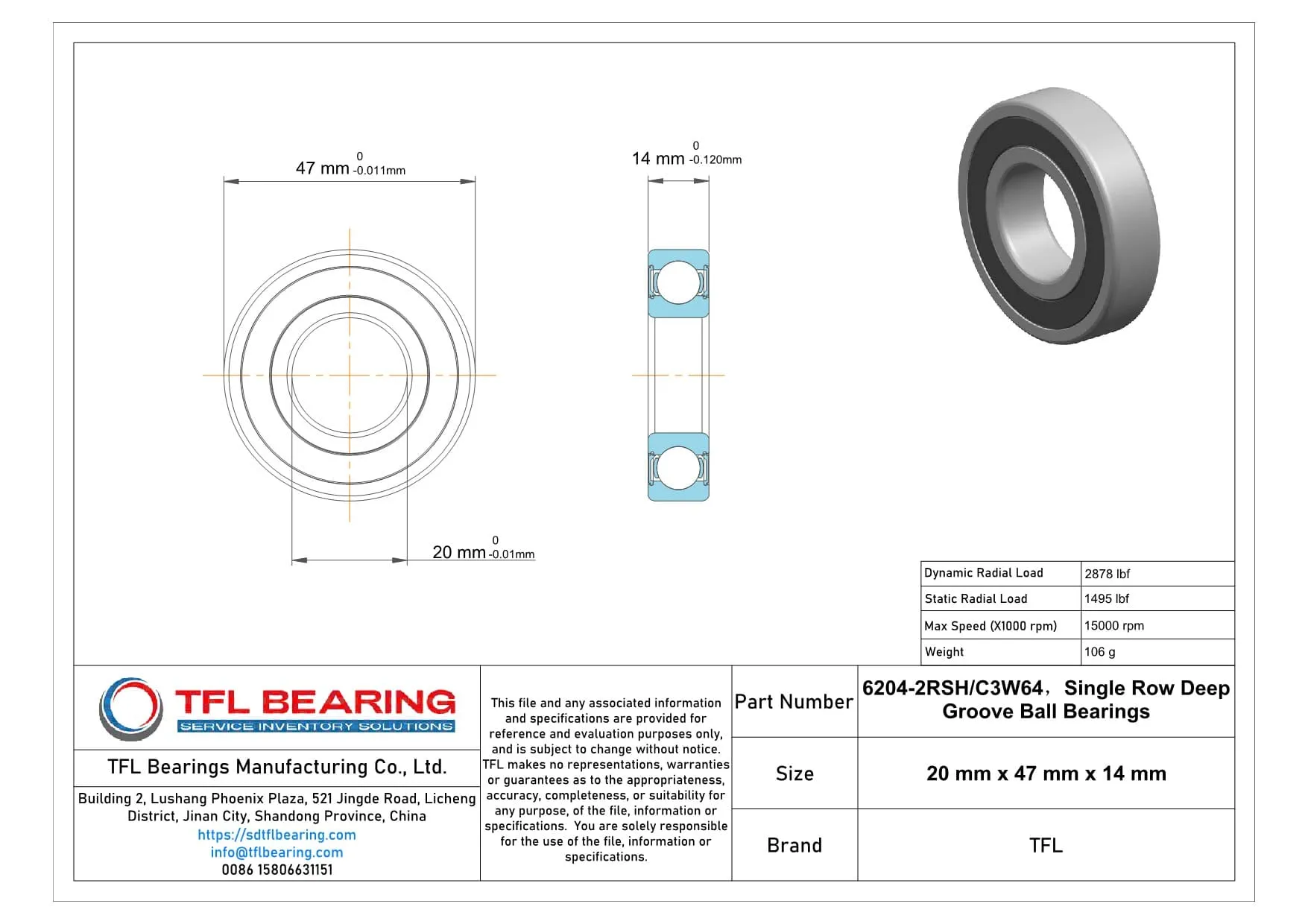

Single Row Deep Groove Ball Bearings 6204-2RSH/C3W64 dimension drawing
Download DWG Download PDF

Features

Why Choose 6204-2RSH/C3W64 Bearing for Precision Tasks?

6204-2RSH/C3W64 Bearing features a sealed design with solid oil lubrication, ensuring smooth operation in radial load applications.
Its chrome steel construction provides durability and resistance to wear, making it suitable for various industrial uses.

The bearing can handle dynamic radial loads up to 2878 lbf, offering reliable performance under pressure.
With a maximum speed of 15,000 rpm, it balances high-speed operation with long-term reliability.

6204-2RSH/C3W64 Bearing operates efficiently in temperatures ranging from -30°C to 120°C.
Its precision engineering ensures consistent performance, reducing the need for frequent maintenance.

Application

Common Applications of 6204-2RSH/C3W64 Bearing
6204-2RSH/C3W64 Bearing is widely used in industrial machinery, such as electric motors and pumps, where its sealed design keeps contaminants out and extends service life. The solid oil lubrication ensures smooth operation even in dusty environments.

In automotive applications, 6204-2RSH/C3W64 Bearing fits well in alternators and cooling fans, providing reliable radial load support. Its C3 clearance allows for slight misalignments, making it adaptable to various vehicle designs.

For home appliances like washing machines, 6204-2RSH/C3W64 Bearing offers quiet and efficient performance. The chrome steel construction ensures durability, while the sealed design prevents grease leakage.

In automation equipment, 6204-2RSH/C3W64 Bearing is a go-to choice for conveyor rollers and small robotic arms. Its metric sizing and ABEC 1 tolerance make it easy to integrate into precision systems.
