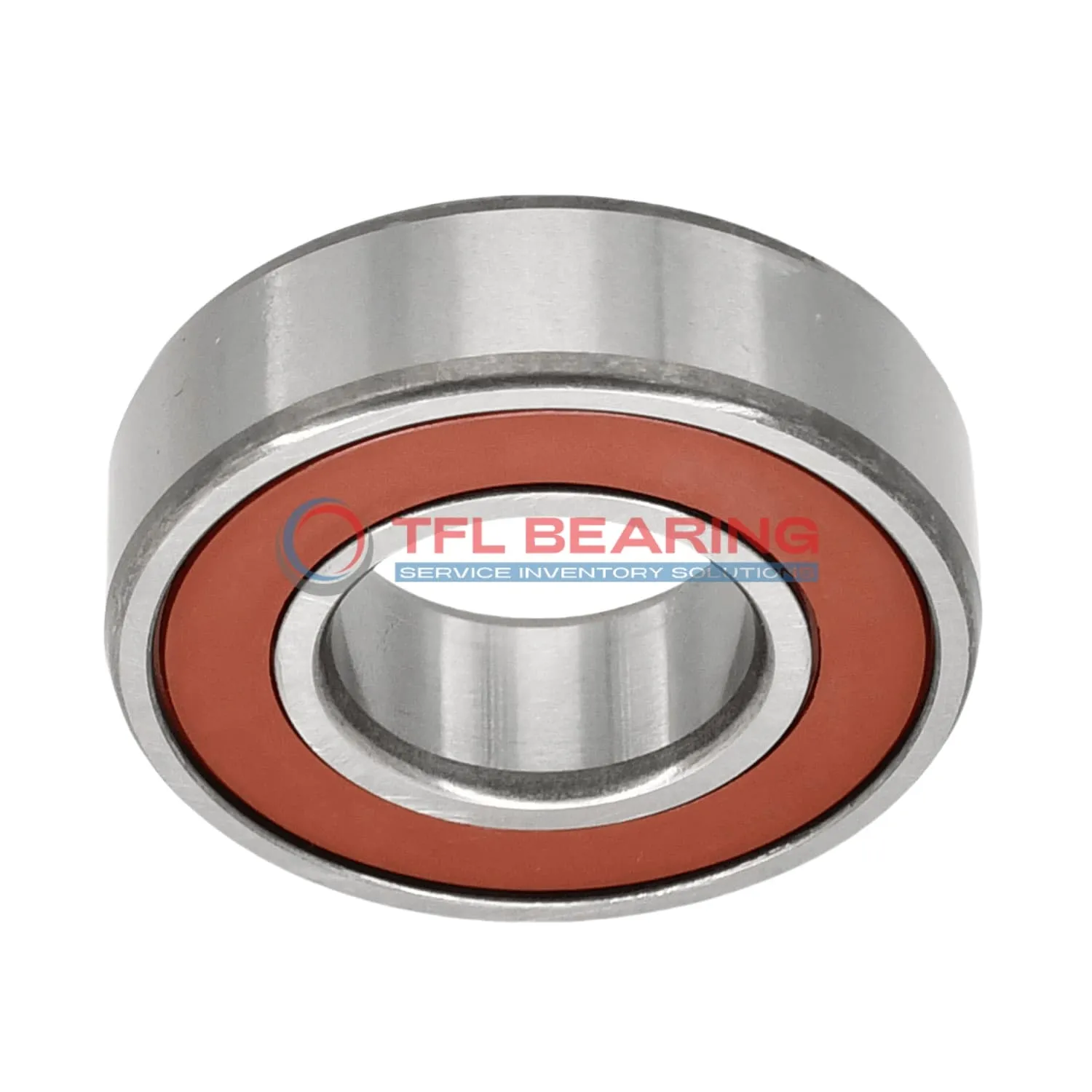

Single Row Deep Groove Ball Bearings 6204-2RSH/C3LTVT210

Single Row Deep Groove Ball Bearings 6204-2RSH/C3LTVT210

The 6204-2RSH/C3LTVT210 is a sealed single-row deep groove ball bearing with a 20mm bore and 47mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 2878 lbf and spins smoothly at speeds up to 15000 RPM.

Its sealed design keeps dirt out and grease in, making it low-maintenance, while the C3 radial clearance ensures reliable performance under varying temperatures. The bearing operates well in conditions from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a cost-effective replacement option. Ideal for electric motors, pumps, or small machinery where consistent radial load support is needed.

Weighing just 106g, it’s lightweight yet robust for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6204-2RSH/C3LTVT210
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 20 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 47 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 14 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 2878 lbf
  • Static Radial Load 1495 lbf
  • Max Speed 15000 rpm
  • Weight 106 g
Single Row Deep Groove Ball Bearings 6204-2RSH/C3LTVT210 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6204-2RSH/C3LTVT210 Bearing

6204-2RSH/C3LTVT210 Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 2878 lbf.
Its sealed design protects against contaminants, ensuring smooth operation in various environments.

The C3 radial clearance allows for thermal expansion, making it suitable for high-speed applications.
With a maximum speed of 15,000 rpm, it delivers reliable performance under demanding conditions.

6204-2RSH/C3LTVT210 Bearing operates efficiently within a temperature range of -30°C to 120°C.
Its durable construction ensures long service life, reducing maintenance needs.

The sealed design of 6204-2RSH/C3LTVT210 Bearing keeps lubrication intact, enhancing performance.
Its compact size of 20 mm×47 mm×14 mm makes it ideal for space-constrained applications.

Application

Industrial Uses of 6204-2RSH/C3LTVT210 Bearing
6204-2RSH/C3LTVT210 Bearing is commonly used in conveyor systems, where its sealed design helps keep out dust and debris. The C3 radial clearance ensures smooth operation even under varying loads.

Where Is 6204-2RSH/C3LTVT210 Bearing Used?
In automotive applications, 6204-2RSH/C3LTVT210 Bearing fits well in electric motors and pumps, thanks to its reliable performance and compatibility with metric systems. The chrome steel construction adds durability for long-term use.

Perfect Fit for Automation: 6204-2RSH/C3LTVT210 Bearing
For robotic arms and automated machinery, 6204-2RSH/C3LTVT210 Bearing offers precise movement and low maintenance. Its sealed design reduces the need for frequent lubrication, making it ideal for high-speed operations.

Medical vs Industrial: Where 6204-2RSH/C3LTVT210 Bearing Excels
In medical devices like centrifuges, 6204-2RSH/C3LTVT210 Bearing provides quiet and reliable performance. Meanwhile, in industrial settings, it handles radial loads efficiently, ensuring consistent operation in machinery.

Key Fields for 6204-2RSH/C3LTVT210 Bearing
Household appliances like washing machines benefit from 6204-2RSH/C3LTVT210 Bearing’s durability and low noise levels. The sealed design also protects against moisture, extending its lifespan in everyday use.
