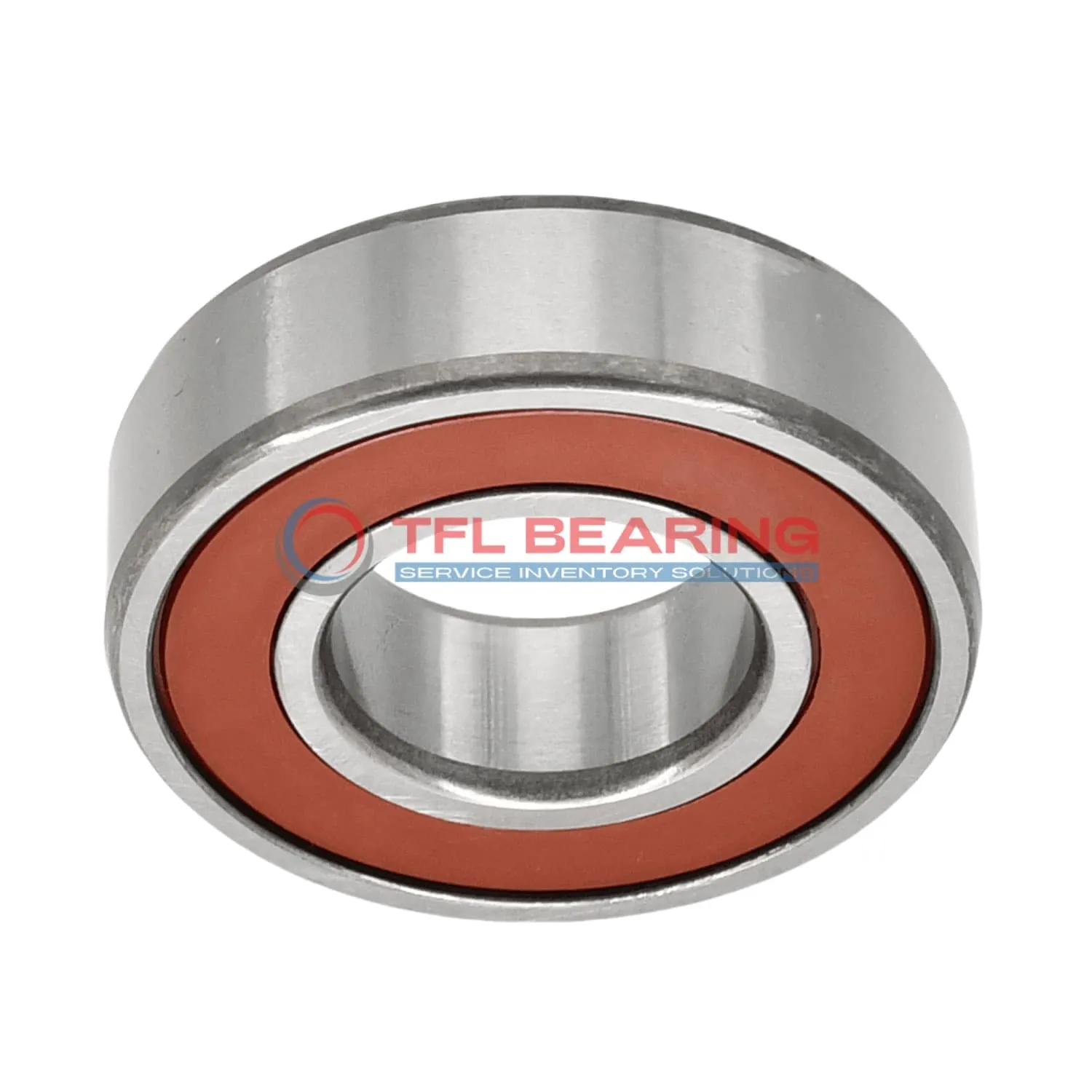

Single Row Deep Groove Ball Bearings 6204-2RSH/C3GWF

Single Row Deep Groove Ball Bearings 6204-2RSH/C3GWF

The 6204-2RSH/C3GWF is a single-row deep groove ball bearing with a 20mm bore and 47mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 2878 lbf and spins smoothly at speeds up to 15,000 RPM.

Its sealed design keeps dirt out and grease in, making it low-maintenance, while the C3 clearance ensures reliable performance under varying temperatures. The bearing operates well in conditions from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Ideal for electric motors, pumps, or small machinery where consistent radial load support is needed.

Weighing just 106g, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6204-2RSH/C3GWF
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 20 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 47 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 14 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 2878 lbf
  • Static Radial Load 1495 lbf
  • Max Speed 15000 rpm
  • Weight 106 g

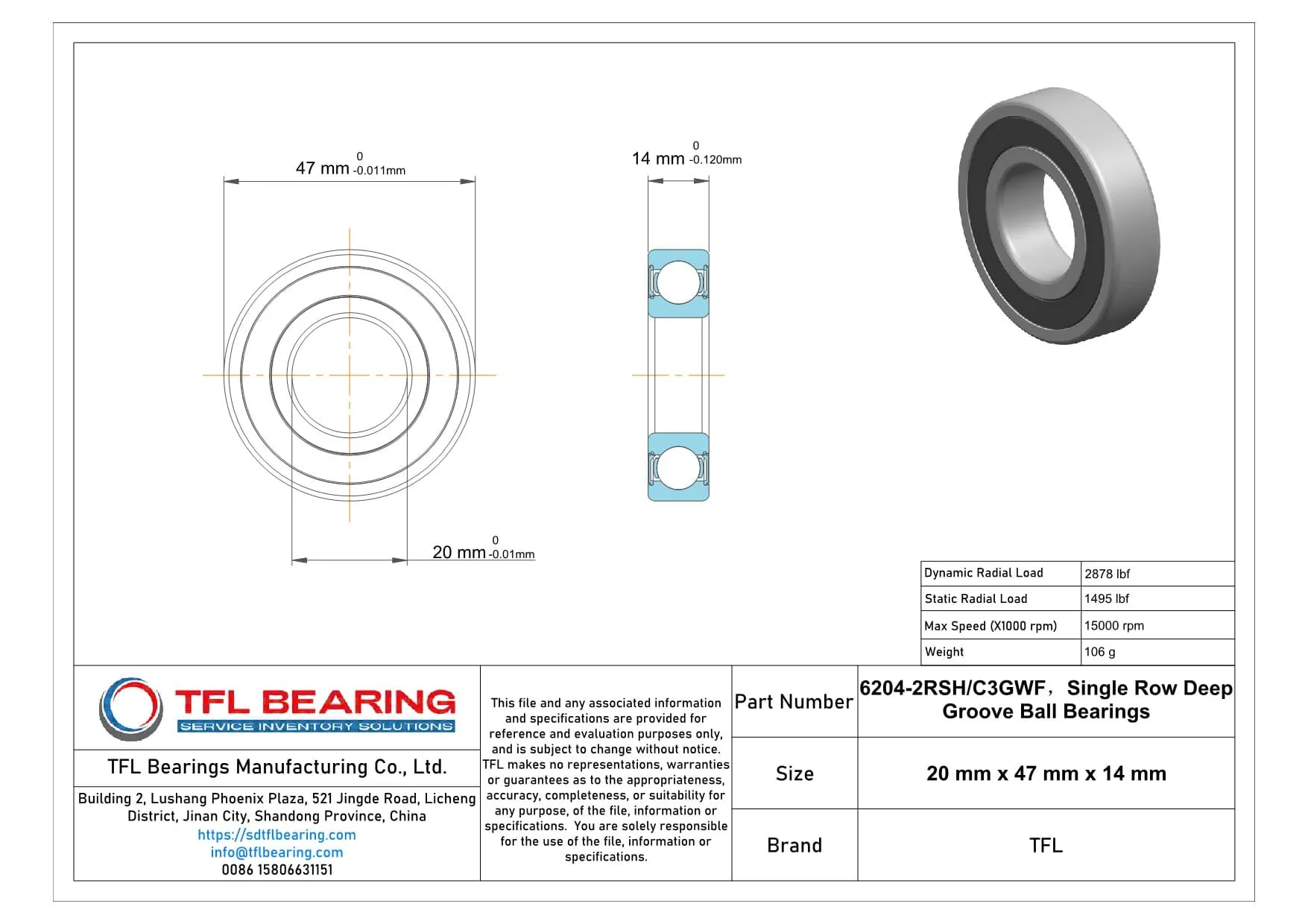

Single Row Deep Groove Ball Bearings 6204-2RSH/C3GWF dimension drawing
Download DWG Download PDF

Features

Performance Features of 6204-2RSH/C3GWF Bearing

6204-2RSH/C3GWF Bearing is built with chrome steel rings and balls, offering strong radial load support.
Its dynamic radial load capacity reaches 2878 lbf, making it suitable for various applications.

The sealed design of 6204-2RSH/C3GWF Bearing protects against dust and moisture, enhancing durability.
With a maximum speed of 15,000 rpm, it ensures smooth operation in high-speed conditions.

6204-2RSH/C3GWF Bearing operates efficiently within a temperature range of -30°C to 120°C.
Its C3 radial clearance provides flexibility for different operational needs.

The chrome steel cage in 6204-2RSH/C3GWF Bearing maintains ball alignment, reducing wear.
This design contributes to a longer service life and consistent performance.

6204-2RSH/C3GWF Bearing’s compact size (20 mm×47 mm×14 mm) makes it ideal for space-constrained applications.
Its sealed construction also reduces the need for frequent maintenance.

Application

Common Applications of 6204-2RSH/C3GWF Bearing
In industrial settings, 6204-2RSH/C3GWF Bearing is commonly used in electric motors and pumps, where its sealed design helps keep contaminants out. The C3 clearance ensures reliable performance even under varying thermal conditions.

Where Is 6204-2RSH/C3GWF Bearing Used?
You’ll often find 6204-2RSH/C3GWF Bearing in automotive applications like alternators and water pumps, thanks to its radial load capacity. The chrome steel construction provides durability in high-speed environments.

Ideal for Precision: 6204-2RSH/C3GWF Bearing
For medical devices such as dental drills, 6204-2RSH/C3GWF Bearing offers smooth operation and low noise. Its sealed design also makes it suitable for clean environments where contamination is a concern.

Automotive vs Industrial: Applications of 6204-2RSH/C3GWF Bearing
In cars, 6204-2RSH/C3GWF Bearing handles radial loads in components like fans and pulleys. In factories, it’s a go-to for conveyor systems due to its balanced performance and ease of maintenance.
