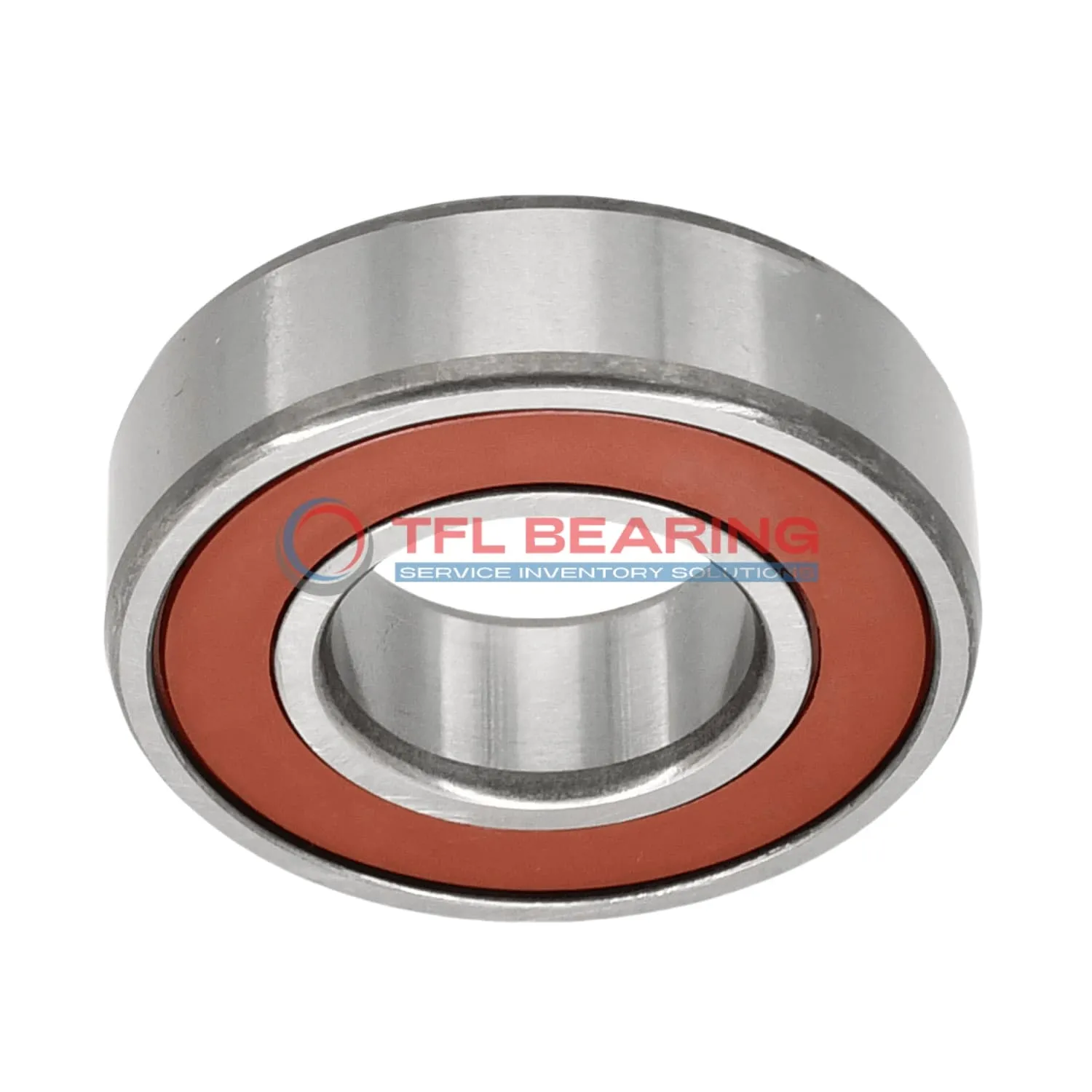

Single Row Deep Groove Ball Bearings 6204-2RS1

Single Row Deep Groove Ball Bearings 6204-2RS1

The 6204-2RS1 is a single-row deep groove ball bearing with a 20mm bore and 47mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 2878 lbf and spins smoothly at speeds up to 15,000 RPM.

Its sealed design keeps dirt out and grease in, making it low-maintenance for long-term use. The chrome steel cage adds durability, ensuring reliable performance in various conditions.

This bearing works well in temperatures from -30°C to 120°C, suitable for many industrial settings. It’s interchangeable with SKF models, offering a practical replacement option.

Weighing just 106g, it’s lightweight yet robust. Ideal for applications like electric motors or small machinery where radial loads are common. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6204-2RS1
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 20 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 47 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 14 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 2878 lbf
  • Static Radial Load 1495 lbf
  • Max Speed 15000 rpm
  • Weight 106 g
Single Row Deep Groove Ball Bearings 6204-2RS1 dimension drawing
Download DWG Download PDF

Features

Why Choose 6204-2RS1 Bearing for Precision Tasks?

6204-2RS1 Bearing features a sealed design, protecting it from dust and moisture for consistent performance.
Its chrome steel construction ensures durability and resistance to wear in radial load applications.

With a dynamic radial load capacity of 2878 lbf, 6204-2RS1 Bearing handles demanding tasks with ease.
The bearing operates smoothly at speeds up to 15,000 rpm, making it suitable for high-speed applications.

6204-2RS1 Bearing’s temperature range of -30°C to 120°C allows it to perform reliably in various environments.
Its precision engineering and sealed design reduce maintenance needs, saving time and costs.

Application

Common Applications of 6204-2RS1 Bearing
6204-2RS1 Bearing is widely used in industrial machinery, such as conveyor systems and electric motors, where its sealed design helps keep out dust and debris. The chrome steel construction ensures durability in demanding environments.

In automotive applications, 6204-2RS1 Bearing can be found in components like alternators and water pumps, providing reliable performance under radial loads. Its metric sizing makes it a versatile choice for various vehicle models.

For home appliances, 6204-2RS1 Bearing works well in devices like washing machines and fans, where smooth operation is essential. The sealed design also helps extend the bearing’s lifespan by reducing contamination.

In automation systems, 6204-2RS1 Bearing supports robotic arms and small machinery, offering consistent performance. The ABEC 1 tolerance ensures adequate precision for most general-purpose applications.
