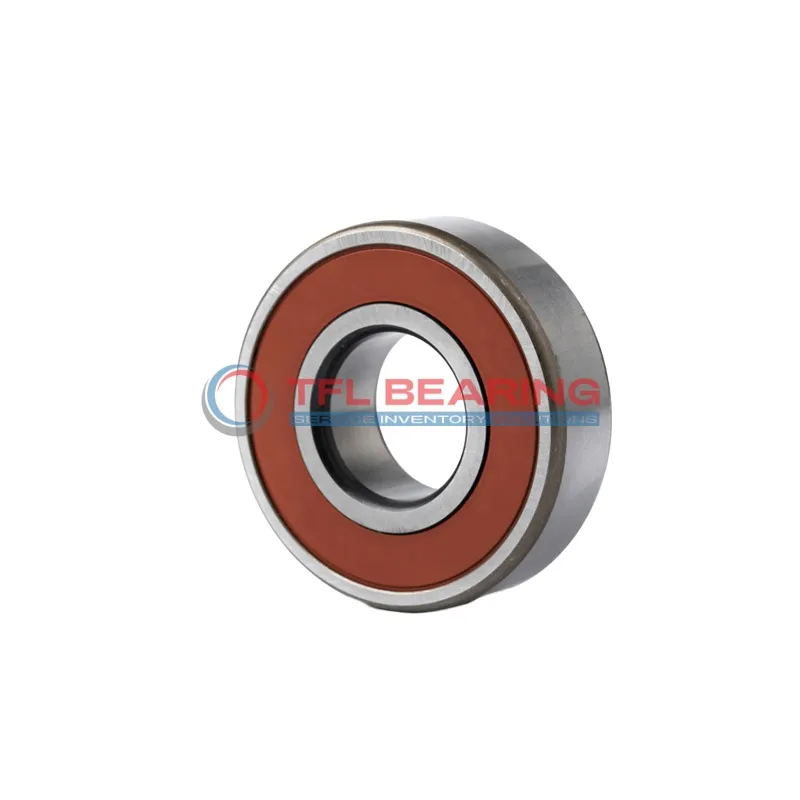

Single Row Deep Groove Ball Bearings 6203-2RSL/W64

Single Row Deep Groove Ball Bearings 6203-2RSL/W64

The 6203-2RSL/W64 is a sealed single-row deep groove ball bearing with a 17mm bore and 40mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 2147 lbf and spins smoothly at speeds up to 17,000 RPM.

Its sealed design keeps dirt out and solid oil lubrication ensures long-lasting performance with minimal maintenance. The bearing operates reliably in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for applications like electric motors or small machinery where radial loads are common.

Weighing just 65g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6203-2RSL/W64
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 17 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 40 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 12 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 2147 lbf
  • Static Radial Load 1079 lbf
  • Max Speed 17000 rpm
  • Weight 65 g
Single Row Deep Groove Ball Bearings 6203-2RSL/W64 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6203-2RSL/W64 Bearing

6203-2RSL/W64 Bearing is designed with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 2147 lbf, ensuring reliable performance in various applications.

The sealed design and solid oil lubrication reduce maintenance needs while keeping contaminants out.
With a maximum speed of 17,000 rpm, it balances durability and efficiency.

6203-2RSL/W64 Bearing operates smoothly in temperatures ranging from -30°C to 120°C.
Its compact size (17 mm×40 mm×12 mm) makes it suitable for space-constrained installations.

Application

Industrial Uses of 6203-2RSL/W64 Bearing
6203-2RSL/W64 Bearing is commonly used in conveyor systems and small electric motors, where its sealed design keeps out dust and debris. The solid oil lubrication ensures long service life with minimal maintenance.

In automotive applications, 6203-2RSL/W64 Bearing fits well in alternators and water pumps, providing smooth rotation under radial loads. Its compact size and metric dimensions make it a versatile choice for various vehicle models.

For household appliances like washing machines, 6203-2RSL/W64 Bearing offers quiet and reliable performance. The chrome steel construction handles everyday wear while maintaining efficiency.

Where Is 6203-2RSL/W64 Bearing Used?
You’ll often find 6203-2RSL/W64 Bearing in office equipment such as printers and scanners, where precision and durability are key. Its sealed design protects against paper dust and other contaminants.

In industrial fans, 6203-2RSL/W64 Bearing ensures smooth operation even at higher speeds. The solid oil lubrication reduces friction, making it ideal for continuous use.

Built for Heavy-Duty Use: 6203-2RSL/W64 Bearing
6203-2RSL/W64 Bearing handles tough conditions in agricultural machinery, like grain conveyors, thanks to its robust chrome steel build. The sealed design also prevents moisture damage in outdoor settings.

For power tools, 6203-2RSL/W64 Bearing provides reliable performance under frequent starts and stops. Its solid oil lubrication keeps it running smoothly even during extended use.
