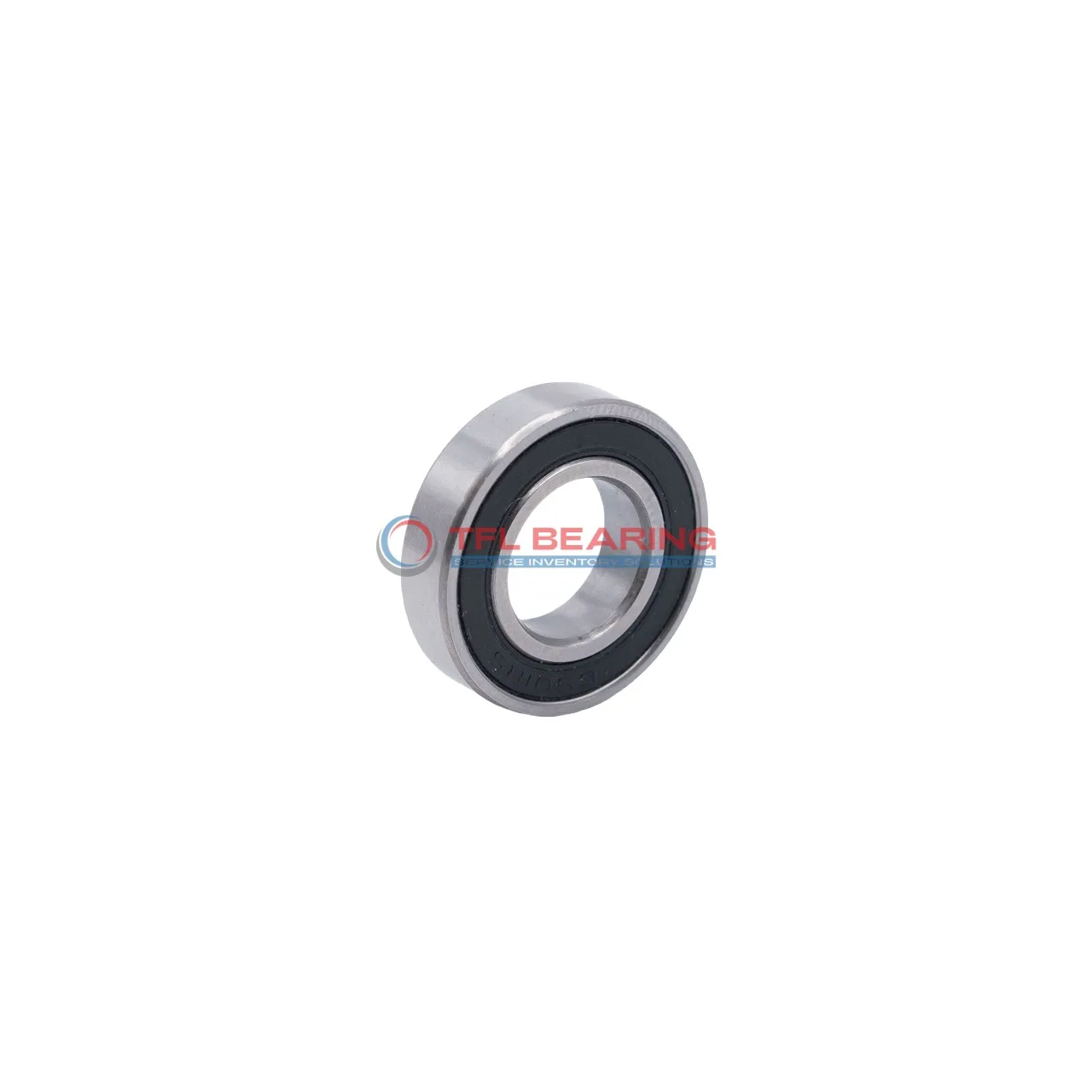

Single Row Deep Groove Ball Bearings 6202-2RSLTN9/C3VT162

Single Row Deep Groove Ball Bearings 6202-2RSLTN9/C3VT162

The 6202-2RSLTN9/C3VT162 is a compact single-row deep groove ball bearing, measuring 15mm by 35mm by 11mm. Made from chrome steel with a nylon cage, it offers reliable radial load support up to 1812 lbf.

Its sealed design keeps dirt out and lubrication in, making it low-maintenance. The bearing handles speeds up to 20,000 RPM and operates in temperatures from -30°C to 120°C.

With a C3 radial clearance, it’s suitable for applications where slight expansion is expected. This model is interchangeable with SKF bearings, ensuring easy replacements.

Ideal for electric motors, pumps, or small machinery where smooth rotation is key. Compliant with RoHS and REACH standards, it’s a safe choice for various industries. Weighing just 45g, it’s lightweight yet durable.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6202-2RSLTN9/C3VT162
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 15 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 35 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 11 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 1812 lbf
  • Static Radial Load 843 lbf
  • Max Speed 20000 rpm
  • Weight 45 g
  • price（$） 4.158
Single Row Deep Groove Ball Bearings 6202-2RSLTN9/C3VT162 dimension drawing
Download DWG Download PDF

Features

How Does 6202-2RSLTN9/C3VT162 Bearing Reduce Friction?

6202-2RSLTN9/C3VT162 Bearing features a sealed design, preventing contaminants from entering and reducing friction.
The chrome steel construction ensures smooth operation, even at high speeds up to 20,000 rpm.

Its nylon cage minimises wear, enhancing the bearing’s longevity and reliability.
With a dynamic radial load capacity of 1812 lbf, it performs well in various radial load applications.

The C3 radial clearance allows for thermal expansion, maintaining performance in different temperatures.
This makes 6202-2RSLTN9/C3VT162 Bearing suitable for a wide range of industrial uses.

Application

Key Fields for 6202-2RSLTN9/C3VT162 Bearing
In industrial settings, 6202-2RSLTN9/C3VT162 Bearing works well in electric motors and pumps, thanks to its sealed design that keeps contaminants out. The C3 clearance ensures smooth operation even under varying thermal conditions.

How Does 6202-2RSLTN9/C3VT162 Bearing Improve Performance?
For automotive applications like alternators and water pumps, 6202-2RSLTN9/C3VT162 Bearing offers reliable radial load support. Its nylon cage reduces friction, making it a quiet and efficient choice for long-term use.

Built for Heavy-Duty Use: 6202-2RSLTN9/C3VT162 Bearing
In household appliances such as washing machines, 6202-2RSLTN9/C3VT162 Bearing handles constant rotation with ease. The chrome steel construction ensures durability, while the sealed design protects against dust and moisture.

Automotive vs Industrial: Applications of 6202-2RSLTN9/C3VT162 Bearing
Whether in car transmissions or conveyor systems, 6202-2RSLTN9/C3VT162 Bearing delivers consistent performance. Its ABEC 1 tolerance makes it versatile for both precision and general-purpose machinery.
