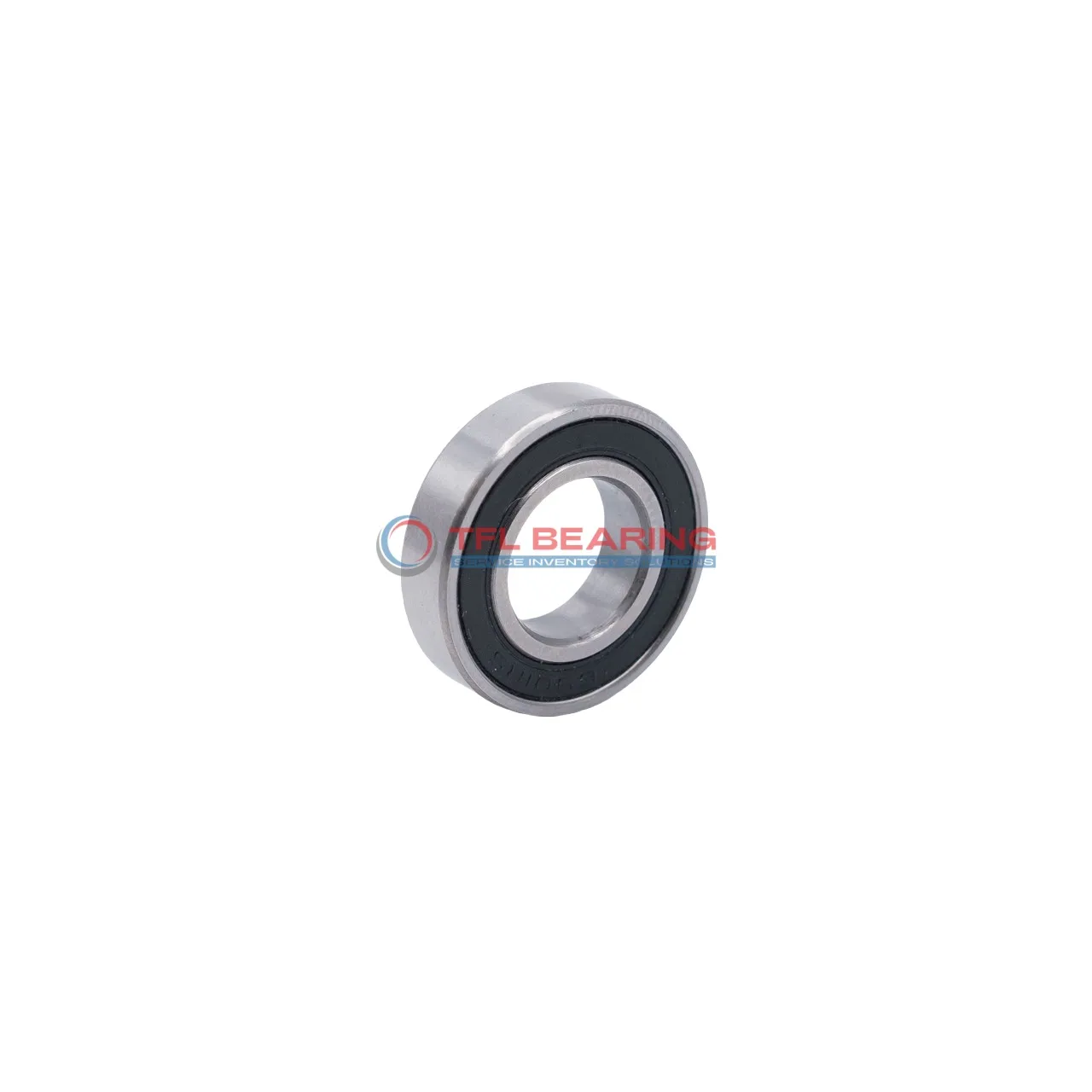

Single Row Deep Groove Ball Bearings 6202-2RSH/W64F

Single Row Deep Groove Ball Bearings 6202-2RSH/W64F

The 6202-2RSH/W64F is a compact single-row deep groove ball bearing, measuring 15mm by 35mm by 11mm, crafted from durable chrome steel. It handles radial loads up to 1812 lbf and spins smoothly at speeds up to 20,000 RPM.

Its sealed design keeps dirt out and solid oil lubrication ensures long-lasting performance with minimal maintenance. The bearing operates reliably in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for electric motors, pumps, or small machinery where radial loads are common.

Weighing just 45g, it’s lightweight yet robust for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6202-2RSH/W64F
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 15 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 35 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 11 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 1812 lbf
  • Static Radial Load 843 lbf
  • Max Speed 20000 rpm
  • Weight 45 g
  • price（$） 4.896
Single Row Deep Groove Ball Bearings 6202-2RSH/W64F dimension drawing
Download DWG Download PDF

Features

Performance Features of 6202-2RSH/W64F Bearing

6202-2RSH/W64F Bearing is designed with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 1812 lbf, ensuring reliable performance in various applications.

The sealed design and solid oil lubrication reduce maintenance needs, making it ideal for long-term use.
With a maximum speed of 20,000 rpm, it balances efficiency and durability.

6202-2RSH/W64F Bearing operates in temperatures from -30°C to 120°C, suitable for diverse environments.
The chrome steel cage ensures smooth operation, minimising wear and extending service life.

Its compact size (15 mm×35 mm×11 mm) allows for easy integration into different machinery.
The ABEC 1 tolerance class ensures consistent performance in precision applications.

Application

Common Applications of 6202-2RSH/W64F Bearing
In industrial settings, 6202-2RSH/W64F Bearing is commonly used in electric motors and pumps, where its sealed design keeps contaminants out. The solid oil lubrication ensures long service life even in dusty environments.
For automotive applications, 6202-2RSH/W64F Bearing fits well in alternators and small gearboxes, providing smooth radial load support. Its compact size and metric dimensions make it versatile for various vehicle models.
In household appliances like washing machines, 6202-2RSH/W64F Bearing offers quiet and reliable operation. The chrome steel construction handles everyday wear while maintaining consistent performance.
