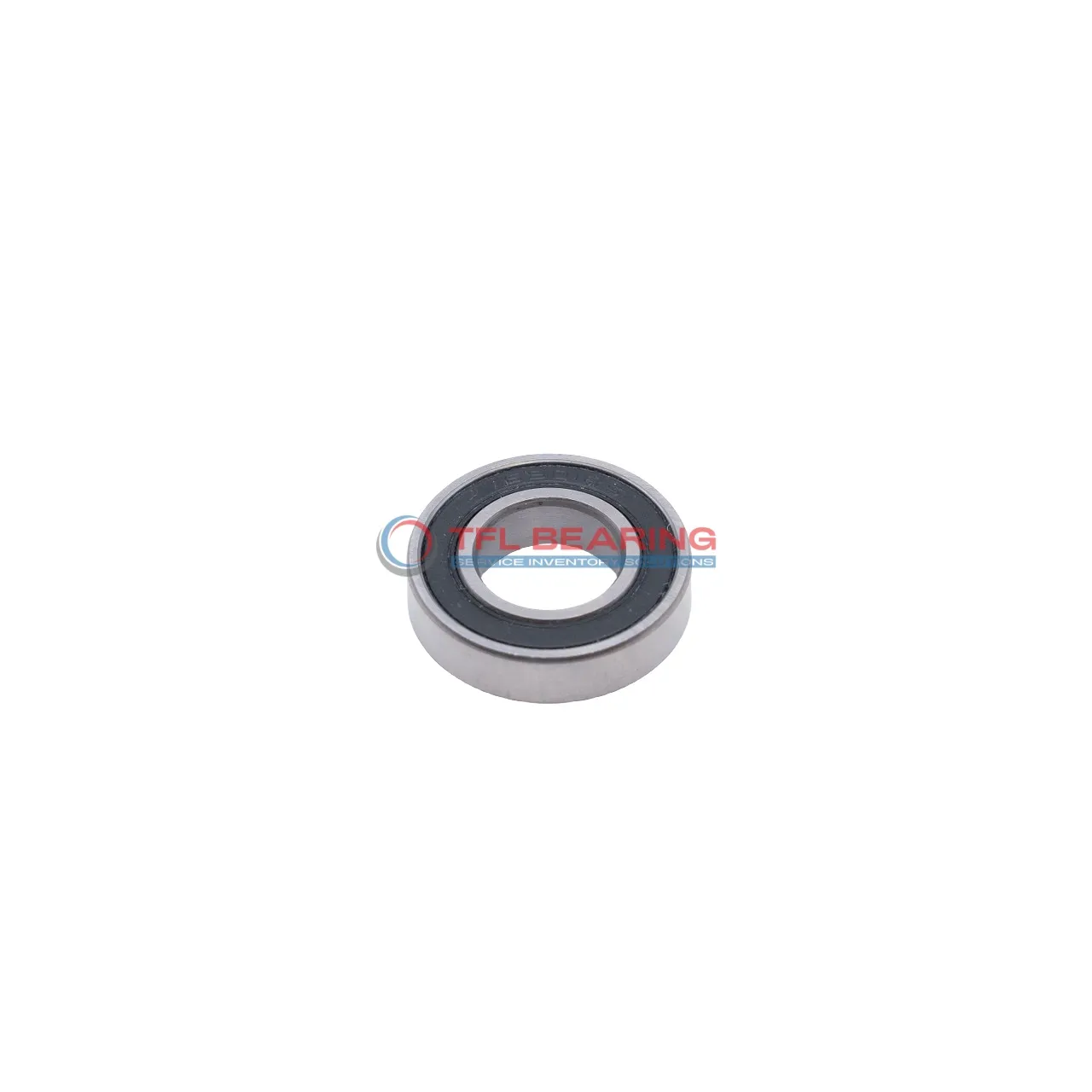

Single Row Deep Groove Ball Bearings 6201-2RSH/W64F

Single Row Deep Groove Ball Bearings 6201-2RSH/W64F

The 6201-2RSH/W64F is a compact single-row deep groove ball bearing, measuring 12mm by 32mm by 10mm. Made from chrome steel, it’s built to handle radial loads up to 1529 lbf and speeds of 22000 RPM.

Its sealed design keeps dirt out and solid oil lubrication ensures smooth operation with minimal maintenance. The bearing works reliably in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making replacements straightforward. It’s a great fit for small motors, pumps, or appliances where space is limited.

Weighing just 37g, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe use in various industries.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6201-2RSH/W64F
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 12 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 32 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 10 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 1529 lbf
  • Static Radial Load 686 lbf
  • Max Speed 22000 rpm
  • Weight 37 g
  • price（$） 5.247
Single Row Deep Groove Ball Bearings 6201-2RSH/W64F dimension drawing
Download DWG Download PDF

Features

Performance Features of 6201-2RSH/W64F Bearing

6201-2RSH/W64F Bearing is designed for radial loads, with a dynamic radial load capacity of 1529 lbf for reliable performance.
The sealed construction keeps contaminants out, ensuring smooth operation in various environments.

Its chrome steel rings and balls provide durability, while the solid oil lubrication reduces maintenance needs.
With a maximum speed of 22,000 rpm, it offers both efficiency and longevity.

The bearing operates in temperatures from -30°C to 120°C, making it suitable for diverse applications.
Its ABEC 1 tolerance ensures consistent performance without unnecessary complexity.

Application

Common Applications of 6201-2RSH/W64F Bearing
In industrial settings, 6201-2RSH/W64F Bearing is a go-to for electric motors and pumps, thanks to its sealed design that keeps contaminants out. The solid oil lubrication ensures long service life even in dusty environments.

Automotive fans will appreciate 6201-2RSH/W64F Bearing in alternators and water pumps, where its radial load capacity handles constant vibration. The metric sizing makes it a straightforward replacement for many European and Asian models.

For home appliances like washing machines, 6201-2RSH/W64F Bearing’s quiet operation and durability make it ideal. The chrome steel construction resists wear, while the sealed design prevents grease leakage.

In small machinery like power tools, 6201-2RSH/W64F Bearing’s compact size and high-speed capability shine. The ABEC 1 tolerance ensures reliable performance without over-engineering for most DIY applications.

Medical device manufacturers choose 6201-2RSH/W64F Bearing for lab equipment where consistent rotation is key. The temperature range suits both sterilisation cycles and chilled environments.
