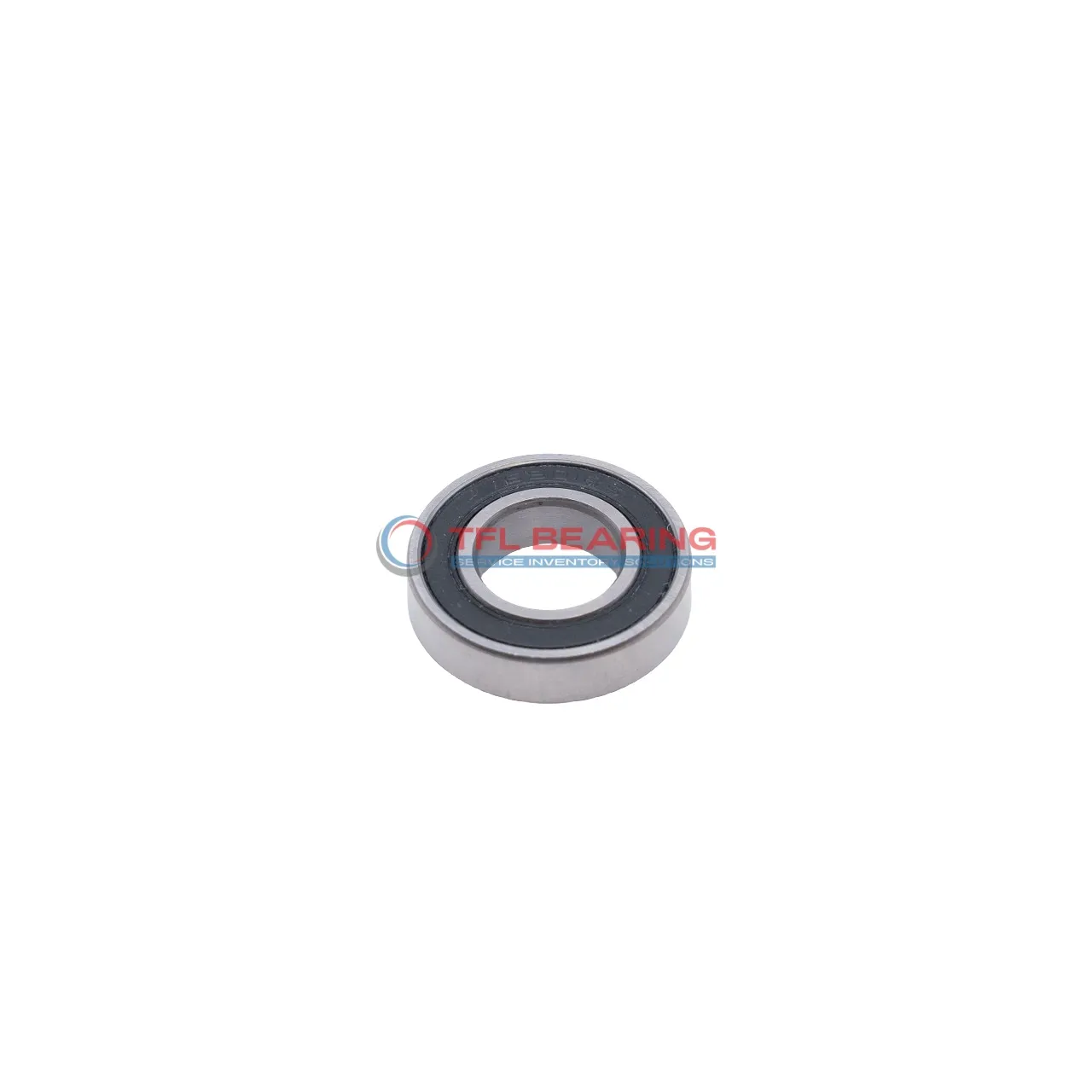

Single Row Deep Groove Ball Bearings 6201-2RSH/C3LHT23F7

Single Row Deep Groove Ball Bearings 6201-2RSH/C3LHT23F7

The 6201-2RSH/C3LHT23F7 is a compact single-row deep groove ball bearing, measuring 12mm by 32mm by 10mm. Made from durable chrome steel, it handles radial loads up to 1529 lbf and spins smoothly at speeds up to 22000 RPM.

Its sealed design keeps dirt out and grease in, making it low-maintenance. The C3 radial clearance allows for slight misalignment or thermal expansion without compromising performance.

This bearing works well in temperatures from -30°C to 120°C, suitable for various environments. It’s interchangeable with SKF models, offering a reliable replacement option.

Ideal for applications like electric motors or small machinery where space is limited but performance is key. Weighing just 37g, it’s lightweight yet sturdy for its size. Compliant with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6201-2RSH/C3LHT23F7
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 12 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 32 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 10 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 1529 lbf
  • Static Radial Load 686 lbf
  • Max Speed 22000 rpm
  • Weight 37 g
Single Row Deep Groove Ball Bearings 6201-2RSH/C3LHT23F7 dimension drawing
Download DWG Download PDF

Features

How Does 6201-2RSH/C3LHT23F7 Bearing Reduce Friction?

6201-2RSH/C3LHT23F7 Bearing features a single-row deep groove design, optimised for smooth radial load handling.
The chrome steel construction ensures durability while reducing friction during operation.
With a maximum speed of 22,000 rpm, it delivers efficient performance in various applications.
Its sealed design helps maintain lubrication, further minimising wear and extending service life.

Application

Ideal for Precision: 6201-2RSH/C3LHT23F7 Bearing
This bearing is commonly used in industrial equipment like conveyor systems and small electric motors, where its sealed design helps keep out dust and debris. The chrome steel construction ensures durability even in demanding environments.

In automotive applications, 6201-2RSH/C3LHT23F7 Bearing works well in components such as alternators and water pumps, providing smooth rotation under radial loads. Its C3 clearance allows for slight thermal expansion, making it suitable for varying temperatures.

For home appliances, 6201-2RSH/C3LHT23F7 Bearing is a reliable choice in devices like washing machines and fans. The sealed feature reduces maintenance needs, while the compact size fits neatly into tight spaces.

Automation systems benefit from 6201-2RSH/C3LHT23F7 Bearing in robotic arms and small actuators, where consistent performance is key. The high-speed capability ensures efficient operation in repetitive tasks.

Medical devices like dental handpieces often use 6201-2RSH/C3LHT23F7 Bearing for its precision and low noise. The temperature range also makes it suitable for sterilisation processes.
