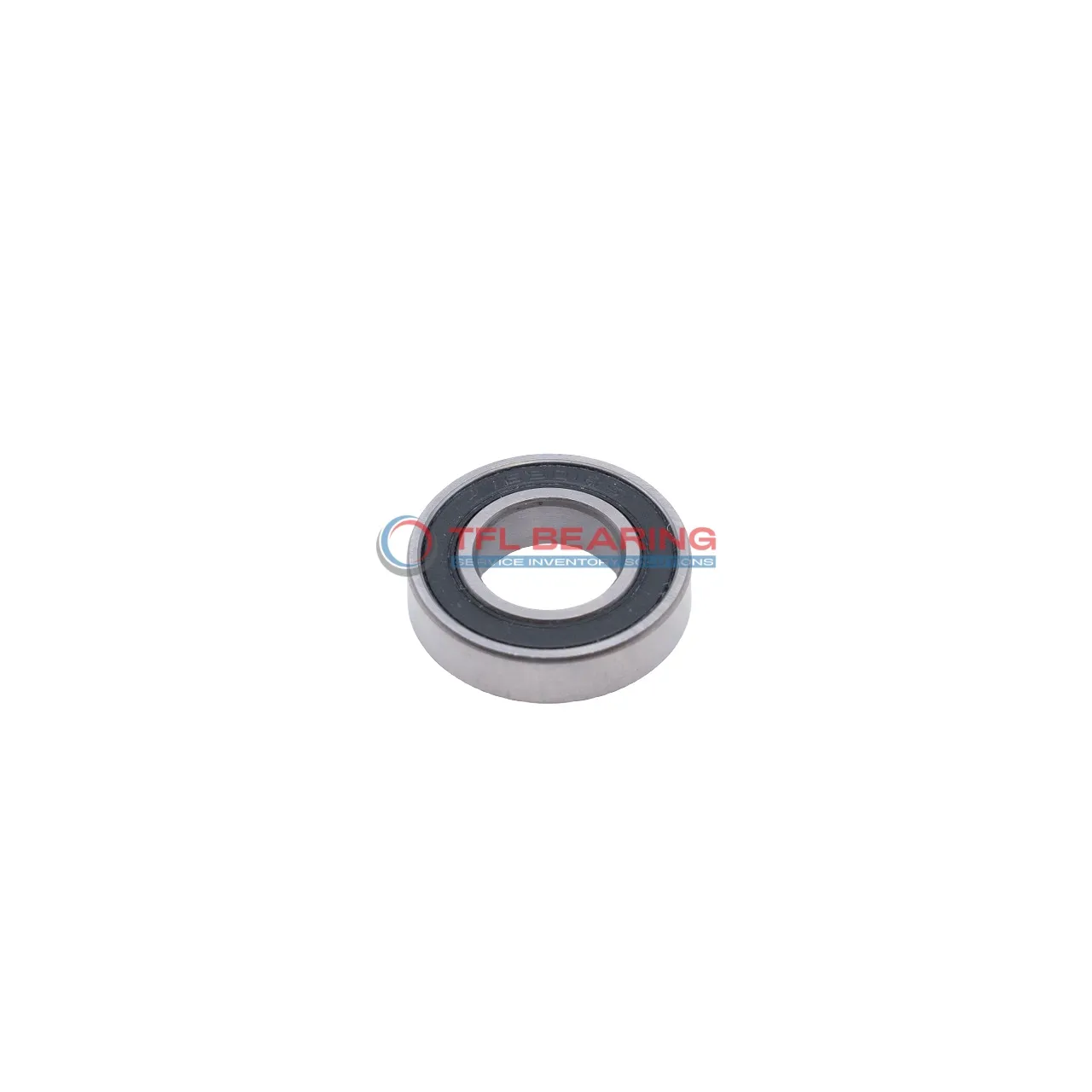

Single Row Deep Groove Ball Bearings 6201-2RS2/C3LHT23

Single Row Deep Groove Ball Bearings 6201-2RS2/C3LHT23

The 6201-2RS2/C3LHT23 is a compact single-row deep groove ball bearing, measuring 12mm in bore and 32mm in outer diameter. Made from sturdy chrome steel, it’s built to handle radial loads up to 1529 lbf and speeds of 22000 RPM.

Its sealed design keeps dirt out and lubrication in, making it low-maintenance. The C3 radial clearance ensures smooth operation even under varying temperatures, from -30°C to 120°C.

This bearing is interchangeable with SKF models, offering a reliable replacement option. It’s ideal for small motors, pumps, or appliances where consistent performance is needed.

Weighing just 37g, it’s lightweight yet durable. Compliant with RoHS and REACH standards, it’s a safe choice for various applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6201-2RS2/C3LHT23
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 12 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 32 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 10 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 1529 lbf
  • Static Radial Load 686 lbf
  • Max Speed 22000 rpm
  • Weight 37 g
  • price（$） 1.827
Single Row Deep Groove Ball Bearings 6201-2RS2/C3LHT23 dimension drawing
Download DWG Download PDF

Features

How Does 6201-2RS2/C3LHT23 Bearing Reduce Friction?

6201-2RS2/C3LHT23 Bearing features a sealed design, preventing contaminants from entering and reducing friction.
Its chrome steel construction ensures smooth operation, even at high speeds up to 22,000 rpm.
The deep groove design enhances load distribution, improving efficiency and durability.
With a temperature range of -30°C to 120°C, it performs reliably in various conditions.

Application

Common Applications of 6201-2RS2/C3LHT23 Bearing
6201-2RS2/C3LHT23 Bearing is widely used in small electric motors, such as those found in household appliances and power tools. Its sealed design helps keep out dust and moisture, ensuring longer service life in everyday conditions.

In automotive applications, 6201-2RS2/C3LHT23 Bearing works well in components like alternators and water pumps, where its radial load capacity and sealed construction are beneficial. The C3 clearance also accommodates thermal expansion in these environments.

For light industrial machinery, 6201-2RS2/C3LHT23 Bearing provides reliable performance in conveyor systems and small gearboxes. The chrome steel construction offers good wear resistance, making it suitable for continuous operation.

In consumer electronics, 6201-2RS2/C3LHT23 Bearing can be found in devices like printers and cooling fans. Its compact size and sealed design make it ideal for space-constrained applications where maintenance access is limited.
