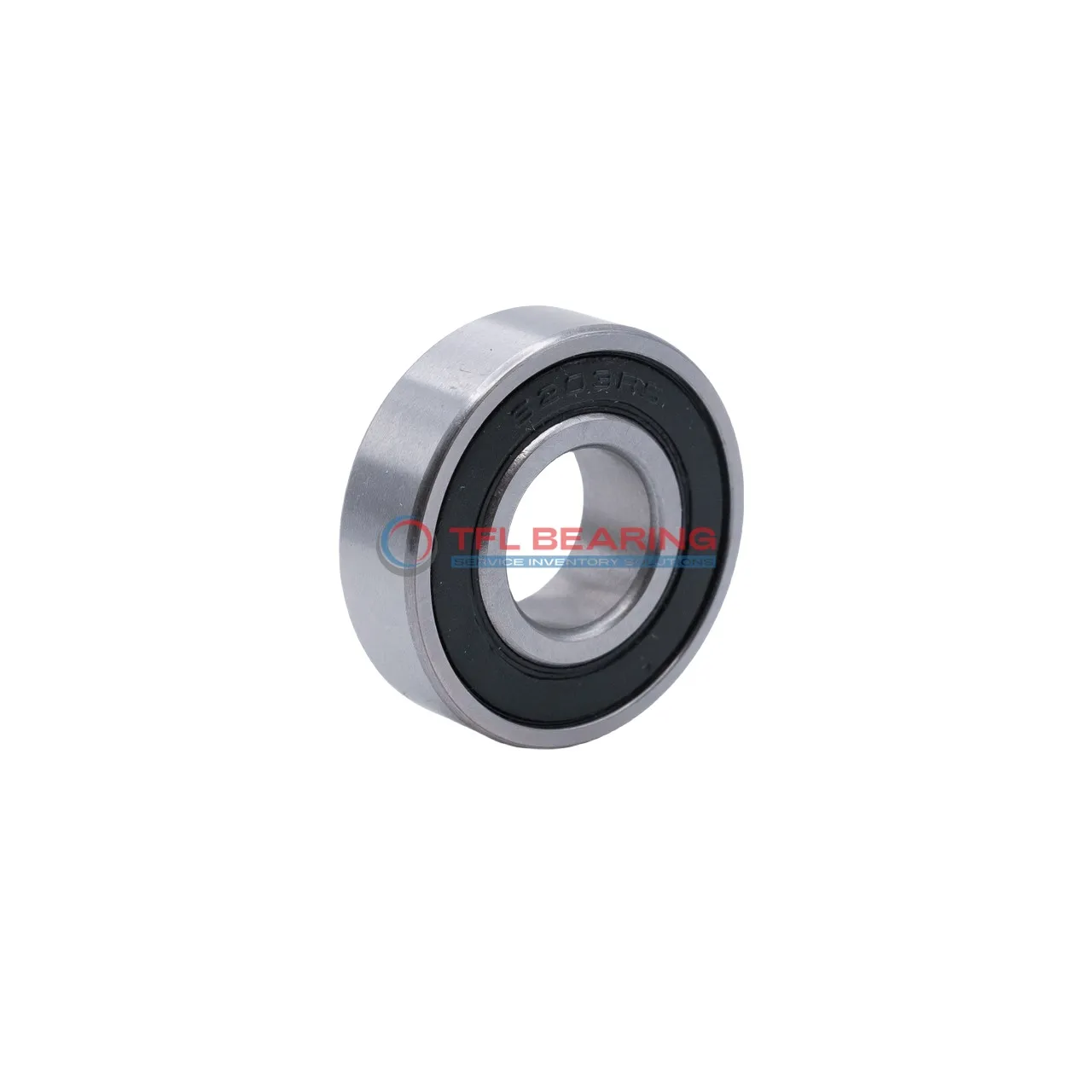

Single Row Deep Groove Ball Bearings 6200-RSH

The 6200-RSH is a sealed single-row deep groove ball bearing with a 10mm bore and 30mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 1214 lbf and spins efficiently at speeds up to 17000 RPM.

Its sealed design keeps dirt out and lubrication in, extending its lifespan. The stainless steel cage adds durability, making it reliable for continuous use.

This bearing suits temperatures from -30°C to 120°C, fitting well in small motors or appliances. It’s interchangeable with SKF models for easy replacements.

Weighing only 0.032kg, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it’s a safe choice for various applications.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 6200-RSH
Brand TFL
Interchangeable SKF
System of Measurement Metric
For Load Direction Radial
Construction Single Row
Bearing Type Ball
Seal Type Sealed
Tolerance Class P6
Radial Clearance Trade No CN
Bore Dia 10 mm
Bore Dia Tolerance -0.007mm to 0
Outer Dia 30 mm
Outer Dia Tolerance -0.008mm to 0
Width 9 mm
Width Tolerance -0.12mm to 0
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material Stainless Steel
REACH Compliant
Temperature Range -30° to 120 °C
Dynamic Radial Load 1214 lbf
Static Radial Load 531 lbf
Max Speed 17000 rpm
Weight 0.032 kg
price（$） 1.611

Single Row Deep Groove Ball Bearings 6200-RSH dimension drawing

Download DWG Download PDF

Features

Why Choose 6200-RSH Bearing for Precision Tasks?

6200-RSH Bearing features a sealed design, protecting against dust and moisture for consistent performance.
Its chrome steel construction ensures durability and smooth operation in radial load applications.

With a dynamic radial load capacity of 1214 lbf, it handles demanding tasks efficiently.
The P6 tolerance class guarantees high precision, making it suitable for sensitive equipment.

Operating within -30° to 120°C, 6200-RSH Bearing performs reliably in varied environments.
Its stainless steel cage maintains ball alignment, reducing wear and extending service life.

Application

Common Applications of 6200-RSH Bearing
The 6200-RSH Bearing is widely used in small electric motors, providing smooth rotation and reliable performance. Its sealed design keeps out dust and moisture, making it suitable for various environments.

In household appliances like washing machines and fans, 6200-RSH Bearing ensures quiet operation and long service life. The chrome steel construction adds durability, even with frequent use.

For light industrial equipment such as conveyors and pumps, 6200-RSH Bearing handles radial loads efficiently. The P6 tolerance class ensures precision in applications where alignment is critical.

Where Is 6200-RSH Bearing Used?
You’ll often find 6200-RSH Bearing in office equipment like printers and scanners, where its compact size and sealed design are ideal. It helps reduce noise and maintenance needs in these devices.

The bearing also works well in small machinery tools, offering consistent performance under moderate loads. Its stainless steel cage enhances durability, even in demanding conditions.

Built for Versatility: 6200-RSH Bearing
The 6200-RSH Bearing fits perfectly in automotive accessories like alternators and water pumps. Its high-speed capability and sealed construction make it a dependable choice for vehicle components.

In DIY power tools, 6200-RSH Bearing provides smooth operation and reduces wear over time. The metric sizing ensures compatibility with a range of tools and replacement parts.
