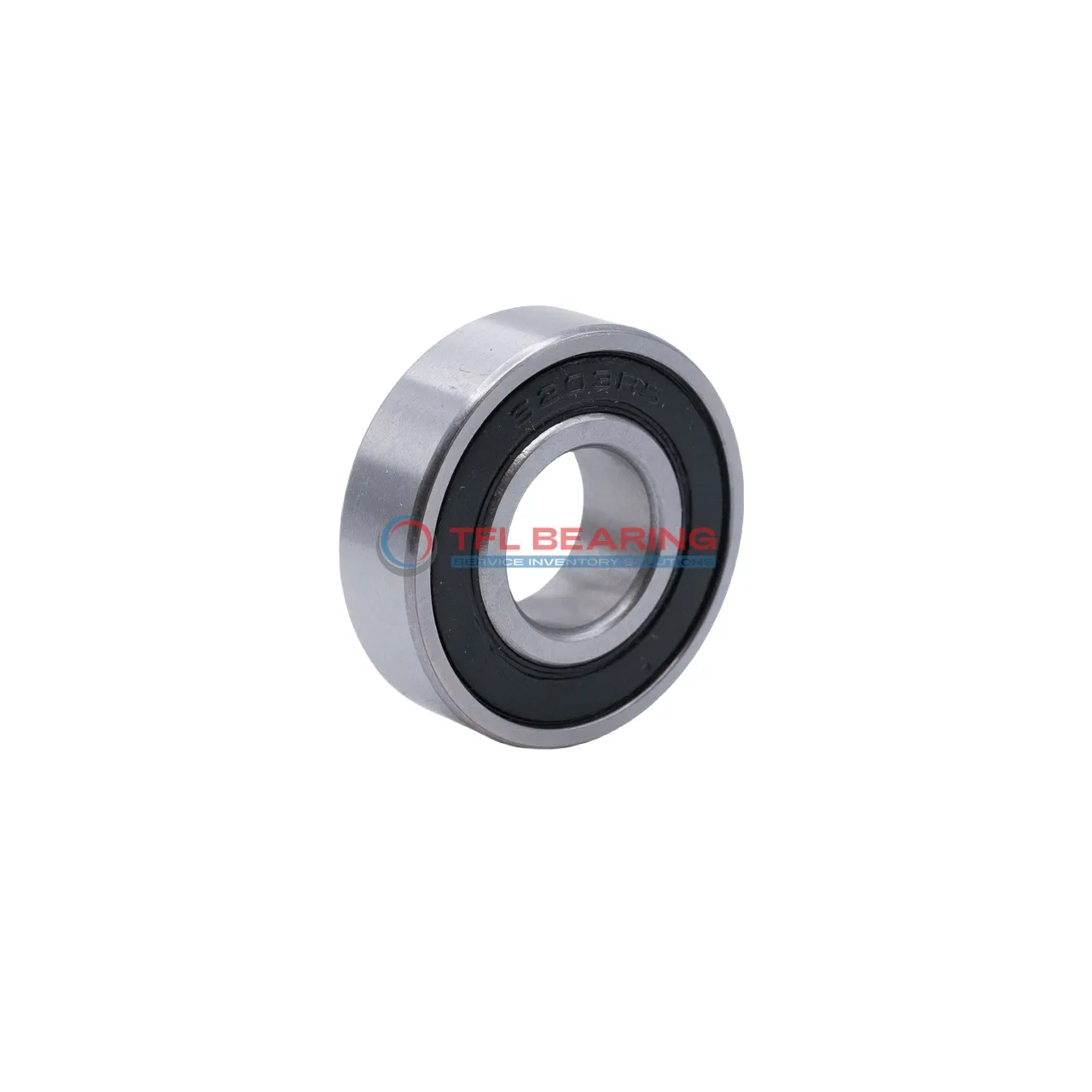

Single Row Deep Groove Ball Bearings 6200-RSH/C3LT

Single Row Deep Groove Ball Bearings 6200-RSH/C3LT

The 6200-RSH/C3LT is a sealed single-row deep groove ball bearing with a 10mm bore and 30mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 1147 lbf and spins smoothly at speeds up to 24,000 RPM.

Its sealed design keeps out dirt and moisture, while the C3 radial clearance ensures reliable performance under varying temperatures (-30°C to 120°C). The chrome steel cage adds strength and longevity.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for electric motors, pumps, or small machinery where consistent radial load support is needed.

Weighing just 32g, it’s lightweight yet robust. Compliant with RoHS and REACH standards for safe use in various industries.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6200-RSH/C3LT
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 10 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 30 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 9 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 1147 lbf
  • Static Radial Load 54 lbf
  • Max Speed 24000 rpm
  • Weight 32 g
Single Row Deep Groove Ball Bearings 6200-RSH/C3LT dimension drawing
Download DWG Download PDF

Features

How Does 6200-RSH/C3LT Bearing Reduce Friction?

6200-RSH/C3LT Bearing features a sealed design, preventing contaminants from entering and reducing friction.
Its chrome steel construction ensures smooth operation, even at high speeds up to 24,000 rpm.
The deep groove design enhances load distribution, improving efficiency and longevity.
With a temperature range of -30°C to 120°C, it performs reliably in various conditions.

Application

Common Applications of 6200-RSH/C3LT Bearing
In industrial settings, 6200-RSH/C3LT Bearing is commonly used in electric motors and pumps, where its sealed design helps keep contaminants out. The C3 clearance ensures smooth operation even under varying thermal conditions.

Where Is 6200-RSH/C3LT Bearing Used?
You’ll often find 6200-RSH/C3LT Bearing in household appliances like washing machines and fans, thanks to its reliable performance and low maintenance needs. Its compact size makes it ideal for space-constrained applications.

Built for Heavy-Duty Use: 6200-RSH/C3LT Bearing
In automotive applications, 6200-RSH/C3LT Bearing handles radial loads in components like alternators and small gearboxes. The chrome steel construction provides durability under continuous use.

Light-Duty vs Heavy-Duty: Best Uses for 6200-RSH/C3LT Bearing
For light-duty tasks, 6200-RSH/C3LT Bearing works well in office equipment like printers, while its robust design also suits industrial conveyors. The sealed type ensures long service life in dusty environments.
