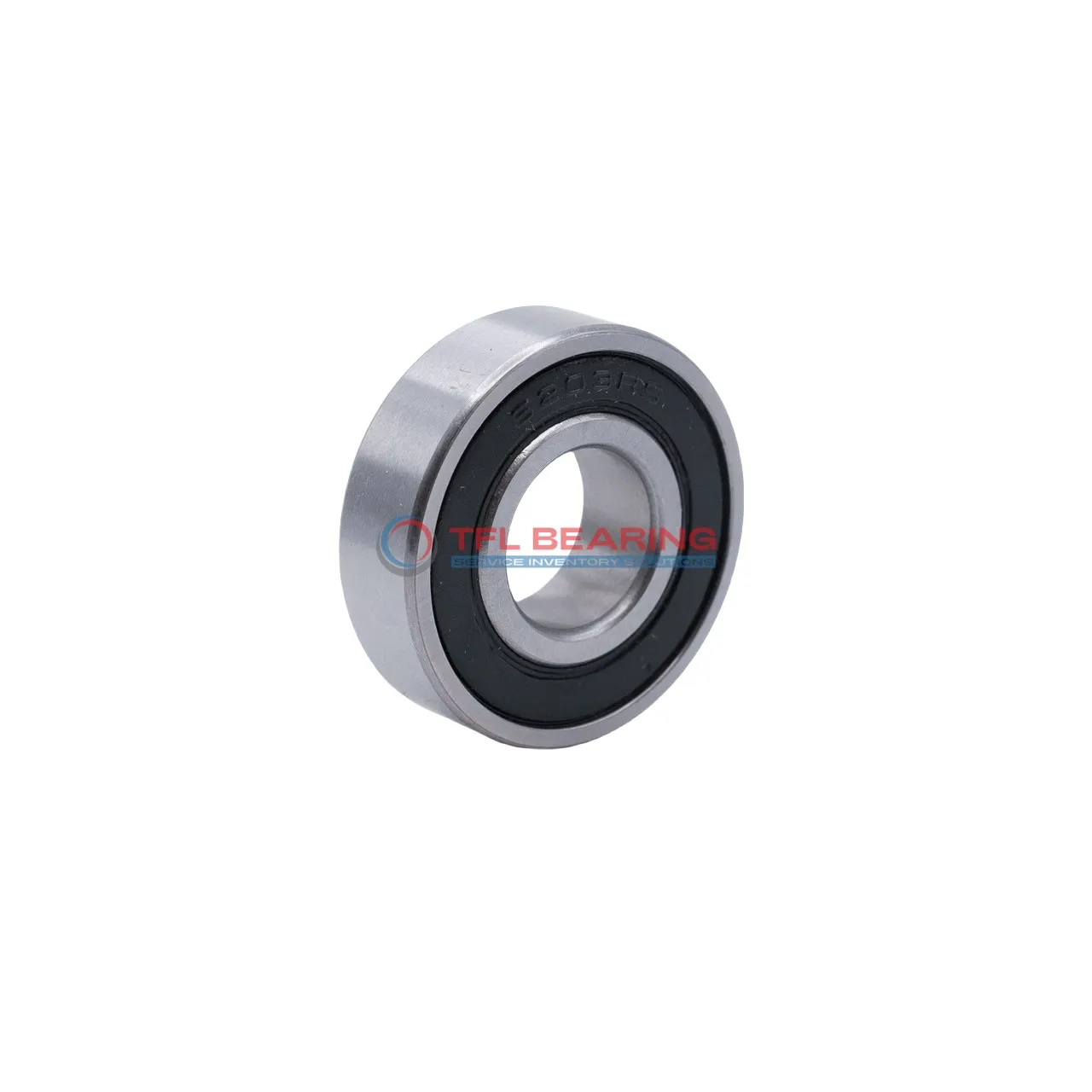

Single Row Deep Groove Ball Bearings 6200-2RSH/C3VT376

Single Row Deep Groove Ball Bearings 6200-2RSH/C3VT376

The 6200-2RSH/C3VT376 is a compact single-row deep groove ball bearing, measuring 10mm in bore and 30mm in outer diameter, with a width of just 9mm. Made from durable chrome steel, it’s built to handle radial loads up to 1147 lbf and speeds up to 24,000 RPM.

Its sealed design keeps out dust and dirt, making it low-maintenance, while the C3 radial clearance ensures smooth operation under varying temperatures. The bearing performs reliably in conditions from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a cost-effective alternative. Ideal for electric motors, pumps, or small machinery where space is limited.

Weighing only 32g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6200-2RSH/C3VT376
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 10 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 30 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 9 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 1147 lbf
  • Static Radial Load 54 lbf
  • Max Speed 24000 rpm
  • Weight 32 g
Single Row Deep Groove Ball Bearings 6200-2RSH/C3VT376 dimension drawing
Download DWG Download PDF

Features

Why Choose 6200-2RSH/C3VT376 Bearing for Precision Tasks?

6200-2RSH/C3VT376 Bearing features a single-row deep groove design, ideal for handling radial loads with precision.
Its sealed construction protects against dust and moisture, ensuring smooth operation in various environments.

The chrome steel rings and balls enhance durability, while the C3 radial clearance allows for thermal expansion.
With a maximum speed of 24,000 rpm, it delivers reliable performance in high-speed applications.

6200-2RSH/C3VT376 Bearing operates efficiently within a temperature range of -30°C to 120°C.
Its compact size (10 mm×30 mm×9 mm) makes it suitable for space-constrained installations.

The sealed design reduces maintenance needs, saving time and operational costs.
Its dynamic radial load capacity of 1147 lbf ensures long-lasting performance under stress.

Application

Common Applications of 6200-2RSH/C3VT376 Bearing
6200-2RSH/C3VT376 Bearing is widely used in industrial machinery, such as pumps and electric motors, where its sealed design helps keep contaminants out. The C3 radial clearance ensures smooth operation even under varying thermal conditions.

In automotive applications, 6200-2RSH/C3VT376 Bearing fits well in components like alternators and water pumps, thanks to its reliable radial load capacity. The chrome steel construction provides durability for long-term use.

For household appliances, 6200-2RSH/C3VT376 Bearing works efficiently in items like washing machines and fans. Its sealed feature reduces maintenance needs, making it a hassle-free choice for everyday devices.

The 6200-2RSH/C3VT376 Bearing also finds use in small machinery tools, where its compact size and robust performance are appreciated. The ABEC 1 tolerance ensures consistent quality across various applications.
