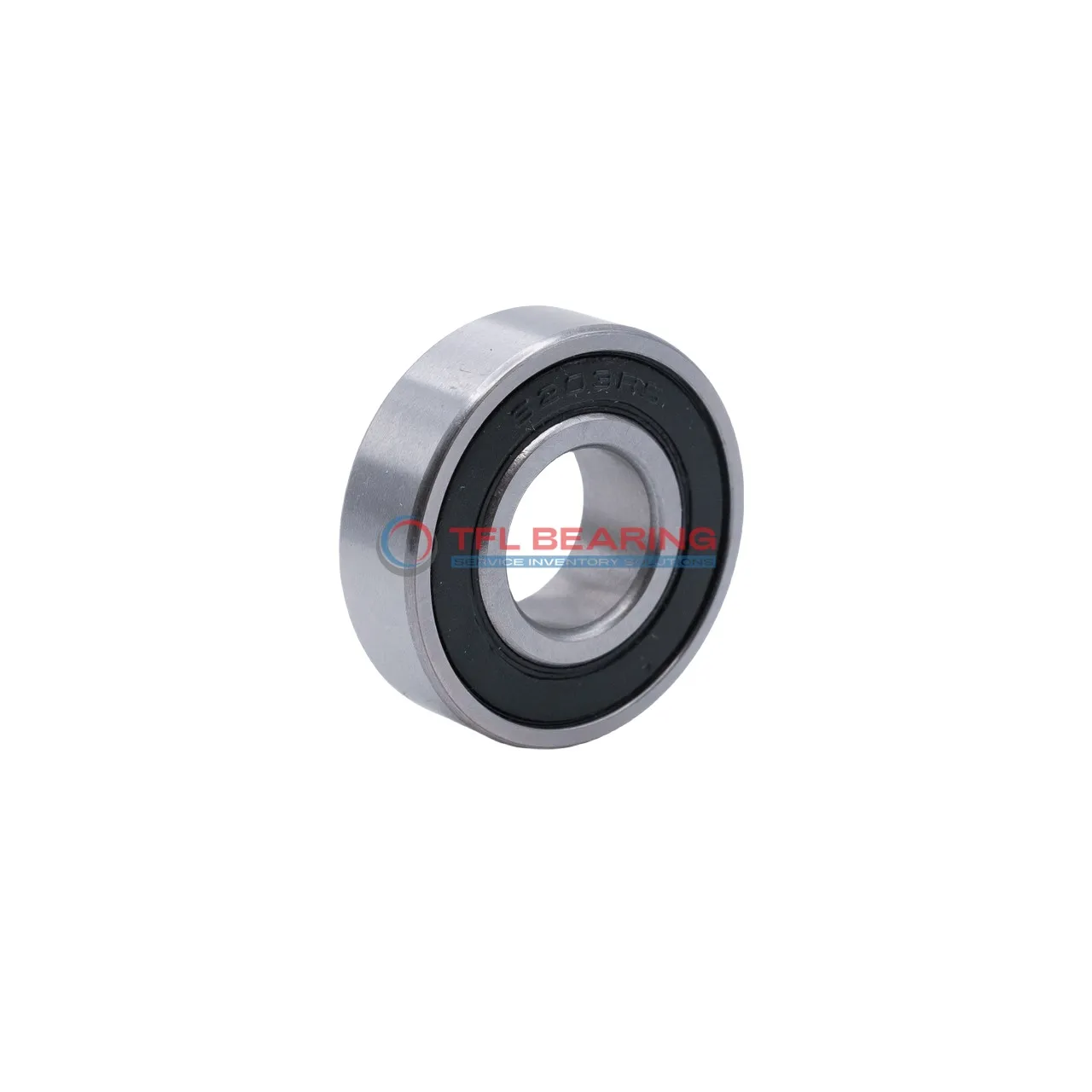

Single Row Deep Groove Ball Bearings 6200-2RSH/C3VK016

Single Row Deep Groove Ball Bearings 6200-2RSH/C3VK016

The 6200-2RSH/C3VK016 is a compact single-row deep groove ball bearing, measuring 10mm in bore and 30mm in outer diameter. Its sealed design keeps dirt out and grease in, making it low-maintenance for everyday use.

Made from durable chrome steel, it handles radial loads up to 1147 lbf and spins smoothly at speeds up to 24,000 RPM. The C3 clearance allows for slight thermal expansion, ideal for varying temperatures.

This bearing works well in temperatures from -30°C to 120°C, suitable for small motors or power tools. Its sealed construction and sturdy chrome steel cage ensure reliable performance in dusty conditions.

Weighing just 32g, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it’s a practical choice for replacements, interchangeable with SKF models.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6200-2RSH/C3VK016
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 10 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 30 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 9 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 1147 lbf
  • Static Radial Load 54 lbf
  • Max Speed 24000 rpm
  • Weight 32 g
Single Row Deep Groove Ball Bearings 6200-2RSH/C3VK016 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6200-2RSH/C3VK016 Bearing

6200-2RSH/C3VK016 Bearing is built with chrome steel rings and balls, offering reliable radial load support.
Its dynamic radial load capacity reaches 1147 lbf, making it suitable for various applications.

The sealed design of 6200-2RSH/C3VK016 Bearing protects against dust and moisture, enhancing durability.
It operates smoothly within a temperature range of -30°C to 120°C, ensuring consistent performance.

With a maximum speed of 24,000 rpm, 6200-2RSH/C3VK016 Bearing balances speed and reliability.
The C3 radial clearance provides flexibility in different operating conditions.

The compact size of 10 mm×30 mm×9 mm makes 6200-2RSH/C3VK016 Bearing ideal for space-constrained applications.
Its chrome steel cage ensures long-lasting alignment of the balls, reducing wear.

Application

Common Applications of 6200-2RSH/C3VK016 Bearing
The 6200-2RSH/C3VK016 Bearing is widely used in industrial machinery, such as electric motors and pumps, where its sealed design helps keep contaminants out. Its chrome steel construction ensures durability even in demanding environments.

In automotive applications, 6200-2RSH/C3VK016 Bearing is often found in alternators and small gearboxes, providing reliable radial load support. The C3 clearance makes it suitable for applications with moderate thermal expansion.

For home appliances like washing machines, 6200-2RSH/C3VK016 Bearing offers smooth operation and long service life. Its sealed design helps protect against dust and moisture, making it ideal for household use.

In automation systems, 6200-2RSH/C3VK016 Bearing is commonly used in conveyor rollers and small robotic joints. The high-speed capability ensures efficient performance in repetitive motion tasks.
