Single Row Deep Groove Ball Bearings 61972 MA

Single Row Deep Groove Ball Bearings 61972 MA

The 61972 MA is a single-row deep groove ball bearing with a 360mm bore and 480mm outer diameter, crafted from sturdy chrome steel. It supports radial loads up to 65419 lbf and operates at speeds up to 2000 RPM.

Its open design simplifies maintenance, while the stainless steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for heavy-duty applications like industrial machinery or large equipment where radial loads are predominant.

Weighing 28kg, it’s built to handle demanding conditions. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 61972 MA
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 360 mm
  • Bore Dia Tolerance -0.03mm to 0
  • Outer Dia 480 mm
  • Outer Dia Tolerance -0.033mm to 0
  • Width 56 mm
  • Width Tolerance -0.4mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 65419 lbf
  • Static Radial Load 101164 lbf
  • Max Speed 2000 rpm
  • Weight 28 kg
  • price（$） 1925.388

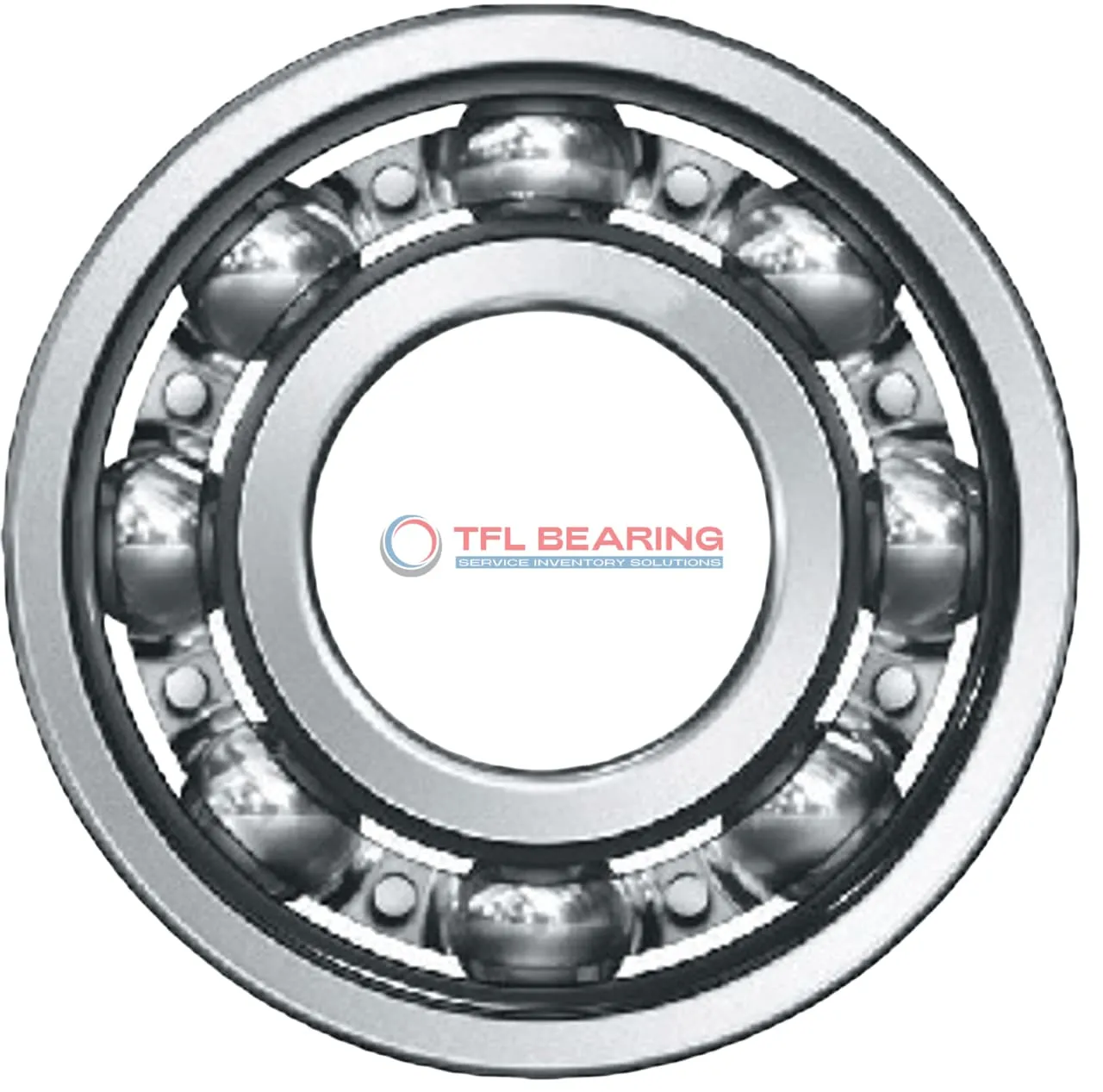

Single Row Deep Groove Ball Bearings 61972 MA dimension drawing
Download DWG Download PDF

Features

Performance Features of 61972 MA Bearing

61972 MA Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 65419 lbf.
Its stainless steel cage ensures smooth operation, even at speeds reaching 2,000 rpm.

The single row deep groove design enhances stability, making it suitable for various radial load applications.
With a temperature range of -30° to 120°C, 61972 MA Bearing performs reliably in diverse conditions.

Its precise P6 tolerance class ensures consistent performance in demanding industrial settings.
The open seal design simplifies maintenance while maintaining efficient operation.

Application

Industrial Uses of 61972 MA Bearing
61972 MA Bearing is commonly used in large industrial machinery, such as heavy-duty pumps and compressors, where its robust design handles significant radial loads. The open seal type allows for easy lubrication, ensuring long service life in demanding conditions.

What Makes 61972 MA Bearing a Preferred Choice?
Its chrome steel construction provides excellent durability, making it suitable for applications like conveyor systems and gearboxes. The P6 tolerance class ensures precise performance, which is essential for maintaining machinery efficiency.

Built for Heavy-Duty Use: 61972 MA Bearing
In wind turbines, 61972 MA Bearing supports the main shaft, where its high static radial load capacity is crucial. The stainless steel cage adds extra resistance to wear, even in harsh environmental conditions.

Automotive vs Aerospace: Applications of 61972 MA Bearing
While 61972 MA Bearing is often found in large automotive components like truck transmissions, it also serves well in aerospace ground support equipment. Its metric sizing ensures compatibility with a variety of international standards.

Perfect Fit for Automation: 61972 MA Bearing
In automated production lines, 61972 MA Bearing ensures smooth operation of robotic arms and assembly systems. The high dynamic radial load capacity makes it reliable for continuous, high-speed operations.
