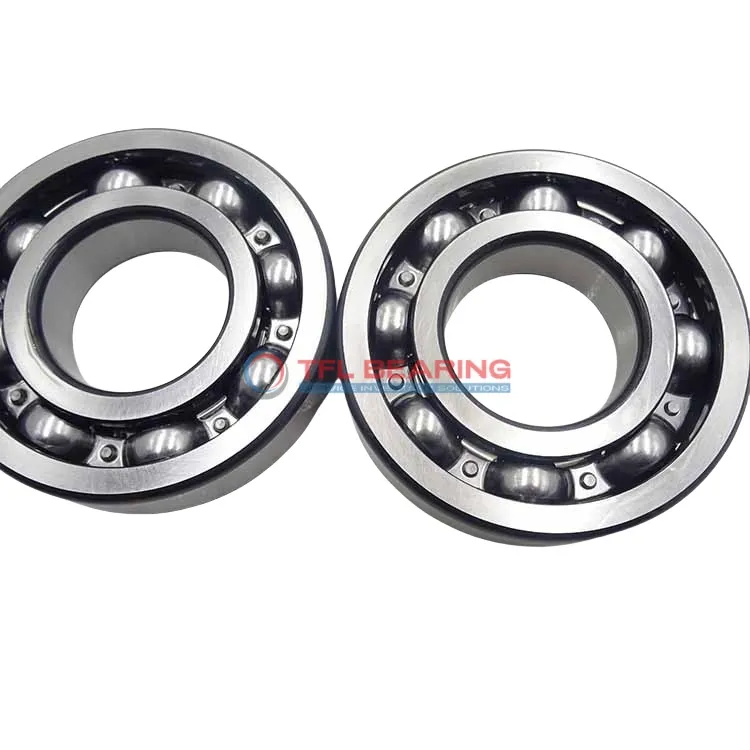

Single Row Deep Groove Ball Bearings 61936 MA

Single Row Deep Groove Ball Bearings 61936 MA

The 61936 MA is a single-row deep groove ball bearing with a 180mm bore and 250mm outer diameter, crafted from sturdy chrome steel for reliable performance. It handles radial loads up to 26752 lbf and operates smoothly at speeds up to 4300 RPM.

Its open design simplifies maintenance, while the stainless steel cage enhances durability. The bearing functions well in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for machinery requiring robust radial load support, such as pumps or electric motors.

Weighing 4.99kg, it balances strength with manageable size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 61936 MA
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 180 mm
  • Bore Dia Tolerance -0.018mm to 0
  • Outer Dia 250 mm
  • Outer Dia Tolerance -0.020mm to 0
  • Width 33 mm
  • Width Tolerance -0.25mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 26752 lbf
  • Static Radial Load 30124 lbf
  • Max Speed 4300 rpm
  • Weight 4.99 kg
  • price（$） 562.599
Single Row Deep Groove Ball Bearings 61936 MA dimension drawing
Download DWG Download PDF

Features

Performance Features of 61936 MA Bearing

61936 MA Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 26752 lbf, making it suitable for demanding industrial applications.

The stainless steel cage ensures proper ball alignment, reducing friction and wear.
With a maximum speed of 4,300 rpm, it delivers reliable performance under high-speed conditions.

61936 MA Bearing operates efficiently in temperatures ranging from -30° to 120°C.
Its open design allows for easy lubrication, ensuring smooth operation over extended periods.

Application

Industrial Uses of 61936 MA Bearing
The 61936 MA Bearing is commonly used in heavy machinery like industrial pumps and compressors, where its deep groove design handles radial loads efficiently.
Its chrome steel construction ensures durability in demanding environments, making it a reliable choice for long-term use.

What Makes 61936 MA Bearing a Preferred Choice?
In automotive applications, 61936 MA Bearing fits well in wheel hubs and transmissions due to its high load capacity and smooth operation.
The open seal design allows for easy lubrication, which is handy in high-speed scenarios.

Perfect Fit for Automation: 61936 MA Bearing
For automated systems, 61936 MA Bearing works seamlessly in robotic arms and conveyor belts, thanks to its precise P6 tolerance.
The stainless steel cage reduces friction, ensuring consistent performance even under continuous use.

Medical vs Industrial: Where 61936 MA Bearing Excels
While 61936 MA Bearing isn’t typically used in medical devices, it shines in industrial settings like gearboxes and electric motors.
Its robust design and temperature range make it suitable for both light and heavy-duty applications.
