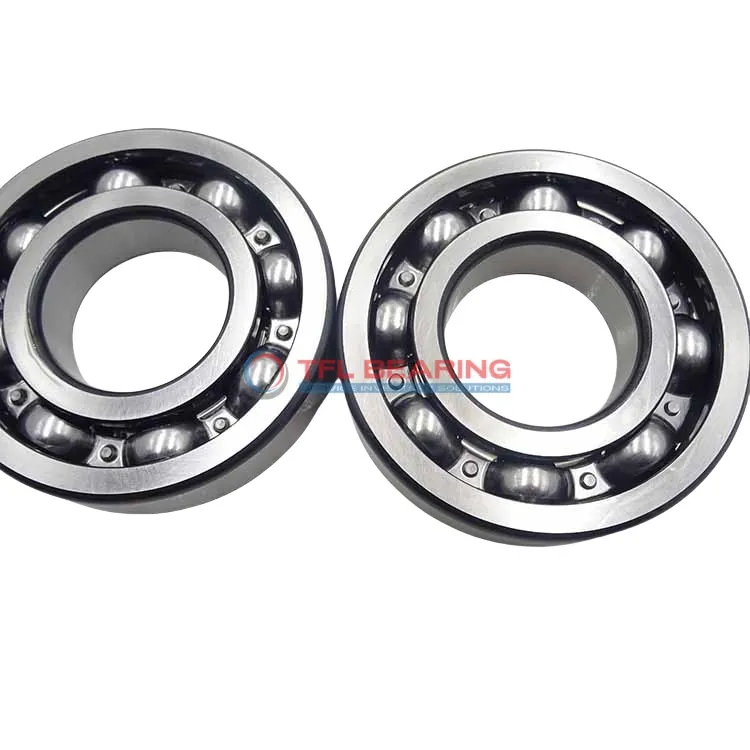

Single Row Deep Groove Ball Bearings 61936 MA/C3

Single Row Deep Groove Ball Bearings 61936 MA/C3

The 61936 MA/C3 is a single-row deep groove ball bearing with a 180mm bore and 250mm outer diameter, crafted from sturdy chrome steel. It supports radial loads up to 26752 lbf and operates smoothly at speeds up to 4300 RPM.

Its open design and machined metal cage ensure durability and easy maintenance. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. It’s well-suited for industrial machinery or heavy equipment where radial loads are common.

Weighing 4.99kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s safe for various applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 61936 MA/C3
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 180 mm
  • Bore Dia Tolerance -0.018mm to 0
  • Outer Dia 250 mm
  • Outer Dia Tolerance -0.020mm to 0
  • Width 33 mm
  • Width Tolerance -0.25mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Machined metal
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 26752 lbf
  • Static Radial Load 30124 lbf
  • Max Speed 4300 rpm
  • Weight 4.99 kg
  • price（$） 545.157
Single Row Deep Groove Ball Bearings 61936 MA/C3 dimension drawing
Download DWG Download PDF

Features

Performance Features of 61936 MA/C3 Bearing

61936 MA/C3 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 26752 lbf, ensuring reliable performance in various applications.

The machined metal cage maintains ball alignment, reducing friction and extending service life.
With a maximum speed of 4,300 rpm, it balances durability and efficiency for industrial use.

61936 MA/C3 Bearing operates smoothly in temperatures ranging from -30°C to 120°C.
Its open design allows for easy lubrication, making maintenance straightforward and cost-effective.

The C3 radial clearance ensures optimal performance under varying thermal conditions.
This makes 61936 MA/C3 Bearing a dependable choice for heavy-duty machinery and equipment.

Application

Industrial Uses of 61936 MA/C3 Bearing
This bearing is commonly used in heavy machinery like industrial pumps and gearboxes, where its deep groove design handles radial loads efficiently. The open seal allows for easy lubrication, extending service life in demanding conditions.

How Does 61936 MA/C3 Bearing Improve Performance?
In conveyor systems, 61936 MA/C3 Bearing reduces friction, ensuring smooth operation even under continuous use. Its C3 clearance provides flexibility in high-temperature environments, making it reliable for extended shifts.

Built for Heavy-Duty Use: 61936 MA/C3 Bearing
You’ll find this bearing in agricultural equipment, where its chrome steel construction withstands dust and moisture. The machined metal cage adds durability, ideal for rough terrain applications.

Automotive vs Aerospace: Applications of 61936 MA/C3 Bearing
In automotive wheel hubs, 61936 MA/C3 Bearing offers stability at moderate speeds. For aerospace ground support gear, its metric sizing ensures compatibility with international standards.

Perfect Fit for Automation: 61936 MA/C3 Bearing
This bearing works well in robotic arms, where precision and load capacity matter. The ABEC 1 tolerance balances cost and performance for factory automation needs.
