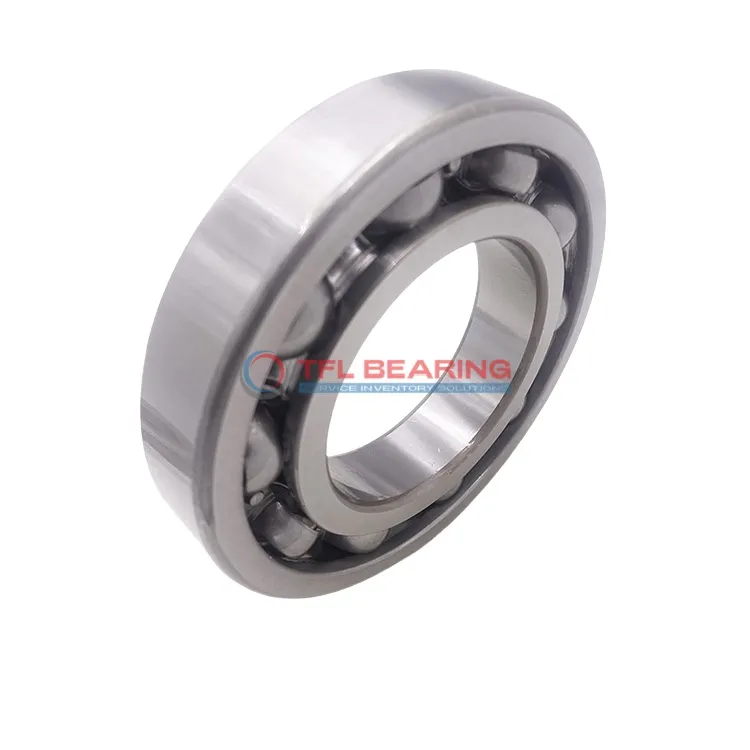

Single Row Deep Groove Ball Bearings 61932 MA

Single Row Deep Groove Ball Bearings 61932 MA

The 61932 MA is a single-row deep groove ball bearing with a 160mm bore and 220mm outer diameter, crafted from sturdy chrome steel. It supports radial loads up to 20750 lbf and operates smoothly at speeds up to 5000 RPM.

Its open design allows for easy lubrication, while the stainless steel cage ensures durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like electric motors or pumps where radial loads are common.

Weighing 3.2kg, it offers a robust build for industrial use. Compliant with RoHS and REACH standards for safe and eco-friendly operation.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 61932 MA
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 160 mm
  • Bore Dia Tolerance -0.018mm to 0
  • Outer Dia 220 mm
  • Outer Dia Tolerance -0.020mm to 0
  • Width 28 mm
  • Width Tolerance -0.25mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 20750 lbf
  • Static Radial Load 22031 lbf
  • Max Speed 5000 rpm
  • Weight 3.2 kg
  • price（$） 511.209
Single Row Deep Groove Ball Bearings 61932 MA dimension drawing
Download DWG Download PDF

Features

Performance Features of 61932 MA Bearing

61932 MA Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 20750 lbf.

Its stainless steel cage ensures smooth operation, reducing friction and wear in radial applications.

With a maximum speed of 5,000 rpm, it maintains reliable performance under demanding conditions.

The P6 tolerance class guarantees precision, making it suitable for high-accuracy requirements.

Application

Key Fields for 61932 MA Bearing
In industrial settings, 61932 MA Bearing is commonly used in large machinery like pumps and compressors, where its radial load capacity ensures stable operation. The open design allows for efficient heat dissipation, ideal for continuous use.

Where Is 61932 MA Bearing Used?
You’ll often find 61932 MA Bearing in automotive applications such as wheel hubs and transmissions, thanks to its robust chrome steel construction. Its metric sizing makes it a versatile fit for various vehicle designs.

Built for Heavy-Duty Use: 61932 MA Bearing
For automation systems, 61932 MA Bearing supports robotic arms and conveyor belts, where precision and durability are key. The stainless steel cage adds longevity, even in high-speed scenarios.

Medical vs Industrial: Where 61932 MA Bearing Excels
In medical imaging devices, 61932 MA Bearing’s reliable performance ensures smooth operation under consistent loads. Meanwhile, industrial gearboxes benefit from its ability to handle heavy radial forces.

Perfect Fit for Automation: 61932 MA Bearing
61932 MA Bearing works well in 3D printers and CNC machines, where its low friction and high-speed capability are assets. The P6 tolerance class ensures consistent performance in precision tasks.
