Single Row Deep Groove Ball Bearings 61922 MA/W64

Single Row Deep Groove Ball Bearings 61922 MA/W64

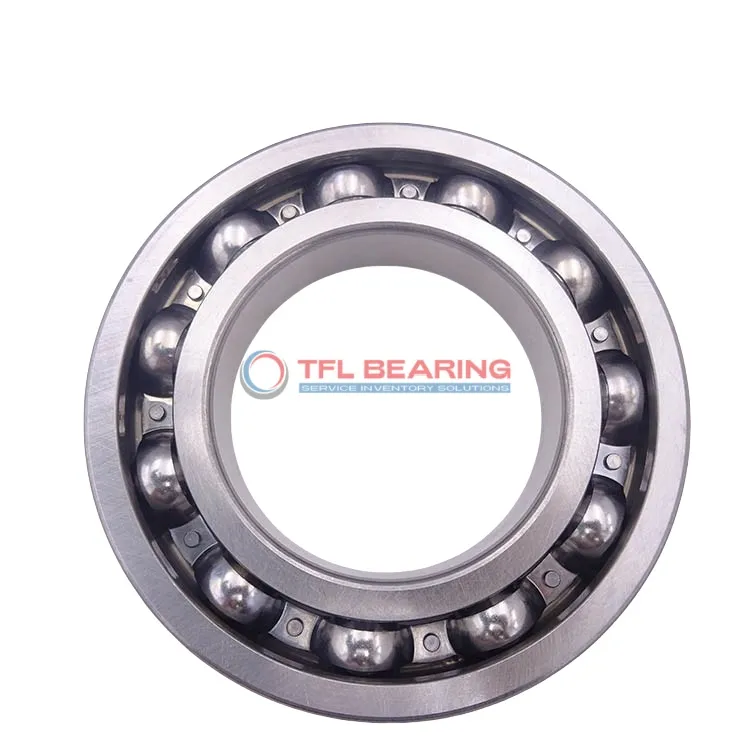

The 61922 MA/W64 is a single-row deep groove ball bearing with a 110mm bore and 150mm outer diameter, crafted from sturdy chrome steel for durability. It supports radial loads up to 9802 lbf and operates smoothly at speeds up to 7500 RPM.

Its open design and machined metal cage ensure reliable performance, while the solid oil lubrication reduces maintenance needs. The bearing works efficiently in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like electric motors or pumps where radial loads are common.

Weighing 1.04kg, it offers a robust yet manageable size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 61922 MA/W64
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 110 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 150 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 20 mm
  • Width Tolerance -0.2mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Machined metal
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 9802 lbf
  • Static Radial Load 10116 lbf
  • Max Speed 7500 rpm
  • Weight 1.04 kg
Single Row Deep Groove Ball Bearings 61922 MA/W64 dimension drawing
Download DWG Download PDF

Features

Performance Features of 61922 MA/W64 Bearing

61922 MA/W64 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 9802 lbf, making it suitable for demanding applications.

The machined metal cage ensures precise ball alignment, reducing friction and wear.
With a maximum speed of 7,500 rpm, it delivers reliable performance in various conditions.

Solid oil lubrication enhances durability, reducing the need for frequent maintenance.
61922 MA/W64 Bearing operates smoothly in temperatures ranging from -30°C to 120°C.

Application

Common Applications of 61922 MA/W64 Bearing
61922 MA/W64 Bearing is widely used in industrial machinery, especially in applications like pumps and electric motors where radial load support is essential. Its solid oil lubrication ensures long service life with minimal maintenance.

In automotive systems, 61922 MA/W64 Bearing can be found in wheel hubs and transmissions, providing reliable performance under varying loads. The chrome steel construction offers durability in demanding conditions.

For automation equipment, 61922 MA/W64 Bearing is a solid choice for robotic arms and conveyor systems, thanks to its precise tolerances. The machined metal cage adds stability during high-speed operations.

In household appliances like washing machines, 61922 MA/W64 Bearing ensures smooth and quiet operation. Its temperature range makes it suitable for both hot and cold environments.
