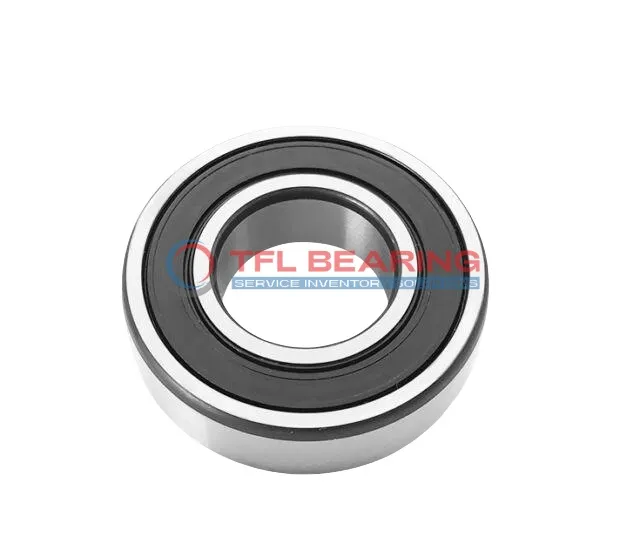

Single Row Deep Groove Ball Bearings 61910-2RS1/W64

Single Row Deep Groove Ball Bearings 61910-2RS1/W64

The 61910-2RS1/W64 is a compact single-row deep groove ball bearing with a 50mm bore and 72mm outer diameter, measuring just 12mm wide. Made from chrome steel, it handles radial loads up to 3282 lbf and spins smoothly at speeds up to 12,000 RPM.

Its sealed design keeps dirt out and solid oil lubrication ensures long service life without frequent maintenance. The bearing operates reliably in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for electric motors, pumps, or small machinery where space is limited but performance is key.

Weighing only 0.14kg, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe use in various industries.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 61910-2RS1/W64
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 50 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 72 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 12 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 3282 lbf
  • Static Radial Load 2653 lbf
  • Max Speed 12000 rpm
  • Weight 0.14 kg
Single Row Deep Groove Ball Bearings 61910-2RS1/W64 dimension drawing
Download DWG Download PDF

Features

Why Choose 61910-2RS1/W64 Bearing for Precision Tasks?

61910-2RS1/W64 Bearing features a sealed design with solid oil lubrication, ensuring smooth operation in radial load applications.
Its chrome steel construction provides durability and resistance to wear, making it suitable for long-term use.

The bearing can handle dynamic radial loads up to 3282 lbf, offering reliable performance in various conditions.
With a maximum speed of 12,000 rpm, it balances efficiency and stability.

61910-2RS1/W64 Bearing operates within a temperature range of -30°C to 120°C, adapting to different environments.
Its ABEC 1 tolerance class ensures consistent precision for demanding tasks.

Application

Common Applications of 61910-2RS1/W64 Bearing
In industrial settings, 61910-2RS1/W64 Bearing is commonly used in electric motors and pumps, where its sealed design keeps contaminants out. The solid oil lubrication ensures long service life even in dusty environments.

Where Is 61910-2RS1/W64 Bearing Used?
You’ll often find 61910-2RS1/W64 Bearing in automotive applications like alternators and water pumps, thanks to its reliable radial load handling. Its compact size makes it a great fit for space-constrained designs.

Built for Heavy-Duty Use: 61910-2RS1/W64 Bearing
This bearing works well in conveyor systems and gearboxes, where its chrome steel construction handles moderate loads with ease. The ABEC 1 tolerance ensures consistent performance without over-engineering.

Automotive vs Industrial: Applications of 61910-2RS1/W64 Bearing
In cars, 61910-2RS1/W64 Bearing supports auxiliary components like fans and pulleys, while in factories, it’s trusted for machinery requiring low-maintenance solutions. The temperature range suits most operating conditions.

Perfect Fit for Automation: 61910-2RS1/W64 Bearing
Robotic arms and packaging machines benefit from 61910-2RS1/W64 Bearing’s smooth operation and sealed protection. The metric dimensions simplify integration into European and Asian equipment designs.
