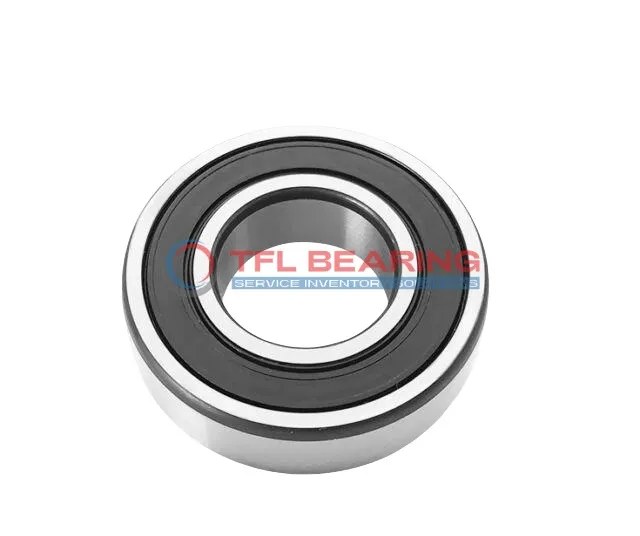

Single Row Deep Groove Ball Bearings 61910-2RS1/C3GJN

The 61910-2RS1/C3GJN is a single-row deep groove ball bearing with a 50mm bore and 72mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 3282 lbf and operates smoothly at speeds up to 12,000 RPM.

Its sealed design keeps out dust and moisture, while the C3 radial clearance ensures reliable performance under varying temperatures. The bearing works well in environments ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for applications like electric motors or small machinery where radial loads are common.

Weighing just 0.14kg, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 61910-2RS1/C3GJN
Brand TFL
Interchangeable SKF
System of Measurement Metric
For Load Direction Radial
Construction Single Row
Bearing Type Ball
Seal Type Sealed
Tolerance Class ABEC 1 | ISO P0
Radial Clearance Trade No C3
Bore Dia 50 mm
Bore Dia Tolerance -0.01mm to 0
Outer Dia 72 mm
Outer Dia Tolerance -0.011mm to 0
Width 12 mm
Width Tolerance -0.12mm to 0
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material Chrome Steel
ROHS Compliant
REACH Compliant
Temperature Range -30°to 120 °C
Dynamic Radial Load 3282 lbf
Static Radial Load 2653 lbf
Max Speed 12000 rpm
Weight 0.14 kg
price（$） 30.798

Single Row Deep Groove Ball Bearings 61910-2RS1/C3GJN dimension drawing

Download DWG Download PDF

Features

Why Choose 61910-2RS1/C3GJN Bearing for Precision Tasks?

61910-2RS1/C3GJN Bearing is crafted with chrome steel rings and balls, ensuring durability and smooth radial load handling.
Its dynamic radial load capacity of 3282 lbf makes it suitable for various industrial applications.
The sealed design protects against contaminants, enhancing performance in harsh environments.
With a maximum speed of 12,000 rpm, it offers reliable operation for high-speed machinery.

Application

Industrial Uses of 61910-2RS1/C3GJN Bearing
This bearing is commonly used in industrial machinery like pumps and electric motors, where its sealed design helps keep out contaminants. The C3 clearance ensures reliable performance even with thermal expansion.

Where Is 61910-2RS1/C3GJN Bearing Used?
You’ll find it in automotive applications such as alternators and small gearboxes, thanks to its balanced radial load capacity. The chrome steel construction offers good wear resistance for long service life.

Built for Heavy-Duty Use: 61910-2RS1/C3GJN Bearing
It handles moderate radial loads in agricultural equipment while maintaining smooth operation. The sealed design protects against dust and moisture in outdoor environments.

Automotive vs Industrial: Applications of 61910-2RS1/C3GJN Bearing
In cars, it works well in accessory drives, while factories use it for conveyor rollers. The metric sizing makes it compatible with various European and Asian equipment standards.

Perfect Fit for Automation: 61910-2RS1/C3GJN Bearing
This bearing suits robotic joints and small assembly line mechanisms where consistent rotation matters. Its ABEC 1 tolerance provides adequate precision for most automated systems.
