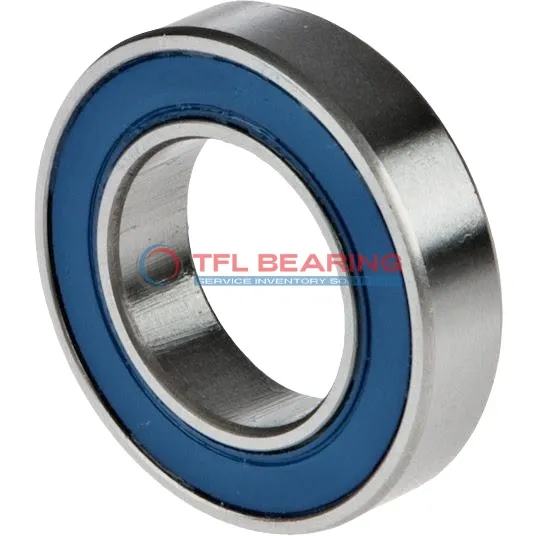

Single Row Deep Groove Ball Bearings 61907-2RS1

Single Row Deep Groove Ball Bearings 61907-2RS1

The 61907-2RS1 is a single-row deep groove ball bearing with a 35mm bore and 55mm outer diameter, built from sturdy chrome steel. It manages radial loads up to 2428 lbf and runs smoothly at speeds up to 7500 RPM.

Its sealed design keeps grease in and dirt out, reducing maintenance needs, while the stainless steel cage adds durability. The bearing operates well in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a reliable alternative for replacements. Perfect for electric motors or small machinery where space is limited but performance is key.

Weighing just 0.08kg, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it’s a safe choice for various applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 61907-2RS1
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 35 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 55 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 10 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Lubrication Grease
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 2428 lbf
  • Static Radial Load 1754 lbf
  • Max Speed 7500 rpm
  • Weight 0.08 kg
  • price（$） 19.305
Single Row Deep Groove Ball Bearings 61907-2RS1 dimension drawing
Download DWG Download PDF

Features

Why Choose 61907-2RS1 Bearing for Precision Tasks?

61907-2RS1 Bearing features a sealed design, protecting against dust and moisture for consistent performance.
Its chrome steel rings and balls provide reliable radial load support, with a dynamic capacity of 2428 lbf.

The stainless steel cage ensures smooth operation, even at speeds up to 7,500 rpm.
With a temperature range of -30° to 120°C, it performs well in various environments.

Grease lubrication reduces maintenance needs, making it a practical choice for long-term use.
The P6 tolerance class ensures precision, ideal for applications requiring tight tolerances.

Application

Common Applications of 61907-2RS1 Bearing
In industrial settings, 61907-2RS1 Bearing is commonly used in electric motors and pumps, where its sealed design keeps contaminants out. The chrome steel construction ensures durability even in demanding environments.

Where Is 61907-2RS1 Bearing Used?
You’ll often find 61907-2RS1 Bearing in automotive applications like alternators and water pumps, thanks to its reliable radial load handling. The grease lubrication helps maintain smooth operation over long periods.

Ideal for Precision: 61907-2RS1 Bearing
For medical devices such as dental drills, 61907-2RS1 Bearing offers quiet and precise performance. Its stainless steel cage adds an extra layer of corrosion resistance.

Automotive vs Industrial: Applications of 61907-2RS1 Bearing
In automotive systems, 61907-2RS1 Bearing handles high-speed rotations in gearboxes, while in industrial machinery, it supports conveyor rollers. The metric sizing makes it versatile for various equipment.

Practical Applications of 61907-2RS1 Bearing
In household appliances like washing machines, 61907-2RS1 Bearing reduces noise and vibration. Its sealed design is perfect for environments where dust and moisture are common.
