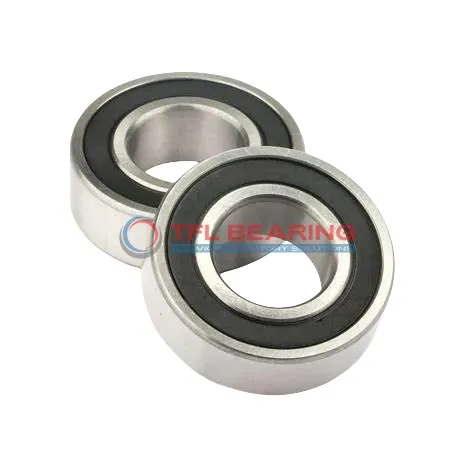

Single Row Deep Groove Ball Bearings 61906-2RS1/W64

Single Row Deep Groove Ball Bearings 61906-2RS1/W64

The 61906-2RS1/W64 is a compact single-row deep groove ball bearing, measuring 30mm by 47mm by 9mm. Made from durable chrome steel, it handles radial loads up to 1637 lbf and spins smoothly at speeds up to 19,000 RPM.

Its sealed design keeps dirt out and the solid oil lubrication ensures long-lasting performance with minimal maintenance. The bearing operates well in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for small motors, pumps, or appliances where reliability is key.

Weighing just 0.049kg, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 61906-2RS1/W64
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 47 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 9 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 1637 lbf
  • Static Radial Load 1023 lbf
  • Max Speed 19000 rpm
  • Weight 0.049 kg
  • price（$） 23.292
Single Row Deep Groove Ball Bearings 61906-2RS1/W64 dimension drawing
Download DWG Download PDF

Features

How Does 61906-2RS1/W64 Bearing Reduce Friction?

61906-2RS1/W64 Bearing features a single-row deep groove design, optimised for smooth radial load handling.
Its chrome steel construction ensures durability while reducing friction during operation.

The sealed design and solid oil lubrication keep contaminants out, maintaining performance over time.
With a maximum speed of 19,000 rpm, it offers reliable efficiency in various applications.

Its ABEC 1 tolerance class ensures consistent precision, suitable for general industrial use.
The bearing operates in temperatures from -30°C to 120°C, adapting to different working conditions.

Application

Industrial Uses of 61906-2RS1/W64 Bearing
This bearing is commonly used in conveyor systems and small electric motors, where its sealed design helps keep contaminants out. The solid oil lubrication ensures long service life even in dusty environments.

Where Is 61906-2RS1/W64 Bearing Used?
You’ll often find it in household appliances like washing machines, where its radial load capacity handles the spinning drum smoothly. The compact 30mm bore makes it ideal for space-constrained applications.

Built for Heavy-Duty Use: 61906-2RS1/W64 Bearing
In automotive alternators, this bearing’s chrome steel construction withstands constant vibration and high speeds. The ABEC 1 tolerance provides reliable performance without unnecessary precision costs.

Medical vs Industrial: Where 61906-2RS1/W64 Bearing Excels
While suitable for industrial pumps, its quiet operation also benefits medical devices like dental drills. The temperature range covers most clinical environments without special modifications.

Perfect Fit for Automation: 61906-2RS1/W64 Bearing
Robotic joint mechanisms benefit from its sealed protection against workshop debris. At 19,000 rpm max speed, it keeps automation lines running efficiently with minimal maintenance.
