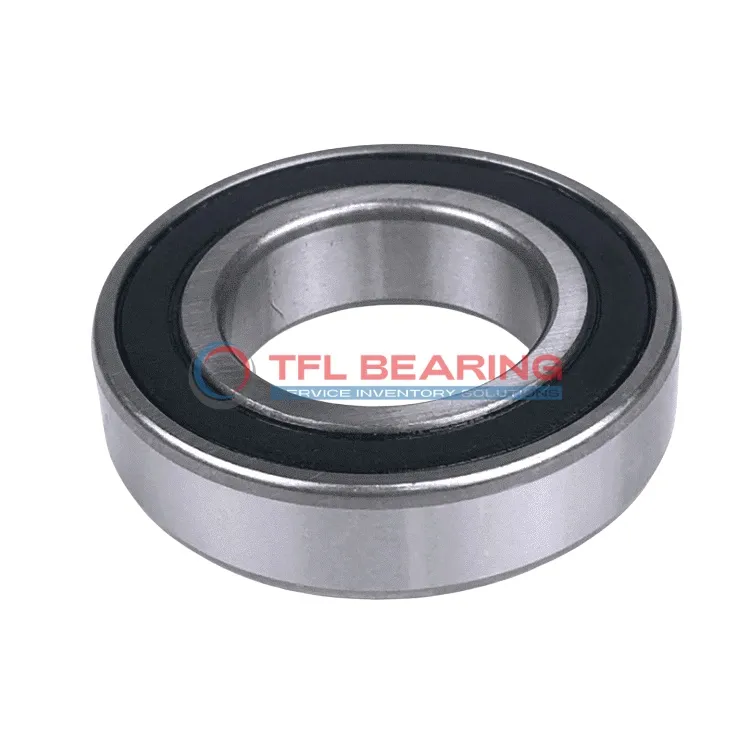

Single Row Deep Groove Ball Bearings 61904-2RS1/C3HGJN

Single Row Deep Groove Ball Bearings 61904-2RS1/C3HGJN

The 61904-2RS1/C3HGJN is a compact single-row deep groove ball bearing, measuring 20mm in bore and 37mm in outer diameter, with a width of just 9mm. Made from durable chrome steel, it handles radial loads up to 1432 lbf and spins smoothly at speeds up to 26,000 RPM.

Its sealed design keeps dirt out and lubrication in, making it low-maintenance for various applications. The C3 radial clearance ensures reliable performance under varying temperatures, from -30°C to 120°C.

This bearing is interchangeable with SKF models, offering a practical replacement option. Ideal for small electric motors, pumps, or appliances where space is limited but performance is key.

Weighing only 0.037kg, it’s lightweight yet robust. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 61904-2RS1/C3HGJN
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 20 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 37 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 9 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 1432 lbf
  • Static Radial Load 821 lbf
  • Max Speed 26000 rpm
  • Weight 0.037 kg
Single Row Deep Groove Ball Bearings 61904-2RS1/C3HGJN dimension drawing
Download DWG Download PDF

Features

Why Choose 61904-2RS1/C3HGJN Bearing for Precision Tasks?

61904-2RS1/C3HGJN Bearing features a sealed design, protecting against dust and moisture for consistent performance.
Its chrome steel construction ensures durability and resistance to wear in radial load applications.

The bearing’s C3 radial clearance allows for thermal expansion, making it suitable for varying temperatures.
With a maximum speed of 26,000 rpm, it delivers smooth operation in high-speed environments.

61904-2RS1/C3HGJN Bearing’s single row deep groove design provides reliable radial load support.
Its compact size (20 mm×37 mm×9 mm) makes it ideal for space-constrained applications.

Application

Common Applications of 61904-2RS1/C3HGJN Bearing
61904-2RS1/C3HGJN Bearing works well in small electric motors, thanks to its sealed design that keeps out dust and moisture. Its compact size makes it ideal for tight spaces in household appliances like washing machines.

In automotive applications, 61904-2RS1/C3HGJN Bearing handles radial loads smoothly in components like alternators and water pumps. The C3 clearance ensures reliable performance even with temperature fluctuations.

For industrial machinery, 61904-2RS1/C3HGJN Bearing’s chrome steel construction offers durability in conveyor systems and gearboxes. The sealed design reduces maintenance needs, making it a cost-effective choice.

Where Is 61904-2RS1/C3HGJN Bearing Used?
You’ll often find 61904-2RS1/C3HGJN Bearing in office equipment like printers, where its smooth operation reduces noise. The sealed design also helps prolong bearing life in dusty environments.

In robotics, 61904-2RS1/C3HGJN Bearing supports precise movements in joints and actuators. Its high-speed capability ensures consistent performance in automated systems.

Built for Versatility: 61904-2RS1/C3HGJN Bearing
61904-2RS1/C3HGJN Bearing suits both light-duty and medium-load applications, from power tools to small fans. The chrome steel cage adds strength without adding unnecessary weight.

For medical devices like dental handpieces, 61904-2RS1/C3HGJN Bearing provides quiet and reliable rotation. Its temperature range allows for sterilisation without compromising performance.
