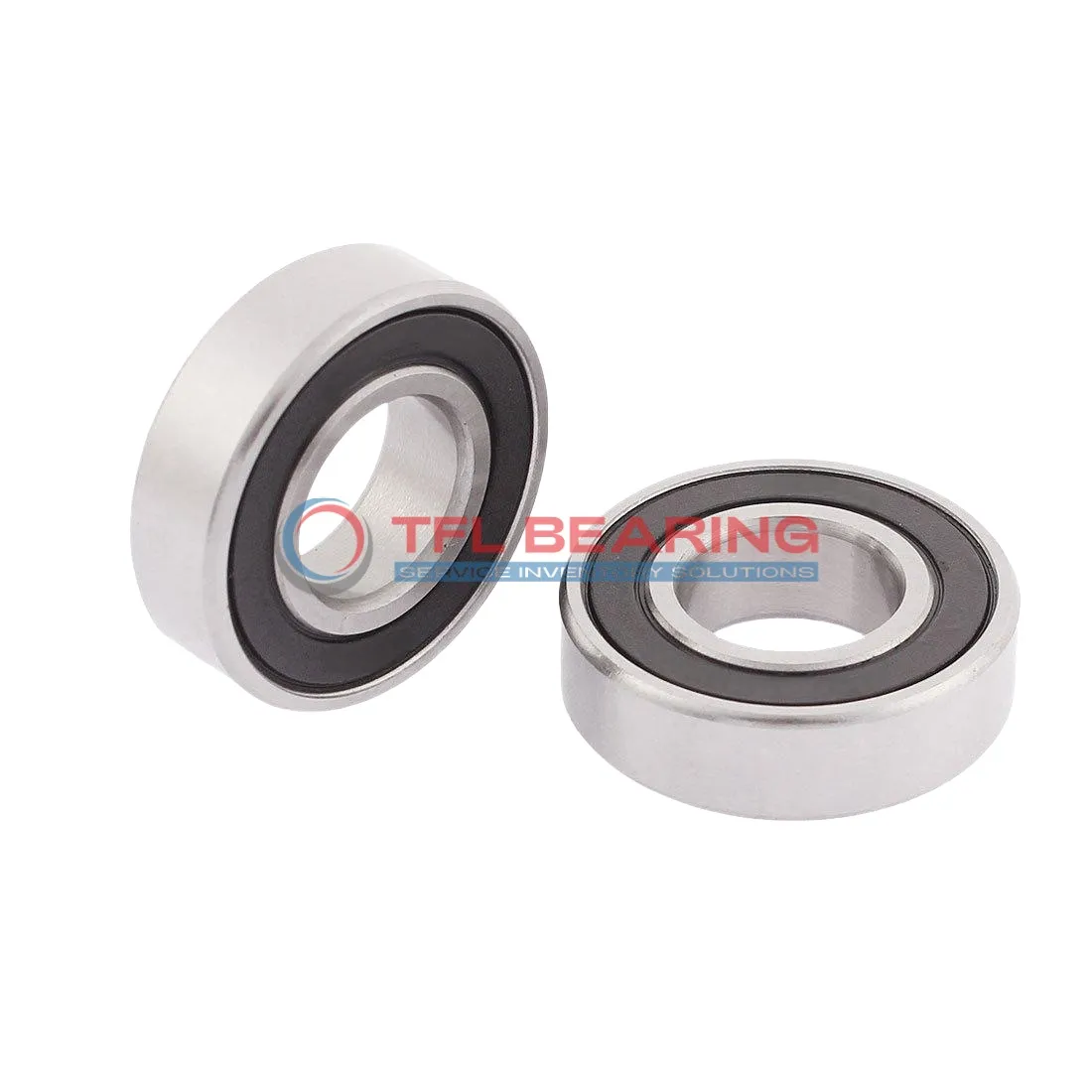

Single Row Deep Groove Ball Bearings 619/8-2RS1

Single Row Deep Groove Ball Bearings 619/8-2RS1

The 619/8-2RS1 is a compact single-row deep groove ball bearing, measuring 8mm in bore and 19mm in outer diameter, with a width of just 6mm. Made from chrome steel, it’s built to handle radial loads up to 328 lbf and spins smoothly at speeds up to 24,000 RPM.

Its sealed design keeps grease in and dirt out, making it low-maintenance and durable. The stainless steel cage adds strength, ensuring reliable performance in various conditions.

This bearing works well in temperatures from -30°C to 120°C, suitable for small motors or precision instruments. Weighing only 0.0071kg, it’s lightweight yet sturdy for its size.

Compliant with RoHS and REACH standards, it’s a safe and practical choice for replacements, especially where space is limited.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 619/8-2RS1
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 8 mm
  • Bore Dia Tolerance -0.007mm to 0
  • Outer Dia 19 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 6 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Lubrication Grease
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 328 lbf
  • Static Radial Load 105 lbf
  • Max Speed 24000 rpm
  • Weight 0.0071 kg
  • price（$） 5.499
Single Row Deep Groove Ball Bearings 619/8-2RS1 dimension drawing
Download DWG Download PDF

Features

Why Choose 619/8-2RS1 Bearing for Precision Tasks?

619/8-2RS1 Bearing features a sealed design, protecting against dust and moisture for consistent performance.
Its chrome steel construction ensures durability and resistance to wear in radial load applications.

The P6 tolerance class of 619/8-2RS1 Bearing guarantees high precision, making it suitable for delicate machinery.
With a maximum speed of 24,000 rpm, it delivers smooth operation without compromising reliability.

619/8-2RS1 Bearing’s grease lubrication reduces maintenance needs, ensuring long-term efficiency.
Its compact size (8 mm×19 mm×6 mm) makes it ideal for space-constrained applications.

Application

Common Applications of 619/8-2RS1 Bearing
In industrial settings, 619/8-2RS1 Bearing is commonly used in small motors and pumps, where its sealed design helps keep contaminants out. The chrome steel construction ensures durability in demanding environments.

Where Is 619/8-2RS1 Bearing Used?
You’ll often find 619/8-2RS1 Bearing in automotive applications like electric window mechanisms or small gearboxes. Its compact size and radial load capacity make it a reliable choice for tight spaces.

Built for Heavy-Duty Use: 619/8-2RS1 Bearing
For household appliances like washing machines or fans, 619/8-2RS1 Bearing provides smooth, quiet operation. The grease lubrication and sealed design mean it requires minimal maintenance over time.

Light-Duty vs Heavy-Duty: Best Uses for 619/8-2RS1 Bearing
In light-duty applications such as office printers or small power tools, 619/8-2RS1 Bearing offers consistent performance. For heavier tasks, its robust design still holds up well in conveyor systems or industrial fans.

Practical Applications of 619/8-2RS1 Bearing
Medical devices like dental drills benefit from 619/8-2RS1 Bearing’s precision and reliability. The stainless steel cage ensures long-lasting performance even with frequent use.
