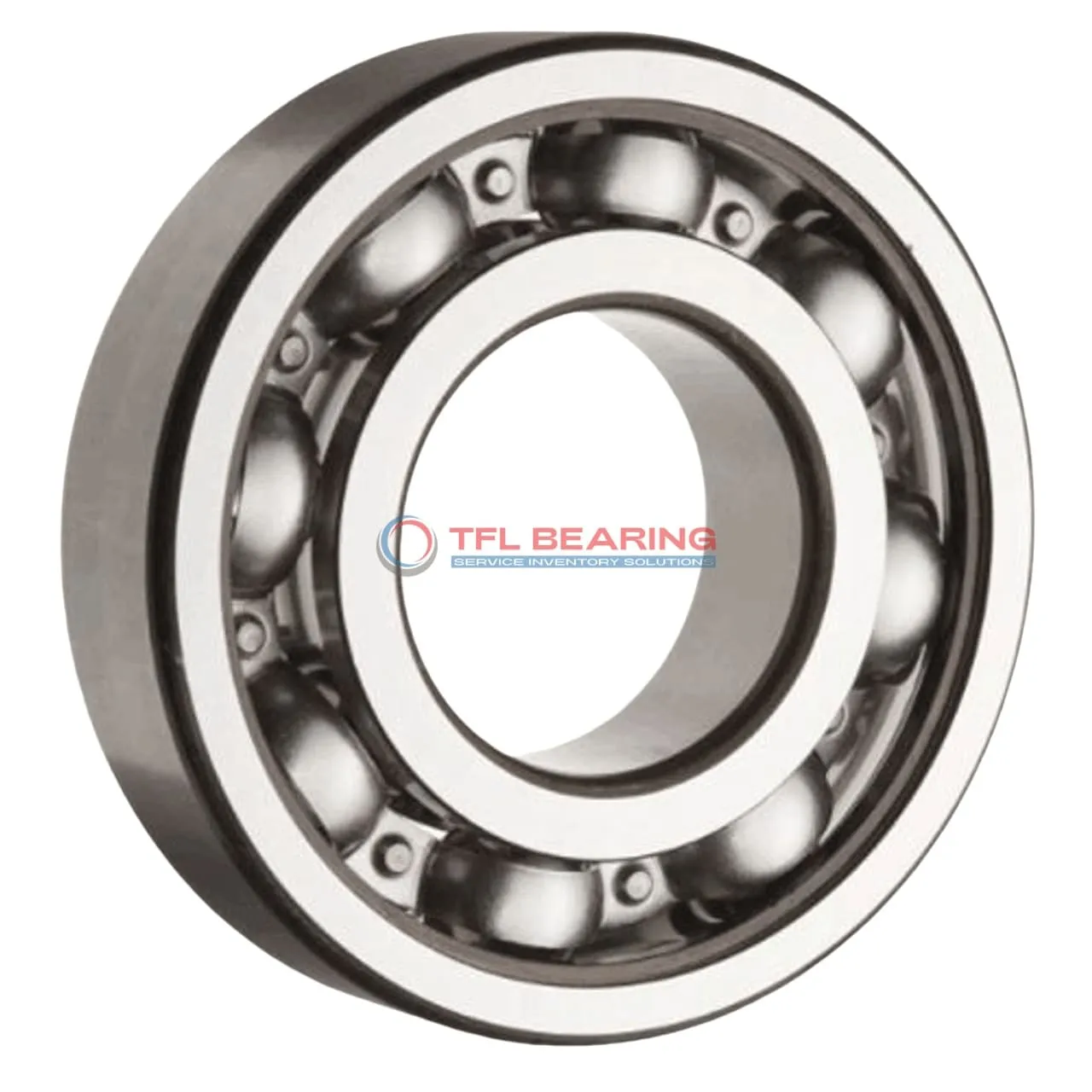

Single Row Deep Groove Ball Bearings 61888 MA/C5

Single Row Deep Groove Ball Bearings 61888 MA/C5

The 61888 MA/C5 is a single row deep groove ball bearing with a 440mm bore and 540mm outer diameter, crafted from sturdy chrome steel. It supports radial loads up to 57326 lbf and operates smoothly at speeds up to 1800 RPM.

Its open design and machined metal cage ensure durability and easy maintenance. The bearing is suitable for temperatures ranging from -30°C to 120°C, making it versatile for various conditions.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Ideal for heavy-duty applications like industrial machinery or large equipment where radial loads are predominant.

Weighing 22.5kg, it’s built to handle demanding environments while complying with RoHS and REACH standards for safety and environmental care.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 61888 MA/C5
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C5
  • Bore Dia 440 mm
  • Bore Dia Tolerance -0.035mm to 0
  • Outer Dia 540 mm
  • Outer Dia Tolerance -0.038mm to 0
  • Width 46 mm
  • Width Tolerance -0.45mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Machined metal
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 57326 lbf
  • Static Radial Load 98916 lbf
  • Max Speed 1800 rpm
  • Weight 22.5 kg
Single Row Deep Groove Ball Bearings 61888 MA/C5 dimension drawing
Download DWG Download PDF

Features

Performance Features of 61888 MA/C5 Bearing

61888 MA/C5 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 57,326 lbf, making it suitable for heavy-duty applications.

The machined metal cage ensures precise ball alignment, reducing friction and wear.
With a maximum speed of 1,800 rpm, it delivers reliable performance in various conditions.

61888 MA/C5 Bearing operates efficiently in temperatures from -30°C to 120°C.
Its open design allows for easy lubrication, ensuring smooth operation over time.

Application

Industrial Uses of 61888 MA/C5 Bearing
This bearing is commonly used in large industrial machinery, such as heavy-duty pumps and gearboxes, where its robust construction handles significant radial loads. The open design and C5 clearance make it suitable for applications with thermal expansion needs.

Where Is 61888 MA/C5 Bearing Used?
You’ll often find 61888 MA/C5 Bearing in wind turbines and mining equipment, thanks to its ability to withstand high dynamic loads. Its machined metal cage ensures stability even in demanding environments.

Built for Heavy-Duty Use: 61888 MA/C5 Bearing
Ideal for large-scale conveyor systems, this bearing’s chrome steel rings and balls offer durability under continuous operation. The wide temperature range also makes it versatile for various industrial settings.

Automotive vs Aerospace: Applications of 61888 MA/C5 Bearing
In automotive applications, 61888 MA/C5 Bearing supports large drivetrain components, while in aerospace, it’s used in auxiliary systems requiring precision. Its metric sizing ensures compatibility across industries.

Perfect Fit for Automation: 61888 MA/C5 Bearing
This bearing works well in automated production lines, where its high load capacity and smooth operation reduce downtime. The ABEC 1 tolerance ensures reliable performance without over-engineering.
