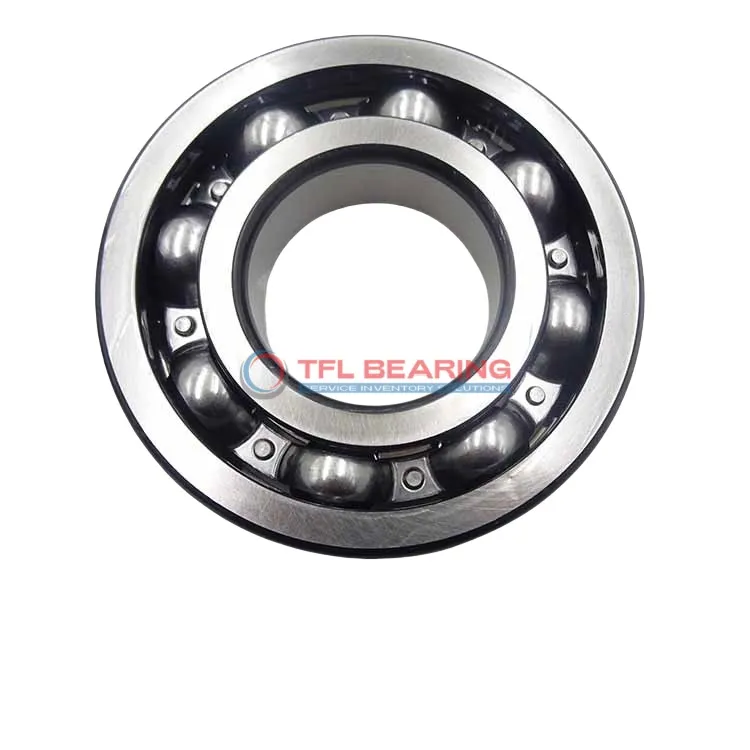

Single Row Deep Groove Ball Bearings 61834/W64

Single Row Deep Groove Ball Bearings 61834/W64

The 61834/W64 is a single-row deep groove ball bearing with a 170mm bore and 215mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 13893 lbf and operates smoothly at speeds up to 3600 RPM.

Its open design and solid oil lubrication ensure easy maintenance and consistent performance. The bearing handles temperatures from -30°C to 120°C, making it versatile for various environments.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Suitable for applications like electric motors or pumps where radial loads are common.

Weighing 1.63kg, it balances durability with practicality. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 61834/W64
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 170 mm
  • Bore Dia Tolerance -0.018mm to 0
  • Outer Dia 215 mm
  • Outer Dia Tolerance -0.020mm to 0
  • Width 22 mm
  • Width Tolerance -0.25mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 13893 lbf
  • Static Radial Load 17535 lbf
  • Max Speed 3600 rpm
  • Weight 1.63 kg
Single Row Deep Groove Ball Bearings 61834/W64 dimension drawing
Download DWG Download PDF

Features

Performance Features of 61834/W64 Bearing

61834/W64 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 13893 lbf, ensuring reliable performance in various applications.

The solid oil lubrication in 61834/W64 Bearing reduces maintenance needs while extending service life.
With a maximum speed of 3,600 rpm, it balances durability and efficiency for smooth operation.

61834/W64 Bearing operates effectively in temperatures ranging from -30°C to 120°C.
Its open design and ABEC 1 tolerance class make it suitable for precision tasks.

Application

Common Applications of 61834/W64 Bearing
61834/W64 Bearing is widely used in industrial machinery, such as large conveyor systems and heavy-duty pumps, where its radial load capacity ensures reliable performance. The solid oil lubrication reduces maintenance needs, making it suitable for continuous operation environments.

In automotive applications, 61834/W64 Bearing can be found in wheel hubs and transmission systems, providing smooth rotation under radial loads. Its chrome steel construction offers durability, even in demanding driving conditions.

For automation equipment, 61834/W64 Bearing supports robotic arms and assembly line mechanisms, where precision and longevity are key. The open design allows for easy inspection and lubrication, ensuring consistent performance over time.

In household appliances like washing machines, 61834/W64 Bearing handles high radial loads while maintaining quiet operation. The temperature range of -30°C to 120°C makes it adaptable to various climates and usage scenarios.
