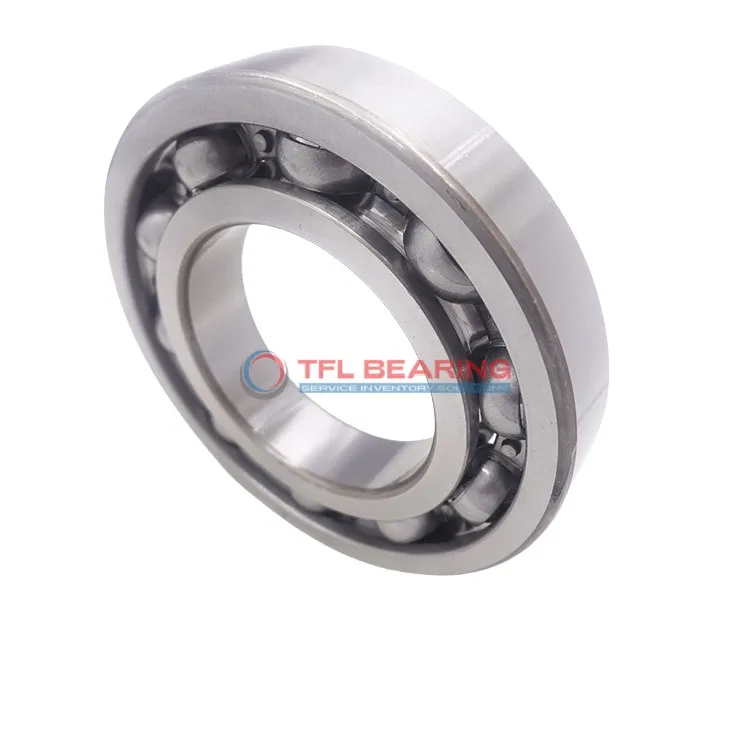

Single Row Deep Groove Ball Bearings 61832

Single Row Deep Groove Ball Bearings 61832

The 61832 is a single-row deep groove ball bearing with a 160mm bore and 200mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 11106 lbf and operates smoothly at speeds up to 4000 RPM.

Its open design simplifies maintenance, while the stainless steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for applications like electric motors or pumps where radial loads are predominant.

Weighing 1.25kg, it balances strength with manageable size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 61832
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 160 mm
  • Bore Dia Tolerance -0.018mm to 0
  • Outer Dia 200 mm
  • Outer Dia Tolerance -0.020mm to 0
  • Width 20 mm
  • Width Tolerance -0.25mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 11106 lbf
  • Static Radial Load 14388 lbf
  • Max Speed 4000 rpm
  • Weight 1.25 kg
  • price（$） 69.723
Single Row Deep Groove Ball Bearings 61832 dimension drawing
Download DWG Download PDF

Features

Performance Features of 61832 Bearing

61832 Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 11106 lbf.
Its single row deep groove design ensures smooth operation and reliable performance in various applications.

The stainless steel cage maintains ball alignment, reducing friction and extending the bearing’s lifespan.
With a maximum speed of 4,000 rpm, it balances efficiency and durability for industrial use.

61832 Bearing operates in temperatures from -30° to 120°C, making it suitable for diverse environments.
Its P6 tolerance class ensures precision and consistency in performance.

The open seal design allows for easy maintenance and lubrication adjustments when needed.
Weighing just 1.25 kg, it provides strength without excessive bulk.

Application

Industrial Uses of 61832 Bearing
61832 Bearing is commonly used in heavy machinery like conveyor systems and industrial fans, where its single-row design handles radial loads efficiently. The chrome steel construction ensures durability in demanding environments.

Where Is 61832 Bearing Used?
You’ll find 61832 Bearing in automotive applications such as electric motors and pumps, thanks to its reliable performance under high radial loads. Its metric sizing makes it a versatile choice for various vehicle models.

Perfect Fit for Automation: 61832 Bearing
In robotics and automated systems, 61832 Bearing supports smooth motion in components like robotic arms. The open seal design allows for easy lubrication, extending its service life.

Medical vs Industrial: Where 61832 Bearing Excels
While 61832 Bearing performs well in industrial settings, it’s also suitable for medical devices like diagnostic equipment. The stainless steel cage adds corrosion resistance, ideal for sterile environments.

Essential Roles of 61832 Bearing
For household appliances like washing machines, 61832 Bearing ensures quiet and efficient operation. Its wide temperature range makes it adaptable to different usage conditions.
