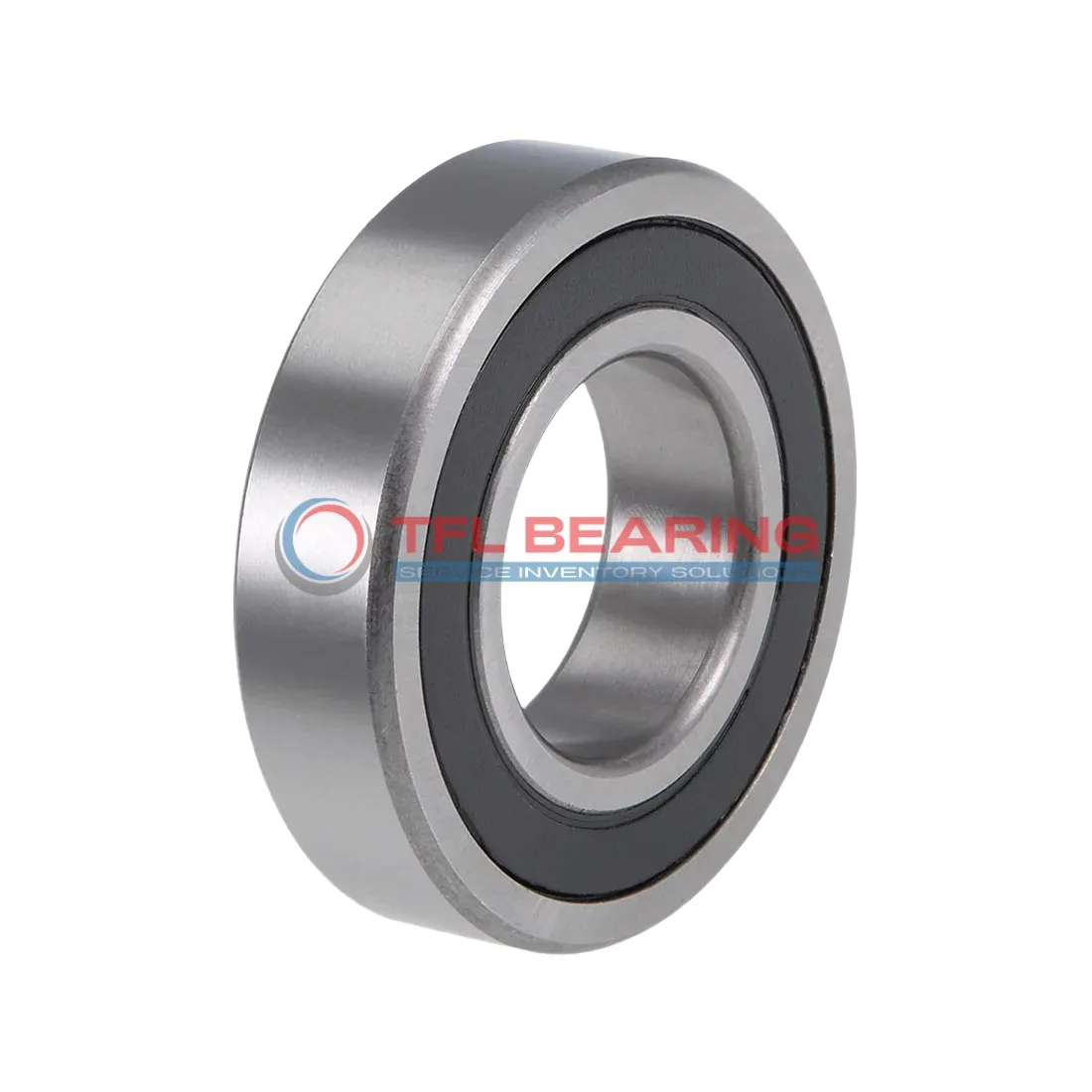

Single Row Deep Groove Ball Bearings 61824-2RS1

Single Row Deep Groove Ball Bearings 61824-2RS1

The 61824-2RS1 is a sealed single row deep groove ball bearing with a 120mm bore and 150mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 6542 lbf and runs smoothly at speeds up to 2400 RPM.

Its sealed design keeps grease in and dirt out, making it low-maintenance, while the stainless steel cage adds durability. The bearing operates well in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a reliable replacement option. It’s a great fit for applications like electric motors or small machinery where radial loads are common.

Weighing 0.53kg, it’s a compact yet robust choice. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 61824-2RS1
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 120 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 150 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 16 mm
  • Width Tolerance -0.2mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Lubrication Grease
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 6542 lbf
  • Static Radial Load 6295 lbf
  • Max Speed 2400 rpm
  • Weight 0.53 kg
  • price（$） 139.482
Single Row Deep Groove Ball Bearings 61824-2RS1 dimension drawing
Download DWG Download PDF

Features

How Does 61824-2RS1 Bearing Reduce Friction?

61824-2RS1 Bearing features a sealed design with grease lubrication, ensuring smooth operation and reduced friction.
The chrome steel construction enhances durability while maintaining consistent performance under radial loads.

Its dynamic radial load capacity of 6542 lbf makes it suitable for various applications.
The stainless steel cage helps maintain ball alignment, further minimising wear over time.

With a maximum speed of 2,400 rpm, it balances efficiency and reliability.
The temperature range of -30° to 120°C ensures adaptability in different working conditions.

Application

Industrial Uses of 61824-2RS1 Bearing
61824-2RS1 Bearing is commonly used in industrial machinery like pumps and electric motors, where its sealed design helps keep contaminants out. The chrome steel construction ensures durability in demanding environments.

Where Is 61824-2RS1 Bearing Used?
In automotive applications, 61824-2RS1 Bearing fits well in wheel hubs and alternators, providing reliable radial load support. Its grease lubrication reduces maintenance needs for long-term performance.

Perfect Fit for Automation: 61824-2RS1 Bearing
For automated systems, 61824-2RS1 Bearing works smoothly in conveyor belts and robotic arms, thanks to its precise P6 tolerance. The stainless steel cage adds extra resistance to wear.

Medical vs Industrial: Where 61824-2RS1 Bearing Excels
In medical devices like centrifuges, 61824-2RS1 Bearing offers quiet and stable operation. Its temperature range also makes it suitable for industrial ovens and dryers.

Essential Roles of 61824-2RS1 Bearing
Around the home, 61824-2RS1 Bearing can be found in appliances like washing machines, where its sealed design protects against moisture. The radial load capacity ensures smooth spinning cycles.
