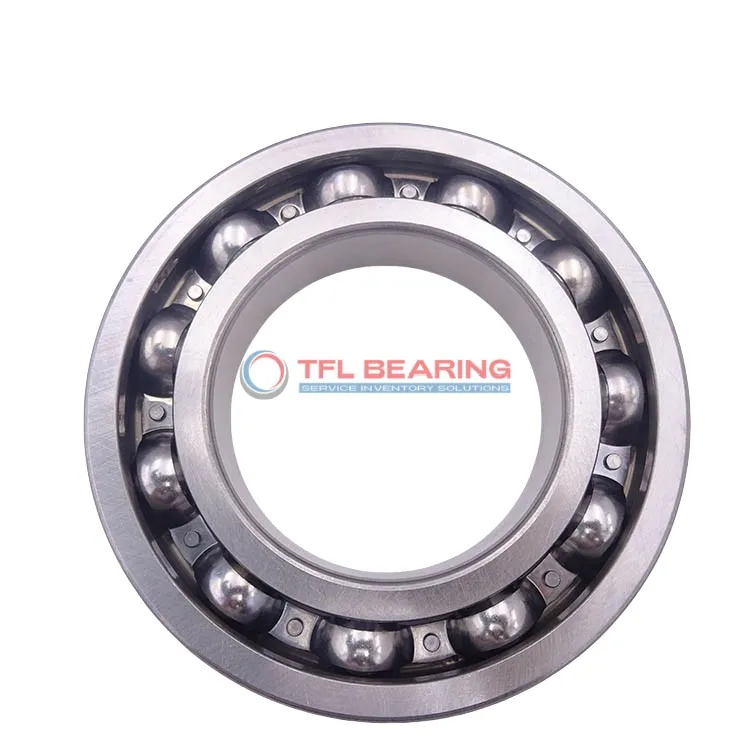

Single Row Deep Groove Ball Bearings 61822

Single Row Deep Groove Ball Bearings 61822

The 61822 is a single-row deep groove ball bearing with a 110mm bore and 140mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 6317 lbf and runs smoothly at speeds up to 5600 RPM.

Its open design simplifies maintenance, while the stainless steel cage enhances durability. The bearing operates reliably in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for applications like electric motors or pumps where radial loads are common.

Weighing 0.47kg, it balances strength and compactness. Compliant with RoHS and REACH standards for safe usage.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 61822
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 110 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 140 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 16 mm
  • Width Tolerance -0.2mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 6317 lbf
  • Static Radial Load 5845 lbf
  • Max Speed 5600 rpm
  • Weight 0.47 kg
  • price（$） 93.42
Single Row Deep Groove Ball Bearings 61822 dimension drawing
Download DWG Download PDF

Features

Performance Features of 61822 Bearing

61822 Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 6317 lbf.
Its stainless steel cage ensures smooth operation, reducing friction and wear over time.

The single-row deep groove design enhances stability, making it suitable for high-speed applications.
With a maximum speed of 5,600 rpm, it balances performance and durability effortlessly.

61822 Bearing operates efficiently in temperatures ranging from -30° to 120°C.
Its open seal type allows for easy maintenance, reducing long-term operational costs.

Application

Industrial Uses of 61822 Bearing
61822 Bearing is commonly used in industrial settings, such as conveyor systems and machine tools, where its radial load capacity ensures smooth operation. The open design allows for easy lubrication, making it suitable for high-speed applications.

In automotive applications, 61822 Bearing fits well in components like electric motors and pumps, thanks to its durable chrome steel construction. Its metric sizing ensures compatibility with a variety of vehicle models.

For automation systems, 61822 Bearing provides reliable performance in robotic arms and assembly lines. The stainless steel cage enhances its longevity, even in continuous operation.

Where Is 61822 Bearing Used?
You’ll often find 61822 Bearing in household appliances like washing machines and fans, where its compact size and radial load handling are ideal. The temperature range also makes it versatile for different environments.

In medical equipment, 61822 Bearing offers consistent performance in devices like lab centrifuges. Its precision engineering ensures minimal vibration, which is crucial for sensitive instruments.

Built for Heavy-Duty Use: 61822 Bearing
61822 Bearing excels in construction machinery, where its robust design handles heavy radial loads effortlessly. The P6 tolerance class ensures precise alignment in demanding conditions.

For agricultural equipment, 61822 Bearing’s durability makes it a reliable choice for tractors and harvesters. Its resistance to wear ensures long service life, even in dusty environments.

Automotive vs Aerospace: Applications of 61822 Bearing
In automotive systems, 61822 Bearing is often used in transmissions and wheel hubs, where its load capacity is essential. The aerospace industry values its precision for auxiliary systems.

For general machinery, 61822 Bearing’s versatility shines in pumps and compressors. Its high-speed capability and temperature resistance make it adaptable to various industrial needs.
