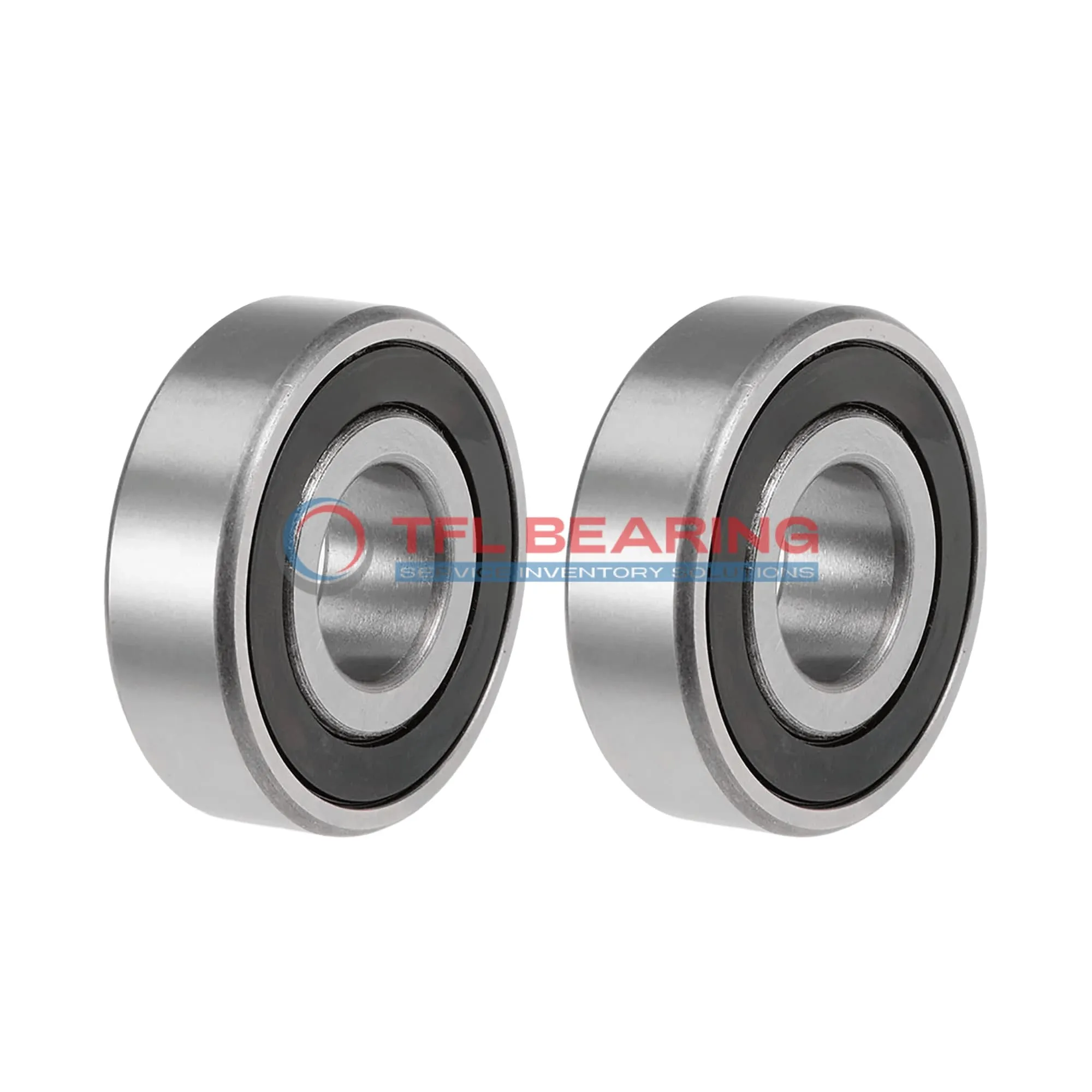

Single Row Deep Groove Ball Bearings 61818-2RS1

Single Row Deep Groove Ball Bearings 61818-2RS1

The 61818-2RS1 is a compact single-row deep groove ball bearing, measuring 90mm by 115mm by 13mm, crafted from durable chrome steel. It handles radial loads up to 4384 lbf and operates smoothly at speeds up to 3200 RPM.

Its sealed design keeps grease in and contaminants out, making it low-maintenance for long-term use. The stainless steel cage adds strength and ensures reliable performance in various conditions.

This bearing works well in temperatures from -30°C to 120°C, suitable for industrial or automotive applications. It’s interchangeable with SKF models, offering a practical replacement option.

Weighing 0.29kg, it’s lightweight yet sturdy for its size. Compliant with RoHS and REACH standards, it’s a safe and dependable choice for radial load requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 61818-2RS1
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 90 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 115 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 13 mm
  • Width Tolerance -0.2mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Lubrication Grease
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 4384 lbf
  • Static Radial Load 3822 lbf
  • Max Speed 3200 rpm
  • Weight 0.29 kg
  • price（$） 95.769
Single Row Deep Groove Ball Bearings 61818-2RS1 dimension drawing
Download DWG Download PDF

Features

How Does 61818-2RS1 Bearing Reduce Friction?

61818-2RS1 Bearing features a single-row deep groove design, optimised for smooth radial load distribution.
The sealed construction and grease lubrication minimise friction, enhancing operational efficiency.

Chrome steel rings and balls in 61818-2RS1 Bearing ensure durability while maintaining low wear rates.
Its P6 tolerance class guarantees precise alignment, further reducing friction during rotation.

With a maximum speed of 3,200 rpm, 61818-2RS1 Bearing balances performance and energy efficiency.
The stainless steel cage maintains ball positioning, contributing to consistent, low-friction operation.

61818-2RS1 Bearing operates in temperatures from -30° to 120°C, maintaining its friction-reducing properties.
Its sealed design also protects against contaminants that could increase wear over time.

Application

Common Applications of 61818-2RS1 Bearing
61818-2RS1 Bearing is widely used in industrial machinery, such as pumps and electric motors, where its sealed design helps keep contaminants out. The chrome steel construction ensures durability even in demanding environments.

In automotive applications, 61818-2RS1 Bearing is often found in wheel hubs and transmission systems, providing reliable radial load support. Its grease lubrication reduces maintenance needs, making it a cost-effective choice.

For household appliances like washing machines, 61818-2RS1 Bearing offers smooth and quiet operation. The stainless steel cage adds to its longevity, even with frequent use.

In automation equipment, 61818-2RS1 Bearing supports precise movements in conveyor belts and robotic arms. Its P6 tolerance class ensures consistent performance in high-precision tasks.
