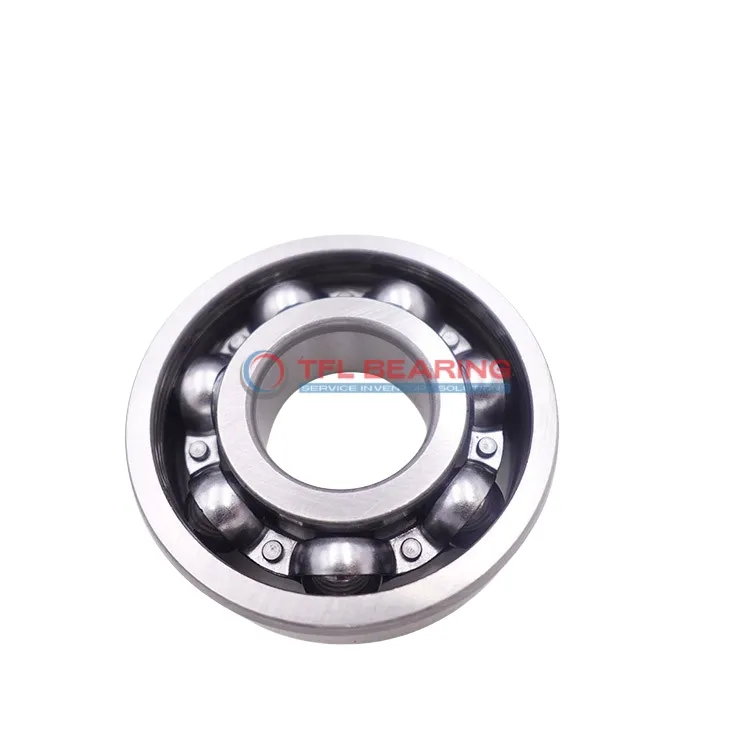

Single Row Deep Groove Ball Bearings 61817/W64

Single Row Deep Groove Ball Bearings 61817/W64

The 61817/W64 is a single-row deep groove ball bearing with an 85mm bore and 110mm outer diameter, crafted from sturdy chrome steel for reliable performance. It handles radial loads up to 4384 lbf and operates smoothly at speeds up to 7500 RPM.

Its open design and solid oil lubrication ensure low maintenance, while the chrome steel cage enhances durability. The bearing works efficiently in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like electric motors or pumps where radial loads are common.

Weighing just 0.26kg, it’s lightweight yet robust. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 61817/W64
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 85 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 110 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 13 mm
  • Width Tolerance -0.2mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 4384 lbf
  • Static Radial Load 3732 lbf
  • Max Speed 7500 rpm
  • Weight 0.26 kg
Single Row Deep Groove Ball Bearings 61817/W64 dimension drawing
Download DWG Download PDF

Features

Performance Features of 61817/W64 Bearing

61817/W64 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 4384 lbf, ensuring reliable performance in various applications.

The solid oil lubrication reduces friction, enhancing smooth operation and extending service life.
With a maximum speed of 7,500 rpm, it balances durability and efficiency for consistent performance.

61817/W64 Bearing operates effectively in temperatures from -30°C to 120°C, suitable for diverse environments.
Its open design simplifies maintenance, making it a practical choice for industrial use.

Application

Key Fields for 61817/W64 Bearing
In industrial settings, 61817/W64 Bearing is commonly used in electric motors and pumps, where its radial load capacity ensures reliable performance. The solid oil lubrication extends service life, reducing maintenance needs.

Where Is 61817/W64 Bearing Used?
You’ll often find 61817/W64 Bearing in automotive applications like alternators and cooling fans, thanks to its smooth operation at high speeds. Its chrome steel construction handles heat well, making it suitable for engine compartments.

Designed for Versatility: 61817/W64 Bearing
This bearing fits well in household appliances like washing machines, where its compact size and durability are key. The open design allows for easy cleaning, ideal for dusty environments.

Medical vs Industrial: Where 61817/W64 Bearing Excels
While 61817/W64 Bearing works in medical devices like centrifuges, it’s more popular in industrial gear due to its robust build. The ABEC 1 tolerance strikes a balance between precision and cost-effectiveness.
