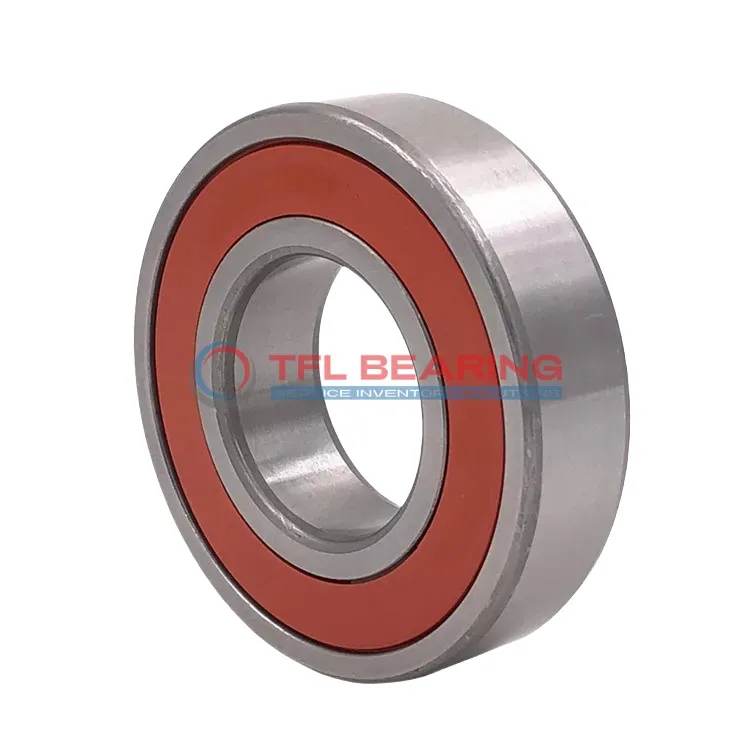

Single Row Deep Groove Ball Bearings 61814-2RZ/W64

Single Row Deep Groove Ball Bearings 61814-2RZ/W64

The 61814-2RZ/W64 is a compact single-row deep groove ball bearing, measuring 70mm by 90mm with a slim 10mm width. Made from chrome steel, it’s built to handle radial loads up to 2788 lbf and speeds reaching 9000 RPM.

Its sealed design and solid oil lubrication keep dirt out and maintenance low, ideal for dusty or hard-to-reach spots. The bearing operates smoothly in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a reliable alternative for replacements. Perfect for small electric motors or appliances where space is tight but performance matters.

Weighing just 0.14kg, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards for safe, eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 61814-2RZ/W64
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 70 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 90 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 10 mm
  • Width Tolerance -0.15mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 2788 lbf
  • Static Radial Load 2967 lbf
  • Max Speed 9000 rpm
  • Weight 0.14 kg
Single Row Deep Groove Ball Bearings 61814-2RZ/W64 dimension drawing
Download DWG Download PDF

Features

Performance Features of 61814-2RZ/W64 Bearing

61814-2RZ/W64 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 2788 lbf, ensuring reliable performance in various applications.

The sealed design of 61814-2RZ/W64 Bearing keeps contaminants out, enhancing its durability.
Solid oil lubrication ensures smooth operation and reduces maintenance needs.

With a maximum speed of 9,000 rpm, 61814-2RZ/W64 Bearing balances efficiency and longevity.
Its temperature range of -30°C to 120°C makes it suitable for diverse operating conditions.

Application

Industrial Uses of 61814-2RZ/W64 Bearing
61814-2RZ/W64 Bearing is commonly used in conveyor systems, where its sealed design keeps out dust and debris. The solid oil lubrication ensures long service life even in demanding environments.

In automotive applications, 61814-2RZ/W64 Bearing fits well in electric motors and small gearboxes. Its compact size and radial load capacity make it a reliable choice for tight spaces.

For home appliances like washing machines, 61814-2RZ/W64 Bearing provides quiet and smooth operation. The chrome steel construction offers durability against daily wear and tear.

Where Is 61814-2RZ/W64 Bearing Used?
You’ll often find 61814-2RZ/W64 Bearing in industrial fans, where its sealed design protects against contaminants. The solid oil lubrication reduces maintenance needs significantly.

In robotics, 61814-2RZ/W64 Bearing works well in joint mechanisms due to its radial load handling. The compact dimensions make it ideal for precision movements.

Built for Heavy-Duty Use: 61814-2RZ/W64 Bearing
61814-2RZ/W64 Bearing handles radial loads efficiently in machinery like pumps and compressors. Its chrome steel rings and balls ensure consistent performance under stress.

In agricultural equipment, 61814-2RZ/W64 Bearing withstands harsh conditions thanks to its sealed design. The solid oil lubrication keeps it running smoothly in dusty fields.

Automotive vs Industrial: Applications of 61814-2RZ/W64 Bearing
In cars, 61814-2RZ/W64 Bearing is often used in alternators and small transmissions. Its sealed construction prevents grease leakage and contamination.

For factory machinery, 61814-2RZ/W64 Bearing excels in spindle drives and small motors. The solid oil lubrication ensures reliability during continuous operation.
